TELEMATICS  TELEMATICS SYSTEM(for TOYOTA Connect)  B15C111  GNSS Antenna Circuit Short to Ground  B15C113  GNSS Antenna Circuit Open


DESCRIPTION

These DTCs are stored when a malfunction occurs in the navigation antenna assembly.

DTC No. Detection Item DTC Detection Condition Trouble Area
B15C111 GNSS Antenna Circuit Short to Ground Current to the telephone antenna assembly is lower than the malfunction threshold for 10 seconds or more when the ignition switch is ON
(Short circuit)
·

Telematics transceiver

·

Navigation antenna assembly

·

Antenna cord sub-assembly


B15C113 GNSS Antenna Circuit Open Current to the telephone antenna assembly is higher than the malfunction threshold for 10 seconds or more when the ignition switch is ON
(Open circuit)
·

Telematics transceiver

·

Navigation antenna assembly

·

Antenna cord sub-assembly



WIRING DIAGRAM

E360069E81
0.125,1.219 2.25,1.469 2.125,0.25 10 false Navigation Antenna Assembly 0.125,1.042 0.448,1.25 0.323,0.208 10 false D 5.646,0.969 5.969,1.177 0.323,0.208 10 false B 5.646,1.167 7.135,1.479 1.49,0.313 10 false Telematics Transceiver 3.604,0.719 3.854,0.927 0.25,0.208 10 false * 0.854,2.281 3.063,2.573 2.208,0.292 10 false *: Antenna Cord Sub-assembly 1.135,0.438 1.385,0.646 0.25,0.208 10 false 3 5.927,0.427 6.177,0.635 0.25,0.208 10 false 1

CAUTION / NOTICE / HINT

NOTICE:
·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Telematics System.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM (for TOYOTA Connect)>PRECAUTION

·

When replacing the telematics transceiver, make sure to replace it with a new one.

·

Before replacing the telematics transceiver, refer to Service Bulletin.



PROCEDURE

1.CHECK DTC
a.

Turn the ignition switch to ON and wait for 10 seconds or more.


b.

Turn the GTS on.


c.

Clear the DTCs.

Body Electrical > Telematics > Clear DTCs
50002 459

d.

Check for DTCs and check that no DTCs are output.

Body Electrical > Telematics > Trouble Codes
50001 459
OK:

No DTCs are output.



Result:
Proceed to
OK
NG



OK

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

2.INSPECT ANTENNA CORD SUB-ASSEMBLY
2.INSPECT ANTENNA CORD SUB-ASSEMBLY
a.
E334514C65
0.656,1.031 1.031,1.281 0.375,0.25 1.896,0.875 2.354,0.385 true 0.792,1.073 1.104,1.271 0.313,0.198 10 false D 2.396,0.281 2.708,0.479 0.313,0.198 10 false 3a 0.146,0.125 0.458,0.323 0.313,0.198 10 false *a
*a Component without harness connected
(Antenna Cord Sub-assembly)


E418543C30

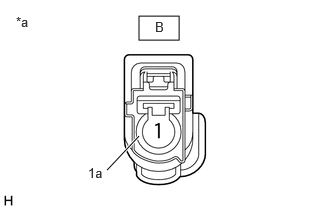

1.448,0.167 1.865,0.417 0.417,0.25 1.115,1.771 1.448,1.417 true 1.615,0.198 1.771,0.396 0.156,0.198 10 false B 0.917,1.719 1.25,1.917 0.333,0.198 10 false 1a 0.167,0.146 0.365,0.323 0.198,0.177 10 false *a
*a Component without harness connected
(Antenna Cord Sub-assembly)


Disconnect the antenna connector from the navigation antenna assembly.


b.

Disconnect the antenna connector from the antenna cord sub-assembly.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
B-1 - D-3 Always Below 1 Ω
B-1a - D-3a Always Below 1 Ω
B-1 or D-3 - Body ground Always 10 kΩ or higher
B-1a or D-3a - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

3.REPLACE NAVIGATION ANTENNA ASSEMBLY

NG

REPLACE ANTENNA CORD SUB-ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO ANTENNA CORD>REMOVAL


3.REPLACE NAVIGATION ANTENNA ASSEMBLY
a.

Replace the navigation antenna assembly with a new or known good one.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE ANTENNA>REMOVAL


b.

Clear the DTCs.

Body Electrical > Telematics > Clear DTCs
50002 459

c.

Recheck for DTCs and check that no DTCs are output.

Body Electrical > Telematics > Trouble Codes
50001 459
OK:

No DTCs are output.



Result:
Proceed to
OK
NG



OK

END (NAVIGATION ANTENNA ASSEMBLY IS DEFECTIVE)

NG

4.REPLACE TELEMATICS TRANSCEIVER
