RM38T0EC _58 Vehicle Interior _114202 SEAT BELT _0509299 FRONT SEAT INNER BELT ASSEMBLY A

SEAT BELT  FRONT SEAT INNER BELT ASSEMBLY  INSTALLATION


CAUTION / NOTICE / HINT

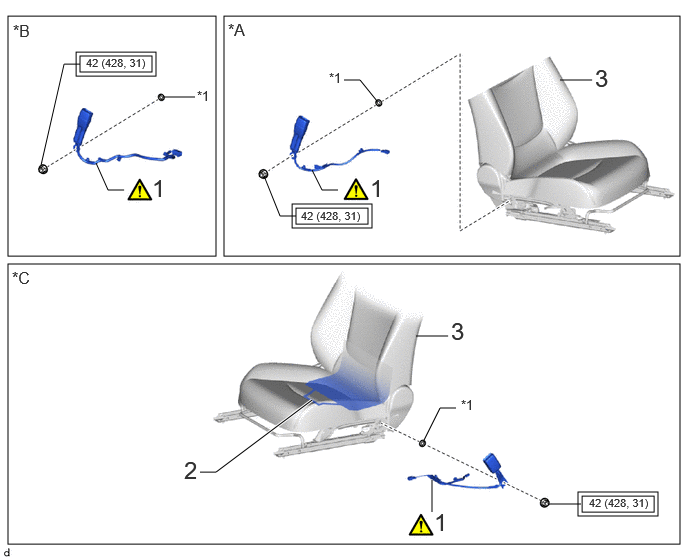

COMPONENTS (INSTALLATION)
B631832N01
0.083,2.75 7.083,5.667 7,2.917 0.083,0.167 2.25,2.667 2.167,2.5 0.792,0.542 1.625,0.792 0.833,0.25 0.833,0.583 1.583,0.75 0.75,0.167 3.083,2.167 3.833,2.333 0.75,0.167 3.042,2.125 3.875,2.375 0.833,0.25 6.021,5.125 6.854,5.375 0.833,0.25 6.063,5.167 6.813,5.333 0.75,0.167 2.333,0.167 7.083,2.667 4.75,2.5 3.927,1.052 3.75,0.833 3.75,0.833 3.583,0.833 false 5.833,0.833 6.167,0.833 false 4.333,3.5 4.667,3.5 false 4.417,4.583 4.583,4.25 4.583,4.25 4.75,4.25 false 2.083,4.917 2.25,4.917 2.25,4.917 3.25,4.167 true 1.698,1.01 2.031,1.01 false 4.5,5 4.5,5.333 false 1,1.698 1.125,1.979 1.125,1.979 1.292,1.979 false 0.427,1.719 0.667,0.667 0.667,0.667 0.833,0.667 false 5.719,5.25 6.052,5.25 false 3.25,1.771 3.354,1.979 3.354,1.979 3.521,1.979 false 2.75,1.833 2.917,2.25 2.917,2.25 3.083,2.25 false 4.698,3.302 4.979,3.656 0.281,0.354 18 false 3 2.375,0.208 2.75,0.448 0.375,0.24 12 false *A 4.521,5.292 4.802,5.646 0.281,0.354 18 false 1 3.854,1.813 4.135,2.167 0.281,0.354 18 false 1 1.583,1.813 1.865,2.167 0.281,0.354 18 false 1 0.135,0.219 0.51,0.458 0.375,0.24 12 false *B 0.125,2.792 0.5,3.031 0.375,0.24 12 false *C 6.198,0.667 6.479,1.021 0.281,0.354 18 false 3 4.802,4.135 5.115,4.333 0.313,0.198 10 false *1 3.427,0.729 3.74,0.927 0.313,0.198 10 false *1 2.052,0.917 2.365,1.115 0.313,0.198 10 false *1 1.917,4.75 2.198,5.104 0.281,0.354 18 false 2 0.896,0.583 1.677,0.823 0.781,0.24 8 false 42 (428, 31) 3.135,2.177 3.917,2.417 0.781,0.24 8 false 42 (428, 31) 6.135,5.167 6.917,5.406 0.781,0.24 8 false 42 (428, 31)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 FRONT SEAT INNER BELT ASSEMBLY 73230 (Click here) - -
2 SEPARATE TYPE FRONT SEATBACK COVER 71073S - - -
3 FRONT SEAT ASSEMBLY - - - -

*A for Driver Side Manual Seat *B for Driver Side Power Seat
*C for Front Passenger Seat - -
*1 Front Seat Belt Anchor Plate - -
V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

CAUTION / NOTICE / HINT

PROCEDURE

Hide 73230 1.INSTALL FRONT SEAT INNER BELT ASSEMBLY

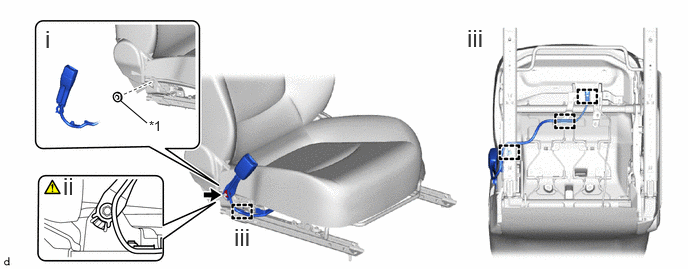

a.

for Driver Side Manual Seat:

B631837C01
1.531,1.281 1.26,1.052 false 0.469,0.26 0.75,0.615 0.281,0.354 18 false i 0.656,1.792 0.823,2.083 0.167,0.292 18 false ii 4.865,0.25 5.458,0.583 0.594,0.333 18 false iii 1.552,1.229 1.865,1.427 0.313,0.198 10 false *1 2.438,2.323 2.698,2.594 0.26,0.271 18 false iii
*1 Front Seat Belt Anchor Plate - -
V100155

Protruding Part - -


i.

Install the front seat belt anchor plate as shown in the illustration.


ii.

Install the front seat inner belt assembly with the nut.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding part of the separate type front seat cushion spring assembly.



iii.

Engage each clamp.

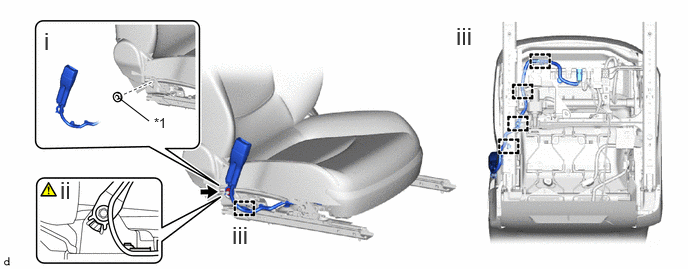

b.

for Driver Side Power Seat:

B631838C01
1.24,1.021 1.552,1.26 false 0.458,0.281 0.74,0.635 0.281,0.354 18 false i 0.625,1.833 0.781,2.115 0.156,0.281 18 false ii 4.75,0.229 5.5,0.563 0.75,0.333 18 false iii 1.604,1.198 1.917,1.396 0.313,0.198 10 false *1 2.417,2.302 2.74,2.615 0.323,0.313 18 false iii
*1 Front Seat Belt Anchor Plate - -
V100155

Protruding Part - -


i.

Install the front seat belt anchor plate as shown in the illustration.


ii.

Install the front seat inner belt assembly with the nut.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding part of the separate type front seat cushion spring assembly.



iii.

Engage each clamp.



c.

for Front Passenger Seat:

B631839C01
3.667,0.938 3.385,1.198 false 2.823,0.188 2.969,0.469 0.146,0.281 18 true i 3.344,2.021 3.5,2.313 0.156,0.292 18 true ii 4.677,0.25 4.958,0.604 0.281,0.354 18 false iii 3.219,1.146 3.531,1.344 0.313,0.198 10 false *1 2.469,2.323 2.667,2.635 0.198,0.313 18 false iii
*1 Front Seat Belt Anchor Plate - -
V100155

Protruding Part - -


i.

Install the front seat belt anchor plate as shown in the illustration.


ii.

Install the front seat inner belt assembly with the nut.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding part of the separate type front seat cushion spring assembly.



iii.

Engage each clamp.



Hide 71073S 2.CONNECT SEPARATE TYPE FRONT SEATBACK COVER (for Front Passenger Side)
