RM38T0EC _59 Vehicle Exterior _112294 LIGHTING (EXT) _0501100 FOG LIGHT ASSEMBLY A

LIGHTING (EXT) FOG LIGHT ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

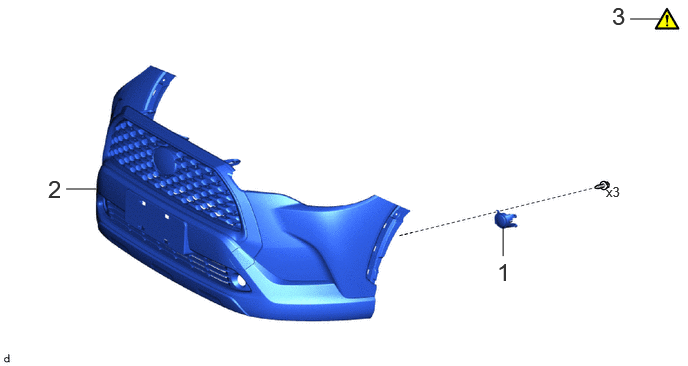

COMPONENTS (INSTALLATION)

0.688,1.969 1,1.969 false 5.24,2.365 5.24,2.667 false 6.563,0.198 6.875,0.198 false 6.313,1.917 6.625,2.115 0.313,0.198 10 false x3 5.177,2.688 5.5,3.073 0.323,0.385 18 false 1 6.375,0.021 6.698,0.406 0.323,0.385 18 false 3 0.5,1.823 0.823,2.208 0.323,0.385 18 false 2

Procedure		Part Name Code
1	FOG LIGHT ASSEMBLY	81220	-	-	-
2	FRONT BUMPER ASSEMBLY	-	-	-	-
3	ADJUST FOG LIGHT AIMING	-	(202201,999999,_59,_112294,_0501100,RM100000001Z4WY_01_0028,)	-	-

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 81220 1.INSTALL FOG LIGHT ASSEMBLY

Hide Display 2.INSTALL FRONT BUMPER ASSEMBLY

for TFTM Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>INSTALLATION202201,202307,_59,_114126,_0505908,RM100000001ZPAA,202307,999999,_59,_114126,_0505908,RM100000002CTHB,

for GTMC Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>INSTALLATION202201,202307,_59,_114126,_0505910,RM100000001ZPAI,202307,999999,_59,_114126,_0505910,RM100000002CTHD,

Hide Display 3.ADJUST FOG LIGHT AIMING

Click hereVehicle Exterior>LIGHTING (EXT)>FOG LIGHT ASSEMBLY>ADJUSTMENT202201,999999,_59,_112294,_0501100,RM100000001Z4WX,
