HEADLIGHT ASSEMBLY(for Halogen Headlight)
A
LIGHTING (EXT) HEADLIGHT ASSEMBLY(for Halogen Headlight) INSTALLATION
CAUTION / NOTICE / HINT

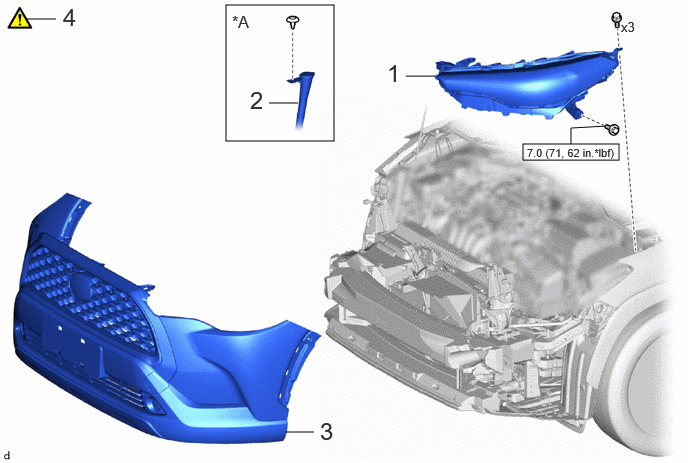

COMPONENTS (INSTALLATION)
2.354,0.052 3.479,1.469
1.125,1.417
5.448,1.5 6.448,1.667
1,0.167
3.271,4.5 2.969,4.5
false
3.104,1.073 2.802,1.073
false
4.531,0.792 4.229,0.792
false
6.302,1.313 5.948,1.333
5.948,1.333 5.948,1.5
false
0.583,0.198 0.281,0.198
false
2.604,0.896 2.885,1.25
0.281,0.354
18
false
2
3.333,4.344 3.615,4.698
0.281,0.354
18
false
3
4.031,0.615 4.313,0.969
0.281,0.354
18
false
1
6.469,0.198 6.75,0.552
0.281,0.354
10
false
x3
2.417,0.125 2.698,0.479
0.281,0.354
12
false
*A
5.49,1.521 6.438,1.656
0.948,0.135
8
true
7.0 (71, 62 in.*lbf)
0.656,0.031 0.938,0.385
0.281,0.354
18
false
4
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | HEADLIGHT ASSEMBLY | 81150 | - | - | - |
| 2 | WASHER INLET | 85319E | - | - | - |
| 3 | FRONT BUMPER ASSEMBLY | - | - | - | - |
| 4 | ADJUST HEADLIGHT AIMING | - | ( 202201,999999,_59,_112294,_0501097,RM100000001Z4WN_01_0065,)
|
- | - |
| *A | for RH Side | - | - |
|
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
81150
1.INSTALL HEADLIGHT ASSEMBLY
- Torque:
- 7.0 N*m (71 kgf*cm, 62 in.*lbf)
85319E
2.INSTALL WASHER INLET (for RH Side)
3.INSTALL FRONT BUMPER ASSEMBLY
·
4.ADJUST HEADLIGHT AIMING
