RM38T0EC _56 Audio / Visual / Telematics _111969 PARK ASSIST / MONITORING _0499995 ULTRASONIC SENSOR(for Front) A

PARK ASSIST / MONITORING  ULTRASONIC SENSOR(for Front)  INSTALLATION


CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)
E463470
1.521,1.958 1.979,1.958 false 1.323,1.833 1.604,2.188 0.281,0.354 18 false 1

Procedure Part Name Code
Z101186

Z101188

Z101187

1 ULTRASONIC SENSOR CUSHION SET 89305 (Click here) - -

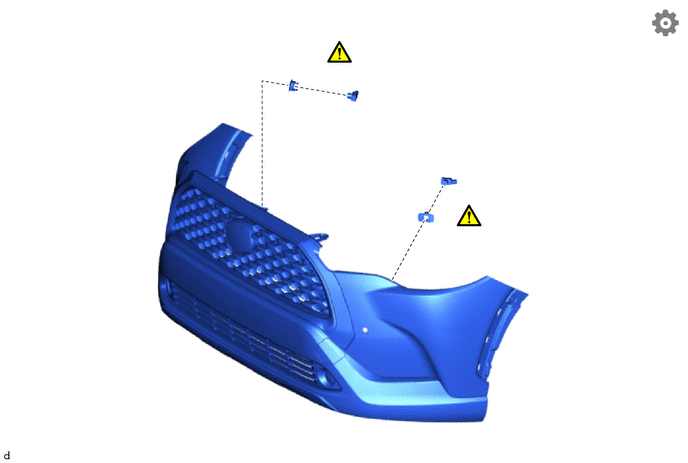

E473616
1.323,2.729 1.656,2.729 false 3.396,0.521 3.208,0.521 3.208,0.521 3.052,0.833 false 4.5,2.26 4.75,2.26 false 4.75,1.885 5.021,1.885 false 3.667,1.021 3.667,1.313 false 6.458,0.229 6.792,0.229 false 1.135,2.573 1.417,2.927 0.281,0.354 18 false 4 5.073,1.729 5.354,2.083 0.281,0.354 18 false 3 5.031,2.146 5.219,2.344 0.188,0.198 10 false ● 3.781,0.406 4.063,0.76 0.281,0.354 18 false 2 5.156,2.104 5.438,2.458 0.281,0.354 18 false 2 3.615,1.344 3.896,1.698 0.281,0.354 18 false 3 3.667,0.438 3.854,0.635 0.188,0.198 10 false ● 6.271,0.073 6.552,0.427 0.281,0.354 18 false 5

Procedure Part Name Code
Z101186

Z101188

Z101187

2 FRONT CORNER ULTRASONIC SENSOR RETAINER 89C48D (Click here) - -
3 FRONT CORNER ULTRASONIC SENSOR 89341K - - -
4 FRONT BUMPER ASSEMBLY - - - -
5 PERFORM CALIBRATION - - - (Click here)

● Non-reusable part - -

PROCEDURE

Hide 89305 1.INSTALL ULTRASONIC SENSOR CUSHION SET

Z101186

NOTICE:

Perform this procedure only when replacement of the ultrasonic sensor cushion set is necessary.



Hide 89C48D 2.INSTALL FRONT CORNER ULTRASONIC SENSOR RETAINER

Z101186

NOTICE:

Perform this procedure only when replacement of the front corner ultrasonic sensor retainer is necessary.



a.

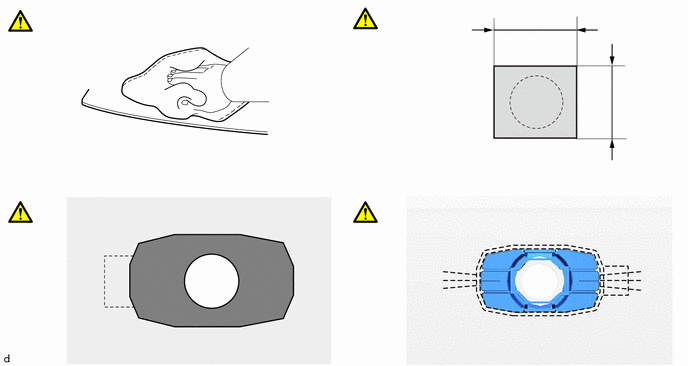

E472075
1.125,3.396 1.427,3.302 true 5.292,2.594 5.448,2.354 true 5.479,0.083 5.677,0.271 0.198,0.188 10 false *a 3.979,0.052 4.26,0.406 0.281,0.354 18 false ii 0.375,2.073 0.656,2.427 0.281,0.354 18 false iii 3.979,2.063 4.344,2.427 0.365,0.365 18 false iv 0.375,0.073 0.656,0.427 0.281,0.354 18 false i 6.5,0.948 6.698,1.135 0.198,0.188 10 true *a 0.896,3.323 1.094,3.51 0.198,0.188 10 true *b 5.479,2.25 5.677,2.438 0.198,0.188 10 true *b
*a 30 mm (1.18 in.) *b Scribed Line
V100144

Primer Application - -


i.

Clean the surface of the front bumper assembly by the below procedure.

1. Using a heat light, heat the front bumper assembly.

Heating Temperature:
Item Temperature Item Temperature
Front Bumper Assembly 40 to 50 °C (104 to 122 °F) - -


CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the front bumper assembly excessively.


2. Remove any remaining double-sided tape from the front bumper assembly.

3. Wipe off any adhesive residue with cleaner.

NOTICE:
·

Installing the front corner ultrasonic sensor retainer with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.




ii.

Cover the front corner ultrasonic sensor installation hole from the outside of the front bumper assembly with a 30 mm (1.18 in.) square piece of tape.


iii.

Apply primer to the front bumper assembly by the below procedure.

1. Apply primer to front bumper assembly on the installation area of the front corner ultrasonic sensor retainer using a brush or felt.

NOTICE:
·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the front corner ultrasonic sensor retainer has been attached.



2. Let the primer dry sufficiently.

NOTICE:

Do not touch applied surfaces until the primer is dry.


Recommended drying time:

10 Minutes or more (at 23°C (73°F))


3. Confirm that the primer has completely dried by touching the front bumper assembly. Then remove the tape.


iv.

Install a new front corner ultrasonic sensor retainer by the below procedure.

1. Remove the peeling paper of a new front corner ultrasonic sensor retainer trying not to touch the adhesional surface.

NOTICE:

After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.


2. Align the front corner ultrasonic sensor retainer with front corner ultrasonic sensor with the scribed line on the front bumper assembly and install it as shown in the illustration.

NOTICE:
·

The application strength of the front corner ultrasonic sensor retainer will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.

·

Apply pressure so that it does not lift up from the front bumper assembly.

Pushing force:

50 N (5.0 kgf) for 3 seconds






b.

The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.


Hide 89341K 3.INSTALL FRONT CORNER ULTRASONIC SENSOR
