RM36D0EC _56 Audio / Visual / Telematics _083082 PARK ASSIST / MONITORING _0403105 ULTRASONIC SENSOR(for Rear) A

PARK ASSIST / MONITORING ULTRASONIC SENSOR(for Rear) INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 89C48B 1.INSTALL REAR CENTER ULTRASONIC SENSOR RETAINER

NOTICE:: ·

Installing the rear center ultrasonic sensor retainer with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

HINT:: Perform the following procedure only when replacement of a rear center ultrasonic sensor retainer is necessary.

Clean the rear bumper assembly surface.

Remove any remaining double-sided tape from the rear bumper assembly.

ii.

Wipe off any tape adhesive residue with cleaner.

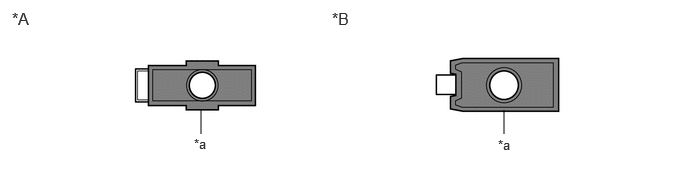

1.51,0.156 1.823,0.354 0.313,0.198 10 false *a 2.635,1.167 2.948,1.365 0.313,0.198 10 false *a

*a	30 mm (1.18 in.)

Cover the sensor installation hole from the outside of the rear bumper cover with a 30 mm (1.18 in.) square piece of tape.

Apply primer to the rear bumper assembly on the installation area of the rear center ultrasonic sensor retainer using a brush or felt.

NOTICE:: ·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the rear center ultrasonic sensor retainer has been attached.

2.094,1.396 2.094,1.146 false 5.25,1.396 5.25,1.146 false 0.125,0.094 0.5,0.333 0.375,0.24 12 false *A 3.458,0.094 3.833,0.333 0.375,0.24 12 false *B 5.188,1.427 5.5,1.625 0.313,0.198 10 false *a 2.021,1.417 2.333,1.615 0.313,0.198 10 false *a

*A	for Type A	*B	for Type B
*a	Scribed Line	-	-
	Primer Application	-	-

1.833,1.75 1.833,1.417 false 1.771,1.802 2.083,2 0.313,0.198 10 false *a

*a	Scribed Line
	Primer Application

Apply primer to the rear bumper assembly on the installation area of the rear center ultrasonic sensor retainer using a brush or felt.

NOTICE:: ·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the rear center ultrasonic sensor retainer has been attached.

Let the primer dry sufficiently.

NOTICE:: Do not touch applied surfaces until the primer is dry.

Recommended drying time:: 10 minutes or more (at 23°C (73°F))

Confirm that the primer has completely dried by touching the rear bumper assembly. Then remove the tape.

Remove the peeling paper of the new rear center ultrasonic sensor retainer trying not to touch the adhesional surface.

NOTICE:: After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work glove.

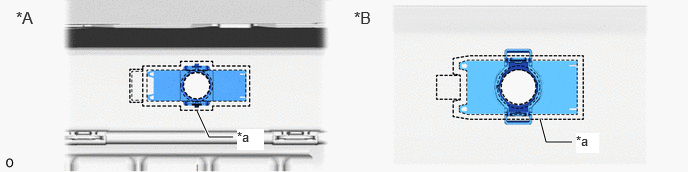

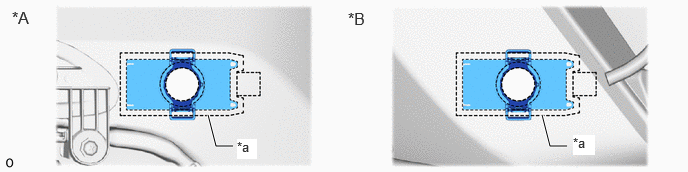

Align the rear center ultrasonic sensor retainer with the scribed line on the rear bumper assembly and install it as shown in the illustration.

NOTICE:: The application strength of the rear center ultrasonic sensor retainer will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.

HINT:: ·

Apply pressure so that it does not lift up from the rear bumper assembly.

·

Pushing force: 30 N (3.1 kgf) for 3 seconds

2.052,1.156 2.177,1.427 2.177,1.427 2.427,1.427 true 5.625,1.24 5.688,1.479 5.688,1.479 5.958,1.479 true 0.167,0.083 0.479,0.281 0.313,0.198 12 false *A 3.688,0.083 4,0.281 0.313,0.198 12 false *B 2.469,1.344 2.75,1.563 0.281,0.219 10 true *a 6,1.385 6.24,1.594 0.24,0.208 10 true *a

*A	for Type A	*B	for Type B
*a	Scribed Line	-	-

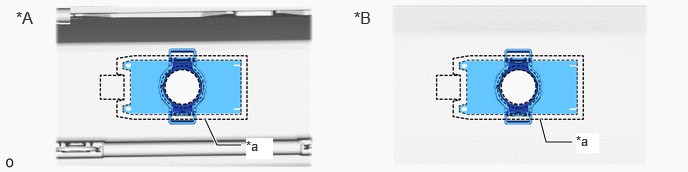

Align the rear center ultrasonic sensor retainer with the scribed line on the rear bumper assembly and install it as shown in the illustration.

NOTICE:: The application strength of the rear center ultrasonic sensor retainer will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.

HINT:: ·

Apply pressure so that it does not lift up from the rear bumper assembly.

·

Pushing force: 30 N (3.1 kgf) for 3 seconds

2.135,1.24 2.26,1.51 2.26,1.51 2.51,1.51 true 5.625,1.24 5.688,1.479 5.688,1.479 5.958,1.479 true 0.167,0.083 0.479,0.281 0.313,0.198 12 false *A 3.688,0.083 4,0.281 0.313,0.198 12 false *B 2.563,1.438 2.844,1.656 0.281,0.219 10 true *a 6,1.385 6.24,1.594 0.24,0.208 10 true *a

*A	for Type A	*B	for Type B
*a	Scribed Line	-	-

Hide Display 89C48A 2.INSTALL REAR CORNER ULTRASONIC SENSOR RETAINER

NOTICE:: ·

Installing the rear corner ultrasonic sensor retainer with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

HINT:: Perform the following procedure only when replacement of a rear corner ultrasonic sensor retainer is necessary.

Clean the rear bumper assembly surface.

Remove any remaining double-sided tape from the rear bumper assembly.

ii.

Wipe off any tape adhesive residue with cleaner.

1.51,0.156 1.823,0.354 0.313,0.198 10 false *a 2.635,1.167 2.948,1.365 0.313,0.198 10 false *a

*a	30 mm (1.18 in.)

Cover the sensor installation hole from the outside of the rear bumper cover with a 30 mm (1.18 in.) square piece of tape.

Apply primer to the rear bumper assembly on the installation area of the rear corner ultrasonic sensor retainer using a brush or felt.

NOTICE:: ·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the rear corner ultrasonic sensor retainer has been attached.

5,1.333 5,1.083 false 1.865,1.323 1.865,1.073 false 0.167,0.094 0.542,0.333 0.375,0.24 12 false *A 3.417,0.083 3.792,0.323 0.375,0.24 12 false *B 4.927,1.365 5.24,1.563 0.313,0.198 10 false *a 1.792,1.354 2.104,1.552 0.313,0.198 10 false *a

*A	for Type A	*B	for Type B
*a	Scribed Line	-	-
	Primer Application	-	-

1.646,1.75 1.646,1.417 false 1.573,1.792 1.885,1.99 0.313,0.198 10 false *a

*a	Scribed Line
	Primer Application

Apply primer to the rear bumper assembly on the installation area of the rear corner ultrasonic sensor retainer using a brush or felt.

NOTICE:: ·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the rear corner ultrasonic sensor retainer has been attached.

Let the primer dry sufficiently.

NOTICE:: Do not touch applied surfaces until the primer is dry.

Recommended drying time:: 10 minutes or more (at 23°C (73°F))

Confirm that the primer has completely dried by touching the rear bumper assembly. Then remove the tape.

Remove the peeling paper of the new rear corner ultrasonic sensor retainer trying not to touch the adhesional surface.

NOTICE:: After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work glove.

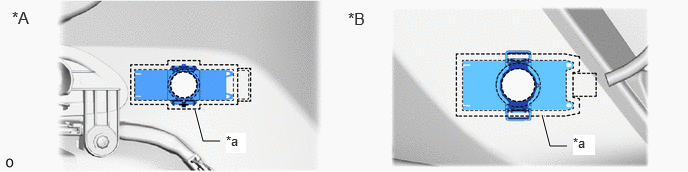

Align the rear corner ultrasonic sensor retainer with the scribed line on the rear bumper assembly and install it as shown in the illustration.

NOTICE:: The application strength of the rear corner ultrasonic sensor retainer will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.

HINT:: ·

Apply pressure so that it does not lift up from the rear bumper assembly.

·

Pushing force: 30 N (3.1 kgf) for 3 seconds

2.292,1.469 2.115,1.469 2.115,1.469 2.031,1.146 true 5.906,1.521 5.729,1.521 5.729,1.521 5.646,1.198 true 0.125,0.083 0.5,0.323 0.375,0.24 12 false *A 3.625,0.094 4,0.333 0.375,0.24 12 false *B 2.354,1.385 2.563,1.594 0.208,0.208 10 true *a 5.969,1.406 6.198,1.615 0.229,0.208 10 true *a

*A	for Type A	*B	for Type B
*a	Scribed Line	-	-

Align the rear corner ultrasonic sensor retainer with the scribed line on the rear bumper assembly and install it as shown in the illustration.

NOTICE:: The application strength of the rear corner ultrasonic sensor retainer will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.

HINT:: ·

Apply pressure so that it does not lift up from the rear bumper assembly.

·

Pushing force: 30 N (3.1 kgf) for 3 seconds

2.427,1.521 2.25,1.521 2.25,1.521 2.167,1.198 true 5.906,1.521 5.729,1.521 5.729,1.521 5.646,1.198 true 0.125,0.083 0.5,0.323 0.375,0.24 12 false *A 3.625,0.094 4,0.333 0.375,0.24 12 false *B 2.469,1.448 2.677,1.656 0.208,0.208 10 true *a 5.969,1.406 6.198,1.615 0.229,0.208 10 true *a

*A	for Type A	*B	for Type B
*a	Scribed Line	-	-

Hide Display 89342A 3.INSTALL REAR CENTER ULTRASONIC SENSOR

HINT:: ·

Use the same procedure for the RH and LH side.

·

The following procedure is for the LH side.

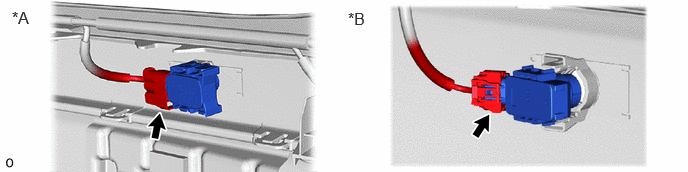

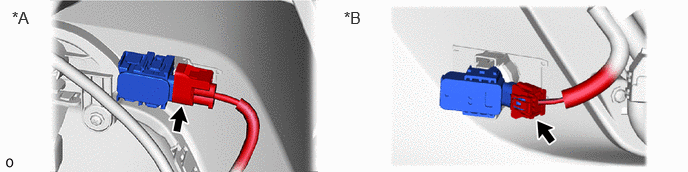

Connect the connector.

0.125,0.083 0.5,0.323 0.375,0.24 12 false *A 3.625,0.094 4,0.333 0.375,0.24 12 false *B

for Type A

for Type B

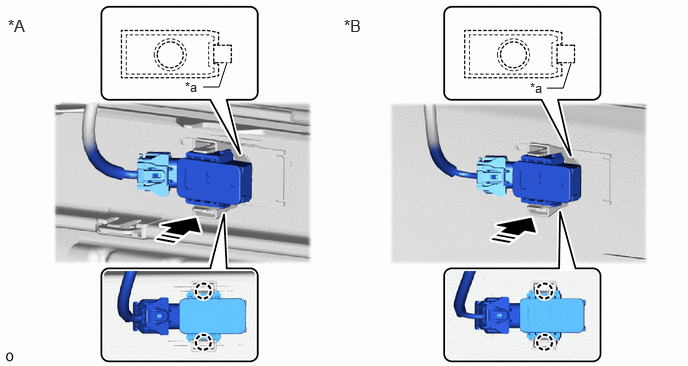

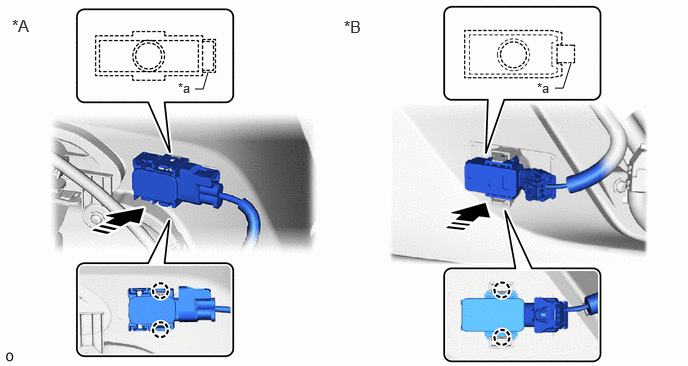

Attach the claw to install the rear center ultrasonic sensor as shown in the illustration.

5.083,0.917 4.917,0.917 4.917,0.917 4.917,0.667 true 1.25,0.927 1.083,0.927 1.083,0.927 1.083,0.677 true 0.083,0.167 0.458,0.406 0.375,0.24 12 false *A 3.583,0.167 3.958,0.406 0.375,0.24 12 false *B 1.313,0.823 1.688,1.063 0.375,0.24 10 false *a 5.146,0.833 5.521,1.073 0.375,0.24 10 false *a

*A	for Type A	*B	for Type B
*a	Protrusion of the Mark	-	-
	Install in this Direction	-	-

NOTICE:

When reusing the sensor, make sure that each sensor is returned to its original position.

Check that the claw is securely fitted.

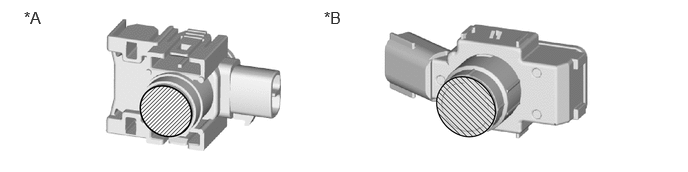

Do not push the microphone surface.

0.25,0.083 0.625,0.323 0.375,0.24 12 false *A 3.375,0.083 3.75,0.323 0.375,0.24 12 false *B

*A	for Type A	*B	for Type B
	Microphone Surface	-	-

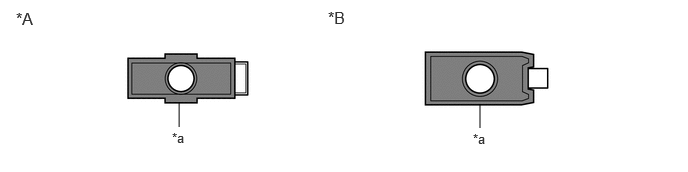

HINT:: Align the connector with the protrusion of the mark when connecting it.

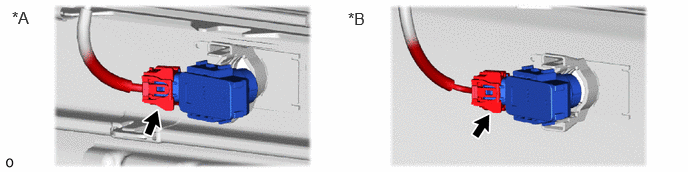

Connect the connector.

0.125,0.083 0.5,0.323 0.375,0.24 12 false *A 3.625,0.094 4,0.333 0.375,0.24 12 false *B

for Type A

for Type B

Attach the claw to install the rear center ultrasonic sensor as shown in the illustration.

5.698,0.917 5.865,0.917 5.865,0.917 5.948,0.656 true 2.115,0.906 2.281,0.906 2.281,0.906 2.365,0.646 true 0.083,0.167 0.458,0.406 0.375,0.24 12 false *A 3.583,0.167 3.958,0.406 0.375,0.24 12 false *B 1.927,0.823 2.302,1.063 0.375,0.24 10 false *a 5.521,0.833 5.896,1.073 0.375,0.24 10 false *a

*A	for Type A	*B	for Type B
*a	Protrusion of the Mark	-	-
	Install in this Direction	-	-

NOTICE:

When reusing the sensor, make sure that each sensor is returned to its original position.

Check that the claw is securely fitted.

0,0 0,0 false

Microphone Surface

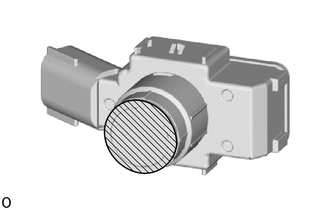

Do not push the microphone surface.

HINT:: Align the connector with the protrusion of the mark when connecting it.

Hide Display 89342 4.INSTALL REAR CORNER ULTRASONIC SENSOR

HINT:: ·

Use the same procedure for the RH and LH side.

·

The following procedure is for the LH side.

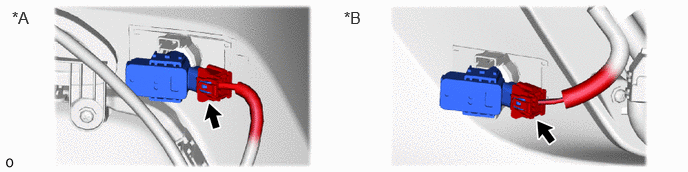

Connect the connector.

0.125,0.083 0.5,0.323 0.375,0.24 12 false *A 3.583,0.083 3.958,0.323 0.375,0.24 12 false *B

for Type A

for Type B

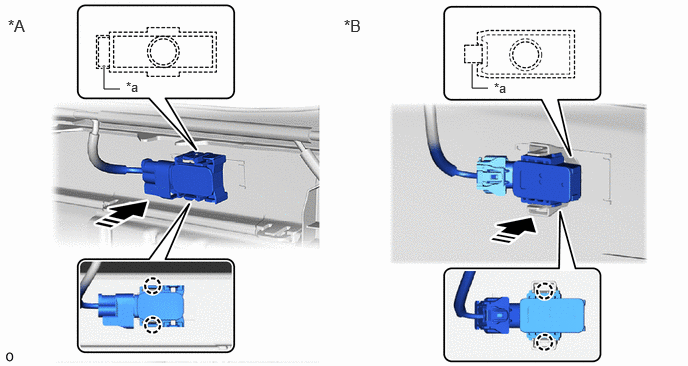

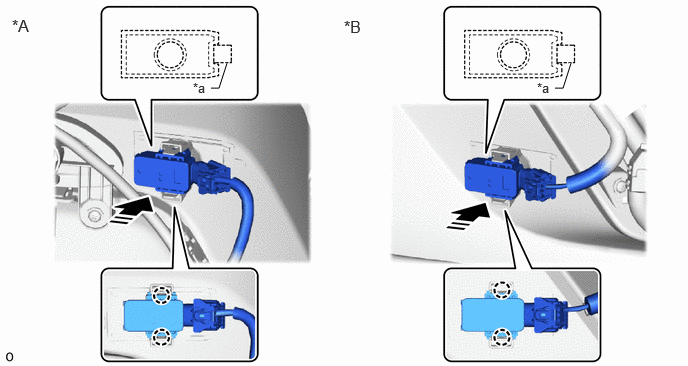

Attach the claw to install the rear corner ultrasonic sensor as shown in the illustration.

5.781,0.917 5.865,0.917 5.865,0.917 5.948,0.656 true 2.031,0.927 2.115,0.927 2.115,0.927 2.167,0.75 true 0.125,0.167 0.5,0.406 0.375,0.24 12 false *A 3.583,0.177 3.958,0.417 0.375,0.24 12 false *B 1.854,0.833 2.229,1.073 0.375,0.24 10 false *a 5.594,0.833 5.969,1.073 0.375,0.24 10 false *a

*A	for Type A	*B	for Type B
*a	Protrusion of the Mark	-	-
	Install in this Direction	-	-

NOTICE:

When reusing the sensor, make sure that each sensor is returned to its original position.

Check that the claw is securely fitted.

Do not push the microphone surface.

0.25,0.083 0.625,0.323 0.375,0.24 12 false *A 3.375,0.083 3.75,0.323 0.375,0.24 12 false *B

*A	for Type A	*B	for Type B
	Microphone Surface	-	-

HINT:: Align the connector with the protrusion of the mark when connecting it.

Connect the connector.

0.125,0.083 0.5,0.323 0.375,0.24 12 false *A 3.583,0.083 3.958,0.323 0.375,0.24 12 false *B

for Type A

for Type B

Attach the claw to install the rear corner ultrasonic sensor as shown in the illustration.

5.781,0.917 5.865,0.917 5.865,0.917 5.948,0.656 true 2.198,0.917 2.281,0.917 2.281,0.917 2.365,0.656 true 0.125,0.167 0.5,0.406 0.375,0.24 12 false *A 3.583,0.177 3.958,0.417 0.375,0.24 12 false *B 2.01,0.833 2.385,1.073 0.375,0.24 10 false *a 5.594,0.833 5.969,1.073 0.375,0.24 10 false *a

*A	for Type A	*B	for Type B
*a	Protrusion of the Mark	-	-
	Install in this Direction	-	-

NOTICE:

When reusing the sensor, make sure that each sensor is returned to its original position.

Check that the claw is securely fitted.

0,0 0,0 false

Microphone Surface

Do not push the microphone surface.

HINT:: Align the connector with the protrusion of the mark when connecting it.

Hide Display 5.INSTALL REAR BUMPER ASSEMBLY

for Type A:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR BUMPER (for Type A)>INSTALLATION202409,999999,_59,_083111,_0400752,RM100000002NG21,

for Type B:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR BUMPER (for Type B)>INSTALLATION202409,999999,_59,_083111,_0417478,RM100000002NG2I,

Hide Display 6.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL (w/ Hands Free Power Back Door)

for M20C-FKS:

Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>INSTALLATION202304,999999,_V1,_083136,_0418197,RM100000002A9BV,

for M20D-FKS:

Click hereGeneral>MAINTENANCE>M20D-FKS BATTERY>INSTALLATION202304,999999,_V1,_083136,_0403617,RM100000002A9CC,

for A25B-FXS:

Click hereGeneral>MAINTENANCE>A25B-FXS AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_083136,_0403618,RM100000002A9CD,

for A25D-FXS:

Click hereGeneral>MAINTENANCE>A25D-FXS AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_083136,_0477834,RM100000002A9D9,

for A25F-FXS:

Click hereGeneral>MAINTENANCE>A25F-FXS AUXILIARY BATTERY (Production date from 2021/08)>INSTALLATION202304,999999,_V1,_083136,_0486275,RM100000002A9DH,

Hide Display 7. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL (w/ Hands Free Power Back Door)

HINT:: When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202409,999999,_V1,_083041,_0402304,RM100000002NY03,

Hide Display 891B2 8.CHECK KICK DOOR CONTROL SENSOR (w/ Hands Free Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR SYSTEM>DATA LIST / ACTIVE TEST202409,999999,_59,_083093,_0584672,RM100000002NT2L,
