NETWORKING  CAN COMMUNICATION SYSTEM(for SFTM Made Gasoline Model)  U012987  Lost Communication With Brake System Control Module Missing Message  U115C87  Lost Communication with ECM/PCM "A" (ch5) Missing Message  U117087  Lost Communication With Brake System Control Module(ch2) Missing Message


DESCRIPTION

DTC No. Detection Item DTC Detection Condition DTC Output from
U012987 Lost Communication With Brake System Control Module Missing Message The DTC output ECU does not receive data from the brake actuator assembly (skid control ECU). Engine
U115C87 Lost Communication with ECM/PCM "A" (ch5) Missing Message The DTC output ECU does not receive data from the ECM. Brake/EPB
U117087 Lost Communication With Brake System Control Module(ch2) Missing Message The DTC output ECU does not receive data from the brake actuator assembly (skid control ECU). Stop and Start

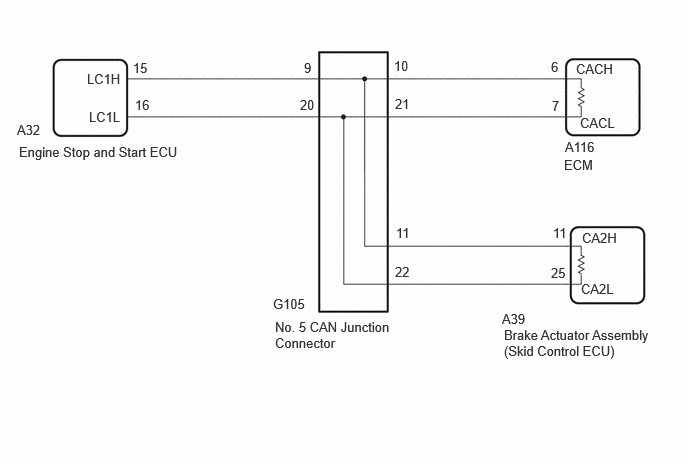

WIRING DIAGRAM

C503765E05
2.844,3.083 3.458,3.281 0.615,0.198 10 false G105 2.865,3.323 4.104,4.031 1.24,0.708 10 false No. 5 CAN Junction Connector 3.125,1.01 3.74,1.208 0.615,0.198 10 false 20 3.167,0.625 3.781,0.823 0.615,0.198 10 false 9 4.115,1 4.729,1.198 0.615,0.198 10 false 21 4.104,0.604 4.719,0.802 0.615,0.198 10 false 10 4.115,2.75 4.729,2.948 0.615,0.198 10 false 22 4.125,2.344 4.74,2.542 0.615,0.198 10 false 11 5.229,3.24 6.385,3.573 1.156,0.333 10 false A39 5.25,3.406 6.948,3.885 1.698,0.479 10 false Brake Actuator Assembly (Skid Control ECU) 5.885,1.448 6.5,1.646 0.615,0.198 10 false A116 5.875,1.635 6.323,1.875 0.448,0.24 10 false ECM 5.74,0.615 6.354,0.813 0.615,0.198 10 false 6 5.75,1.021 6.365,1.219 0.615,0.198 10 false 7 6,0.635 6.615,0.833 0.615,0.198 10 false CACH 6.042,1.198 6.656,1.396 0.615,0.198 10 false CACL 6.063,2.396 6.677,2.594 0.615,0.198 10 false CA2H 6.052,2.927 6.667,3.125 0.615,0.198 10 false CA2L 5.76,2.344 6.375,2.542 0.615,0.198 10 false 11 5.74,2.76 6.354,2.958 0.615,0.198 10 false 25 1.385,0.625 2,0.823 0.615,0.198 10 false 15 1.406,1.01 2.021,1.208 0.615,0.198 10 false 16 0.906,0.74 1.521,0.938 0.615,0.198 10 false LC1H 0.927,1.135 1.542,1.333 0.615,0.198 10 false LC1L 0.177,1.271 1.365,1.479 1.188,0.208 10 false A32 0.198,1.5 2.25,1.792 2.052,0.292 10 false Engine Stop and Start ECU

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for SFTM Made Gasoline Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the battery.

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for SFTM Made Gasoline Model)>DIAGNOSIS SYSTEM



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.RECONFIRM DTC OUTPUT
a.

Check for DTCs.

Powertrain > Engine > Trouble Codes
50001 372
Powertrain > Stop and Start > Trouble Codes
50001 392
Chassis > Brake/EPB > Trouble Codes
50001 435
Display on GTS / Output DTC Pattern
Pattern 1 Pattern 2 Pattern 3
Engine U012987 ○ - -
Stop and Start U117087 - ○ -
Brake/EPB U115C87 - - ○


Result:
Result Proceed to
Pattern 1 A
Pattern 2 B
Pattern 3 C
Other Pattern D



A

2.CHECK FOR OPEN IN CAN BUS WIRE (ECM MAIN WIRE)

B

3.CHECK FOR OPEN IN CAN BUS WIRE (ENGINE STOP AND START ECU BRANCH WIRE)

C

4.CHECK FOR OPEN IN CAN BUS WIRE (BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) BRANCH WIRE)

D

5.CHECK FOR SHORT IN CAN BUS WIRES
2.CHECK FOR OPEN IN CAN BUS WIRE (ECM MAIN WIRE)
a.

Disconnect the cable from the negative (-) battery terminal.


b.

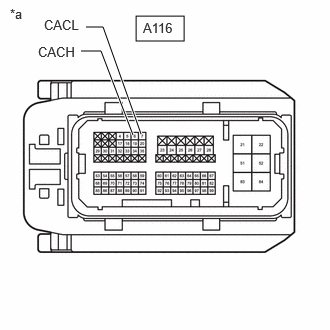

C502865C17
1.417,0.167 1.917,0.427 0.5,0.26 1.385,1.406 1.052,0.531 1.052,0.531 0.844,0.531 true 1.469,1.396 1.073,0.281 1.073,0.281 0.896,0.281 true 1.49,0.208 1.948,0.406 0.458,0.198 10 false A116 0.104,0.063 0.563,0.26 0.458,0.198 10 false *a 0.458,0.177 0.917,0.375 0.458,0.198 10 false CACL 0.396,0.458 0.854,0.656 0.458,0.198 10 false CACH
*a Front view of wire harness connector
(to ECM)


Disconnect the A116 ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A116-6 (CACH) - A116-7 (CACL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR

3.CHECK FOR OPEN IN CAN BUS WIRE (ENGINE STOP AND START ECU BRANCH WIRE)
a.

Disconnect the cable from the negative (-) battery terminal.


b.

Disconnect the A32 engine stop and start ECU connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A32-15 (LC1H) - A32-16 (LC1L) Cable disconnected from negative (-) battery terminal 54 to 69 Ω



Result:
Proceed to
OK
NG



OK

REPLACE ENGINE STOP AND START ECU

Click hereEngine / Hybrid System>STOP AND START>ENGINE STOP AND START ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR

4.CHECK FOR OPEN IN CAN BUS WIRE (BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) BRANCH WIRE)
a.

Disconnect the cable from the negative (-) battery terminal.


b.

Disconnect the A39 brake actuator assembly (skid control ECU) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A39-11 (CA2H) - A39-25 (CA2L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

REPLACE BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for Gasoline Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR

5.CHECK FOR SHORT IN CAN BUS WIRES
NOTICE:

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.


HINT:

Operating the ignition switch, any other switches or door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.


a.

Disconnect the cable from the negative (-) battery terminal.


b.

Measure the resistance according to the value(s) in the table below.

A450728C03
4.646,0.479 5.167,0.792 0.521,0.313 4.896,2.25 5.063,2.25 5.063,2.25 5.25,1.531 true 5.667,2.25 5.5,2.25 5.5,2.25 5.313,1.531 true 5.74,2.167 6.396,2.354 0.656,0.188 10 false LC1H 0.104,0.073 0.885,0.271 0.781,0.198 10 false *a 4.76,0.531 5.135,0.729 0.375,0.198 10 false A32 4.531,2.156 5.188,2.344 0.656,0.188 10 false LC1L
*a Component with harness connected
(Engine Stop and Start ECU) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
A32-15 (LC1H) - A32-16 (LC1L) Cable disconnected from negative (-) battery terminal Below 70 Ω



Result:
Proceed to
OK
NG



OK

6.CHECK FOR SHORT IN CAN BUS WIRES

NG

27.CHECK FOR OPEN IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU))
6.CHECK FOR SHORT IN CAN BUS WIRES
a.

Measure the resistance according to the value(s) in the table below.

A450728C03
4.646,0.479 5.167,0.792 0.521,0.313 4.896,2.25 5.063,2.25 5.063,2.25 5.25,1.531 true 5.667,2.25 5.5,2.25 5.5,2.25 5.313,1.531 true 5.74,2.167 6.396,2.354 0.656,0.188 10 false LC1H 0.104,0.073 0.885,0.271 0.781,0.198 10 false *a 4.76,0.531 5.135,0.729 0.375,0.198 10 false A32 4.531,2.156 5.188,2.344 0.656,0.188 10 false LC1L
*a Component with harness connected
(Engine Stop and Start ECU) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
A32-15 (LC1H) - A32-16 (LC1L) Cable disconnected from negative (-) battery terminal 54 Ω or higher



Result:
Proceed to
OK
NG



OK

7.CHECK FOR SHORT TO B+ IN CAN BUS WIRE

NG

21.CHECK FOR SHORT IN CAN BUS WIRES (NO. 5 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU))
7.CHECK FOR SHORT TO B+ IN CAN BUS WIRE
a.

Measure the resistance according to the value(s) in the table below.

A450728C03
4.646,0.479 5.167,0.792 0.521,0.313 4.896,2.25 5.063,2.25 5.063,2.25 5.25,1.531 true 5.667,2.25 5.5,2.25 5.5,2.25 5.313,1.531 true 5.74,2.167 6.396,2.354 0.656,0.188 10 false LC1H 0.104,0.073 0.885,0.271 0.781,0.198 10 false *a 4.76,0.531 5.135,0.729 0.375,0.198 10 false A32 4.531,2.156 5.188,2.344 0.656,0.188 10 false LC1L
*a Component with harness connected
(Engine Stop and Start ECU) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
A32-15 (LC1H) - Positive (+) battery terminal Cable disconnected from negative (-) battery terminal 6 kΩ or higher
A32-16 (LC1L) - Positive (+) battery terminal



Result:
Proceed to
OK
NG



OK

8.CHECK FOR SHORT TO GND IN CAN BUS WIRE

NG

15.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU))
8.CHECK FOR SHORT TO GND IN CAN BUS WIRE
a.

Measure the resistance according to the value(s) in the table below.

A450728C03
4.646,0.479 5.167,0.792 0.521,0.313 4.896,2.25 5.063,2.25 5.063,2.25 5.25,1.531 true 5.667,2.25 5.5,2.25 5.5,2.25 5.313,1.531 true 5.74,2.167 6.396,2.354 0.656,0.188 10 false LC1H 0.104,0.073 0.885,0.271 0.781,0.198 10 false *a 4.76,0.531 5.135,0.729 0.375,0.198 10 false A32 4.531,2.156 5.188,2.344 0.656,0.188 10 false LC1L
*a Component with harness connected
(Engine Stop and Start ECU) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
A32-15 (LC1H) - Body ground Cable disconnected from negative (-) battery terminal 200 Ω or higher
A32-16 (LC1L) - Body ground



Result:
Proceed to
OK
NG



OK

REPLACE ENGINE STOP AND START ECU

Click hereEngine / Hybrid System>STOP AND START>ENGINE STOP AND START ECU>REMOVAL


NG

9.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU))
9.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU))
a.

Disconnect the G105 No. 5 CAN junction connector.

C518964C31
3.25,0.167 3.667,0.417 0.417,0.25 4,0.615 4.167,0.615 4.167,0.615 4.458,1.406 true 4.031,2.292 4.198,2.292 4.198,2.292 4.479,1.688 true 3.313,0.208 4.229,0.406 0.917,0.198 10 false G105 0.115,0.115 1.031,0.313 0.917,0.198 10 false *a 3.448,0.521 4.365,0.719 0.917,0.198 10 false CANH*b 3.479,2.229 4.396,2.427 0.917,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector) 		*b to Brake Actuator Assembly (Skid control ECU)



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G105-11 (CANH) - Body ground Cable disconnected from negative (-) battery terminal 200 Ω or higher
G105-22 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

10.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - ECM)

NG

12.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU))
10.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

C518964C32
3.25,0.167 3.667,0.417 0.417,0.25 3.823,0.615 3.99,0.615 3.99,0.615 4.281,1.406 true 3.833,2.292 4,2.292 4,2.292 4.281,1.688 true 3.313,0.208 4.229,0.406 0.917,0.198 10 false G105 0.115,0.115 1.031,0.313 0.917,0.198 10 false *a 3.26,0.521 4.177,0.719 0.917,0.198 10 false CANH*b 3.302,2.229 4.219,2.427 0.917,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
G105-10 (CANH) - Body ground Cable disconnected from negative (-) battery terminal 200 Ω or higher
G105-21 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

11.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

NG

13.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - ECM)
11.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
a.

Measure the resistance according to the value(s) in the table below.

C518964C33
3.25,0.167 3.667,0.417 0.417,0.25 3.656,0.615 3.823,0.615 3.823,0.615 4.115,1.406 true 3.667,2.292 3.833,2.292 3.833,2.292 4.115,1.688 true 3.313,0.208 4.229,0.406 0.917,0.198 10 false G105 0.115,0.115 1.031,0.313 0.917,0.198 10 false *a 3.104,0.521 4.021,0.719 0.917,0.198 10 false CANH*b 3.104,2.208 4.021,2.406 0.917,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector) 		*b to Engine Stop and Start ECU


Standard Resistance:
Tester Connection Condition Specified Condition
G105-9 (CANH) - Body ground Cable disconnected from negative (-) battery terminal 200 Ω or higher
G105-20 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

REPLACE NO. 5 CAN JUNCTION CONNECTOR

NG

14.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
12.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU))
a.

Disconnect the A39 brake actuator assembly (skid control ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

C518964C31
3.25,0.167 3.667,0.417 0.417,0.25 4,0.615 4.167,0.615 4.167,0.615 4.458,1.406 true 4.031,2.292 4.198,2.292 4.198,2.292 4.479,1.688 true 3.313,0.208 4.229,0.406 0.917,0.198 10 false G105 0.115,0.115 1.031,0.313 0.917,0.198 10 false *a 3.448,0.521 4.365,0.719 0.917,0.198 10 false CANH*b 3.479,2.229 4.396,2.427 0.917,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector) 		*b to Brake Actuator Assembly (Skid control ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
G105-11 (CANH) - Body ground Cable disconnected from negative (-) battery terminal 200 Ω or higher
G105-22 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

REPLACE BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for Gasoline Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 5 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU))

13.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - ECM)
a.

Disconnect the A116 ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

C518964C32
3.25,0.167 3.667,0.417 0.417,0.25 3.823,0.615 3.99,0.615 3.99,0.615 4.281,1.406 true 3.833,2.292 4,2.292 4,2.292 4.281,1.688 true 3.313,0.208 4.229,0.406 0.917,0.198 10 false G105 0.115,0.115 1.031,0.313 0.917,0.198 10 false *a 3.26,0.521 4.177,0.719 0.917,0.198 10 false CANH*b 3.302,2.229 4.219,2.427 0.917,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
G105-10 (CANH) - Body ground Cable disconnected from negative (-) battery terminal 200 Ω or higher
G105-21 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 5 CAN JUNCTION CONNECTOR - ECM)

14.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
a.

Disconnect the A32 engine stop and start ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C518964C33
3.25,0.167 3.667,0.417 0.417,0.25 3.656,0.615 3.823,0.615 3.823,0.615 4.115,1.406 true 3.667,2.292 3.833,2.292 3.833,2.292 4.115,1.688 true 3.313,0.208 4.229,0.406 0.917,0.198 10 false G105 0.115,0.115 1.031,0.313 0.917,0.198 10 false *a 3.104,0.521 4.021,0.719 0.917,0.198 10 false CANH*b 3.104,2.208 4.021,2.406 0.917,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector) 		*b to Engine Stop and Start ECU


Standard Resistance:
Tester Connection Condition Specified Condition
G105-9 (CANH) - Body ground Cable disconnected from negative (-) battery terminal 200 Ω or higher
G105-20 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

REPLACE ENGINE STOP AND START ECU

Click hereEngine / Hybrid System>STOP AND START>ENGINE STOP AND START ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 5 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

15.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU))
a.

Disconnect the G105 No. 5 CAN junction connector.

C518964C31
3.25,0.167 3.667,0.417 0.417,0.25 4,0.615 4.167,0.615 4.167,0.615 4.458,1.406 true 4.031,2.292 4.198,2.292 4.198,2.292 4.479,1.688 true 3.313,0.208 4.229,0.406 0.917,0.198 10 false G105 0.115,0.115 1.031,0.313 0.917,0.198 10 false *a 3.448,0.521 4.365,0.719 0.917,0.198 10 false CANH*b 3.479,2.229 4.396,2.427 0.917,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector) 		*b to Brake Actuator Assembly (Skid control ECU)



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G105-11 (CANH) - Positive (+) battery terminal Cable disconnected from negative (-) battery terminal 6 kΩ or higher
G105-22 (CANL) - Positive (+) battery terminal



Result:
Proceed to
OK
NG



OK

16.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - ECM)

NG

18.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU))
16.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

C518964C32
3.25,0.167 3.667,0.417 0.417,0.25 3.823,0.615 3.99,0.615 3.99,0.615 4.281,1.406 true 3.833,2.292 4,2.292 4,2.292 4.281,1.688 true 3.313,0.208 4.229,0.406 0.917,0.198 10 false G105 0.115,0.115 1.031,0.313 0.917,0.198 10 false *a 3.26,0.521 4.177,0.719 0.917,0.198 10 false CANH*b 3.302,2.229 4.219,2.427 0.917,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
G105-10 (CANH) - Positive (+) battery terminal Cable disconnected from negative (-) battery terminal 6 kΩ or higher
G105-21 (CANL) - Positive (+) battery terminal



Result:
Proceed to
OK
NG



OK

17.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

NG

19.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - ECM)
17.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
a.

Measure the resistance according to the value(s) in the table below.

C518964C33
3.25,0.167 3.667,0.417 0.417,0.25 3.656,0.615 3.823,0.615 3.823,0.615 4.115,1.406 true 3.667,2.292 3.833,2.292 3.833,2.292 4.115,1.688 true 3.313,0.208 4.229,0.406 0.917,0.198 10 false G105 0.115,0.115 1.031,0.313 0.917,0.198 10 false *a 3.104,0.521 4.021,0.719 0.917,0.198 10 false CANH*b 3.104,2.208 4.021,2.406 0.917,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector) 		*b to Engine Stop and Start ECU


Standard Resistance:
Tester Connection Condition Specified Condition
G105-9 (CANH) - Positive (+) battery terminal Cable disconnected from negative (-) battery terminal 6 kΩ or higher
G105-20 (CANL) - Positive (+) battery terminal



Result:
Proceed to
OK
NG



OK

REPLACE NO. 5 CAN JUNCTION CONNECTOR

NG

20.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
18.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU))
a.

Disconnect the A39 brake actuator assembly (skid control ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

C518964C31
3.25,0.167 3.667,0.417 0.417,0.25 4,0.615 4.167,0.615 4.167,0.615 4.458,1.406 true 4.031,2.292 4.198,2.292 4.198,2.292 4.479,1.688 true 3.313,0.208 4.229,0.406 0.917,0.198 10 false G105 0.115,0.115 1.031,0.313 0.917,0.198 10 false *a 3.448,0.521 4.365,0.719 0.917,0.198 10 false CANH*b 3.479,2.229 4.396,2.427 0.917,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector) 		*b to Brake Actuator Assembly (Skid control ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
G105-11 (CANH) - Positive (+) battery terminal Cable disconnected from negative (-) battery terminal 6 kΩ or higher
G105-22 (CANL) - Positive (+) battery terminal



Result:
Proceed to
OK
NG



OK

REPLACE BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for Gasoline Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 5 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU))

19.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - ECM)
a.

Disconnect the A116 ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

C518964C32
3.25,0.167 3.667,0.417 0.417,0.25 3.823,0.615 3.99,0.615 3.99,0.615 4.281,1.406 true 3.833,2.292 4,2.292 4,2.292 4.281,1.688 true 3.313,0.208 4.229,0.406 0.917,0.198 10 false G105 0.115,0.115 1.031,0.313 0.917,0.198 10 false *a 3.26,0.521 4.177,0.719 0.917,0.198 10 false CANH*b 3.302,2.229 4.219,2.427 0.917,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
G105-10 (CANH) - Positive (+) battery terminal Cable disconnected from negative (-) battery terminal 6 kΩ or higher
G105-21 (CANL) - Positive (+) battery terminal



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 5 CAN JUNCTION CONNECTOR - ECM)

20.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
a.

Disconnect the A32 engine stop and start ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C518964C33
3.25,0.167 3.667,0.417 0.417,0.25 3.656,0.615 3.823,0.615 3.823,0.615 4.115,1.406 true 3.667,2.292 3.833,2.292 3.833,2.292 4.115,1.688 true 3.313,0.208 4.229,0.406 0.917,0.198 10 false G105 0.115,0.115 1.031,0.313 0.917,0.198 10 false *a 3.104,0.521 4.021,0.719 0.917,0.198 10 false CANH*b 3.104,2.208 4.021,2.406 0.917,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector) 		*b to Engine Stop and Start ECU


Standard Resistance:
Tester Connection Condition Specified Condition
G105-9 (CANH) - Positive (+) battery terminal Cable disconnected from negative (-) battery terminal 6 kΩ or higher
G105-20 (CANL) - Positive (+) battery terminal



Result:
Proceed to
OK
NG



OK

REPLACE ENGINE STOP AND START ECU

Click hereEngine / Hybrid System>STOP AND START>ENGINE STOP AND START ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 5 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

21.CHECK FOR SHORT IN CAN BUS WIRES (NO. 5 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU))
a.

Disconnect the G105 No. 5 CAN junction connector.

C518964C31
3.25,0.167 3.667,0.417 0.417,0.25 4,0.615 4.167,0.615 4.167,0.615 4.458,1.406 true 4.031,2.292 4.198,2.292 4.198,2.292 4.479,1.688 true 3.313,0.208 4.229,0.406 0.917,0.198 10 false G105 0.115,0.115 1.031,0.313 0.917,0.198 10 false *a 3.448,0.521 4.365,0.719 0.917,0.198 10 false CANH*b 3.479,2.229 4.396,2.427 0.917,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector) 		*b to Brake Actuator Assembly (Skid control ECU)



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G105-11 (CANH) - G105-22 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

22.CHECK FOR SHORT IN CAN BUS WIRES (NO. 5 CAN JUNCTION CONNECTOR - ECM)

NG

24.CHECK FOR SHORT IN CAN BUS WIRES (NO. 5 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU))
22.CHECK FOR SHORT IN CAN BUS WIRES (NO. 5 CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

C518964C32
3.25,0.167 3.667,0.417 0.417,0.25 3.823,0.615 3.99,0.615 3.99,0.615 4.281,1.406 true 3.833,2.292 4,2.292 4,2.292 4.281,1.688 true 3.313,0.208 4.229,0.406 0.917,0.198 10 false G105 0.115,0.115 1.031,0.313 0.917,0.198 10 false *a 3.26,0.521 4.177,0.719 0.917,0.198 10 false CANH*b 3.302,2.229 4.219,2.427 0.917,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
G105-10 (CANH) - G105-21 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

23.CHECK FOR SHORT IN CAN BUS WIRES (NO. 5 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

NG

25.CHECK FOR SHORT IN CAN BUS WIRES (NO. 5 CAN JUNCTION CONNECTOR - ECM)
23.CHECK FOR SHORT IN CAN BUS WIRES (NO. 5 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
a.

Measure the resistance according to the value(s) in the table below.

C518964C33
3.25,0.167 3.667,0.417 0.417,0.25 3.656,0.615 3.823,0.615 3.823,0.615 4.115,1.406 true 3.667,2.292 3.833,2.292 3.833,2.292 4.115,1.688 true 3.313,0.208 4.229,0.406 0.917,0.198 10 false G105 0.115,0.115 1.031,0.313 0.917,0.198 10 false *a 3.104,0.521 4.021,0.719 0.917,0.198 10 false CANH*b 3.104,2.208 4.021,2.406 0.917,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector) 		*b to Engine Stop and Start ECU


Standard Resistance:
Tester Connection Condition Specified Condition
G105-9 (CANH) - G105-20 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

REPLACE NO. 5 CAN JUNCTION CONNECTOR

NG

26.CHECK FOR SHORT IN CAN BUS WIRES (NO. 5 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
24.CHECK FOR SHORT IN CAN BUS WIRES (NO. 5 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU))
a.

Disconnect the A39 brake actuator assembly (skid control ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

C518964C31
3.25,0.167 3.667,0.417 0.417,0.25 4,0.615 4.167,0.615 4.167,0.615 4.458,1.406 true 4.031,2.292 4.198,2.292 4.198,2.292 4.479,1.688 true 3.313,0.208 4.229,0.406 0.917,0.198 10 false G105 0.115,0.115 1.031,0.313 0.917,0.198 10 false *a 3.448,0.521 4.365,0.719 0.917,0.198 10 false CANH*b 3.479,2.229 4.396,2.427 0.917,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector) 		*b to Brake Actuator Assembly (Skid control ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
G105-11 (CANH) - G105-22 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

REPLACE BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for Gasoline Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 5 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU))

25.CHECK FOR SHORT IN CAN BUS WIRES (NO. 5 CAN JUNCTION CONNECTOR - ECM)
a.

Disconnect the A116 ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

C518964C32
3.25,0.167 3.667,0.417 0.417,0.25 3.823,0.615 3.99,0.615 3.99,0.615 4.281,1.406 true 3.833,2.292 4,2.292 4,2.292 4.281,1.688 true 3.313,0.208 4.229,0.406 0.917,0.198 10 false G105 0.115,0.115 1.031,0.313 0.917,0.198 10 false *a 3.26,0.521 4.177,0.719 0.917,0.198 10 false CANH*b 3.302,2.229 4.219,2.427 0.917,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
G105-10 (CANH) - G105-21 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 5 CAN JUNCTION CONNECTOR - ECM)

26.CHECK FOR SHORT IN CAN BUS WIRES (NO. 5 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
a.

Disconnect the A32 engine stop and start ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C518964C33
3.25,0.167 3.667,0.417 0.417,0.25 3.656,0.615 3.823,0.615 3.823,0.615 4.115,1.406 true 3.667,2.292 3.833,2.292 3.833,2.292 4.115,1.688 true 3.313,0.208 4.229,0.406 0.917,0.198 10 false G105 0.115,0.115 1.031,0.313 0.917,0.198 10 false *a 3.104,0.521 4.021,0.719 0.917,0.198 10 false CANH*b 3.104,2.208 4.021,2.406 0.917,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector) 		*b to Engine Stop and Start ECU


Standard Resistance:
Tester Connection Condition Specified Condition
G105-9 (CANH) - G105-20 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

REPLACE ENGINE STOP AND START ECU

Click hereEngine / Hybrid System>STOP AND START>ENGINE STOP AND START ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 5 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

27.CHECK FOR OPEN IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU))
a.

Disconnect the G105 No. 5 CAN junction connector.

C518964C31
3.25,0.167 3.667,0.417 0.417,0.25 4,0.615 4.167,0.615 4.167,0.615 4.458,1.406 true 4.031,2.292 4.198,2.292 4.198,2.292 4.479,1.688 true 3.313,0.208 4.229,0.406 0.917,0.198 10 false G105 0.115,0.115 1.031,0.313 0.917,0.198 10 false *a 3.448,0.521 4.365,0.719 0.917,0.198 10 false CANH*b 3.479,2.229 4.396,2.427 0.917,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector) 		*b to Brake Actuator Assembly (Skid control ECU)



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G105-11 (CANH) - G105-22 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

28.CHECK FOR OPEN IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - ECM)

NG

29.CHECK FOR OPEN IN CAN BUS WIRE (BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) - NO. 5 CAN JUNCTION CONNECTOR)
28.CHECK FOR OPEN IN CAN BUS WIRE (NO. 5 CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

C518964C32
3.25,0.167 3.667,0.417 0.417,0.25 3.823,0.615 3.99,0.615 3.99,0.615 4.281,1.406 true 3.833,2.292 4,2.292 4,2.292 4.281,1.688 true 3.313,0.208 4.229,0.406 0.917,0.198 10 false G105 0.115,0.115 1.031,0.313 0.917,0.198 10 false *a 3.26,0.521 4.177,0.719 0.917,0.198 10 false CANH*b 3.302,2.229 4.219,2.427 0.917,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
G105-10 (CANH) - G105-21 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

REPLACE NO. 5 CAN JUNCTION CONNECTOR

NG

30.CHECK FOR OPEN IN CAN BUS WIRE (ECM - NO. 5 CAN JUNCTION CONNECTOR)
29.CHECK FOR OPEN IN CAN BUS WIRE (BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) - NO. 5 CAN JUNCTION CONNECTOR)
a.

Reconnect the G105 No. 5 CAN junction connector.


b.
C403312C20
1.479,0.125 1.927,0.354 0.448,0.229 1.635,1.917 1.802,1.917 1.802,1.917 2.073,1.115 true 2.583,1.917 2.417,1.917 2.417,1.917 2.135,1.271 true 0.094,0.083 0.406,0.281 0.313,0.198 10 false *a 1.583,0.167 2.042,0.365 0.458,0.198 10 false A39 1.26,1.844 1.719,2.042 0.458,0.198 10 false CA2L 2.646,1.844 3.104,2.042 0.458,0.198 10 false CA2H
*a Front view of wire harness connector
(to Brake Actuator Assembly [Skid Control ECU])


Disconnect the A39 brake actuator assembly (skid control ECU) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A39-11 (CA2H) - A39-25 (CA2L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

REPLACE BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for Gasoline Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) - NO. 5 CAN JUNCTION CONNECTOR)

30.CHECK FOR OPEN IN CAN BUS WIRE (ECM - NO. 5 CAN JUNCTION CONNECTOR)
a.

Reconnect the G105 No. 5 CAN junction connector.


b.

Disconnect the A116 ECM connector.


c.
C502865C17
1.417,0.167 1.917,0.427 0.5,0.26 1.385,1.406 1.052,0.531 1.052,0.531 0.844,0.531 true 1.469,1.396 1.073,0.281 1.073,0.281 0.896,0.281 true 1.49,0.208 1.948,0.406 0.458,0.198 10 false A116 0.104,0.063 0.563,0.26 0.458,0.198 10 false *a 0.458,0.177 0.917,0.375 0.458,0.198 10 false CACL 0.396,0.458 0.854,0.656 0.458,0.198 10 false CACH
*a Front view of wire harness connector
(to ECM)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A116-6 (CACH) - A116-7 (CACL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (ECM - NO. 5 CAN JUNCTION CONNECTOR)
