DOOR / HATCH  POWER BACK DOOR SYSTEM  B225101  Back Door Closer Switch General Electrical Failure


DESCRIPTION

The back door closer is controlled by the multiplex network door ECU.

The multiplex network door ECU determines the latch position of the back door lock with courtesy light switch assembly based on the combination of signals from the latch switch built into the back door lock with courtesy light switch assembly, back door courtesy switch, sector switch (home position switch) and pawl switch.

This DTC is stored when the back door closer control is being performed and it stops due to the pawl switch or door courtesy switch signal being stuck ON.

DTC No. Detection Item DTC Detection Condition Trouble Area
B225101 Back Door Closer Switch General Electrical Failure During a back door closer close operation, it is detected that the pawl switch or back door courtesy switch is stuck ON.
·

Back door lock with courtesy light switch assembly

·

Harness or connector

·

Multiplex network door ECU



WIRING DIAGRAM

B679258E04
5.896,2.802 6.354,3 0.458,0.198 10 false R30 5.896,2.99 7.031,3.385 1.135,0.396 10 false Multiplex Network Door ECU 0.115,5.865 1.76,6.344 1.646,0.479 10 false Main Body ECU (Multiplex Network Body ECU) 0.125,5.688 0.281,5.885 0.156,0.198 10 false A 1.708,5.448 3.885,5.708 2.177,0.26 10 false Power Distribution Box Assembly 1.708,5.25 2.073,5.458 0.365,0.208 10 false 6F 1,4.781 1.458,4.979 0.458,0.198 10 false BCTY 3.813,4.635 4.125,4.833 0.313,0.198 10 false 2 1.5,4.656 1.781,4.865 0.281,0.208 10 false 19 0.75,3.219 1.063,3.417 0.313,0.198 10 false R14 0.75,3.406 2.635,3.823 1.885,0.417 10 false Back Door Lock with Courtesy Light Switch Assembly 0.844,2.469 2.635,2.719 1.792,0.25 10 false Back Door Courtesy Switch 1.313,1.896 2.115,2.125 0.802,0.229 10 false Pawl Switch 1.292,1.344 2.146,1.552 0.854,0.208 10 false Initial Switch 1.25,0.76 2.125,1 0.875,0.24 10 false Latch Switch 2.573,0.479 3.031,0.677 0.458,0.198 10 false CLS 2.552,1.031 3.01,1.229 0.458,0.198 10 false OPN 2.531,1.594 2.99,1.792 0.458,0.198 10 false FSW 2.573,2.167 3.031,2.365 0.458,0.198 10 false CTY 2.74,2.667 2.958,2.938 0.219,0.271 10 false E 2.979,1.042 3.135,1.24 0.156,0.198 10 false 6 2.979,1.604 3.135,1.802 0.156,0.198 10 false 2 2.979,2.177 3.135,2.375 0.156,0.198 10 false 4 2.979,2.677 3.135,2.875 0.156,0.198 10 false 1 6.063,0.563 6.521,0.76 0.458,0.198 10 false HAF 6.063,1.125 6.521,1.323 0.458,0.198 10 false POS 6.063,1.698 6.677,1.896 0.615,0.198 10 false PAWL 6.073,2.25 6.531,2.448 0.458,0.198 10 false FUL 2.979,0.479 3.135,0.677 0.156,0.198 10 false 3 5.823,0.479 5.979,0.677 0.156,0.198 10 false 5 5.771,1.052 6,1.292 0.229,0.24 10 false 15 5.771,1.604 6.031,1.833 0.26,0.229 10 false 13 5.844,2.177 5.99,2.427 0.146,0.25 10 false 3

CAUTION / NOTICE / HINT

NOTICE:

If the multiplex network door ECU has been replaced, or if any of the connectors has been disconnected, initialize the power back door system.

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR SYSTEM>INITIALIZATION


PROCEDURE

1.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Body Electrical > Back Door > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Half Latch Switch Latch switch signal ON or OFF OFF: Half latch position → full latch position -
Body Electrical > Back Door > Data List
Tester Display
Half Latch Switch
50003 489 1003

Result:
Result Proceed to
The value of Half Latch Switch is OFF A
None of the above conditions are met B



A

2.READ VALUE USING GTS

B

7.INSPECT BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY
2.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Body Electrical > Back Door > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Half Latch Switch Latch switch signal ON or OFF ON: When in the open latch or overstroke position -
Body Electrical > Back Door > Data List
Tester Display
Half Latch Switch
50003 489 1003

Result:
Result Proceed to
The value of Half Latch Switch is ON A
None of the above conditions are met B



A

3.READ VALUE USING GTS

B

7.INSPECT BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY
3.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Body Electrical > Back Door > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Pawl Switch Pawl switch signal ON or OFF OFF: Back door lock motor except open latched -
Body Electrical > Back Door > Data List
Tester Display
Pawl Switch
50003 489 1017

Result:
Result Proceed to
The value of Pawl Switch is OFF A
None of the above conditions are met B



A

4.READ VALUE USING GTS

B

7.INSPECT BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY
4.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Body Electrical > Back Door > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Pawl Switch Pawl switch signal ON or OFF ON: Back door lock motor open-latched -
Body Electrical > Back Door > Data List
Tester Display
Pawl Switch
50003 489 1017

Result:
Result Proceed to
The value of Pawl Switch is ON A
None of the above conditions are met B



A

5.READ VALUE USING GTS

B

7.INSPECT BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY
5.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Body Electrical > Back Door > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Courtesy Switch Back door courtesy switch signal ON or OFF OFF: Full latch position → overstroke position -
Body Electrical > Back Door > Data List
Tester Display
Courtesy Switch
50003 489 1018

Result:
Result Proceed to
The value of Courtesy Switch is OFF A
None of the above conditions are met B



A

6.READ VALUE USING GTS

B

7.INSPECT BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY
6.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Body Electrical > Back Door > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Courtesy Switch Back door courtesy switch signal ON or OFF ON: Open latch position → half latch position -
Body Electrical > Back Door > Data List
Tester Display
Courtesy Switch
50003 489 1018

Result:
Result Proceed to
The value of Courtesy Switch is ON A
None of the above conditions are met B



A

B

7.INSPECT BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY
7.INSPECT BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY

OK

8.CHECK HARNESS AND CONNECTOR (BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY - MULTIPLEX NETWORK DOOR ECU AND BODY GROUND)

NG

REPLACE BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY

8.CHECK HARNESS AND CONNECTOR (BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY - MULTIPLEX NETWORK DOOR ECU AND BODY GROUND)
a.

Disconnect the 4H instrument panel junction block assembly connector.


b.

Disconnect the R14 back door lock with courtesy light switch assembly connector.


c.

Disconnect the R30 multiplex network door ECU connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
R14-3 (CLS) - R30-5 (HAF) Always Below 1 Ω
R14-2 (FSW) - R30-13 (PAWL) Always Below 1 Ω
R14-4 (CTY) - R30-3 (FUL) Always Below 1 Ω
R14-1 (E) - Body ground Always Below 1 Ω
R14-3 (CLS) or R30-5 (HAF) - Body ground Always 10 kΩ or higher
R14-2 (FSW) or R30-13 (PAWL) - Body ground Always 10 kΩ or higher
R14-4 (CTY) or R30-3 (FUL) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

9.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - MULTIPLEX NETWORK DOOR ECU)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

9.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - MULTIPLEX NETWORK DOOR ECU)
a.

Disconnect the 6F power distribution box assembly connector.


b.

Disconnect the R14 back door lock with courtesy light switch assembly connector.


c.

Disconnect the R30 multiplex network door ECU connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
R30-3 (FUL) or 6F-2 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

10.INSPECT POWER DISTRIBUTION BOX ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

10.INSPECT POWER DISTRIBUTION BOX ASSEMBLY
a.

Remove the power distribution box assembly.

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL

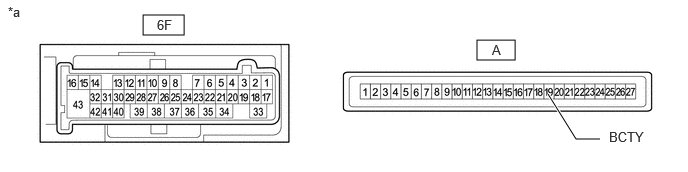

E442251C05
1.49,0.156 1.917,0.365 0.427,0.208 4.969,0.417 5.365,0.625 0.396,0.208 6.25,1.448 6,1.448 6,1.448 5.708,0.979 true 1.635,0.177 1.979,0.406 0.344,0.229 10 false 6F 5.125,0.438 5.469,0.667 0.344,0.229 10 false A 6.344,1.344 6.74,1.573 0.396,0.229 10 false BCTY 0.083,0.042 0.365,0.25 0.281,0.208 10 false *a
*a Component without harness connected
(Power Distribution Box Assembly)
- -



b.

Remove the main body ECU (multiplex network body ECU) from the power distribution box assembly.

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>INSTALLATION


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A-19 (BCTY) - 6F-2 Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

11.READ VALUE USING GTS

NG

11.READ VALUE USING GTS
a.

Disconnect the R30 multiplex network door ECU connector.


b.

Read the Data List according to the display on the GTS.

Body Electrical > Main Body > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Back Door Courtesy Switch Status Back door courtesy light switch signal Close or Open Close: Back door closed
Open: Back door open
-
Body Electrical > Main Body > Data List
Tester Display
Back Door Courtesy Switch Status
50003 449 34
OK:

The display is as specified in the normal condition column.



Result:
Proceed to
OK
NG



OK

NG
