RM36D0EC _51 Engine / Hybrid System _083048 HYBRID / BATTERY CONTROL _0709511 HYBRID CONTROL SYSTEM C

HYBRID / BATTERY CONTROL  HYBRID CONTROL SYSTEM  P1CE213  PCU Interlock Circuit Open  P1CE292  PCU Interlock Performance or Incorrect Operation


DTC SUMMARY

MALFUNCTION DESCRIPTION


The hybrid vehicle control ECU assembly detects that a safety device (interlock) is operated or that there is an open circuit in the detection circuit. (Even if an open circuit occurs while the vehicle is stopped, the system determines that the safety device was operated.)

The cause of this malfunction may be one of the following:

Detection switch system malfunction
·

Inverter with converter assembly malfunction


Low-voltage system malfunction
·

MG ECU malfunction

·

Inverter with converter assembly malfunction

·

CAN communication error between the MG ECU and hybrid vehicle control ECU assembly



INSPECTION DESCRIPTION

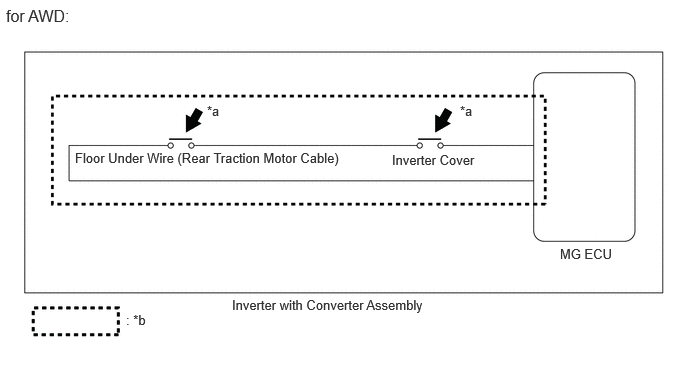

C414429E23
1.313,3.25 1.667,3.458 0.354,0.208 10 false : *b 2.156,1.073 2.51,1.281 0.354,0.208 10 false *a 2.417,3.094 4.531,3.375 2.115,0.281 10 false Inverter with Converter Assembly 5.833,2.563 6.469,2.771 0.635,0.208 10 false MG ECU 4.083,1.583 5.01,1.854 0.927,0.271 10 false Inverter Cover 4.792,1.073 5.146,1.281 0.354,0.208 10 false *a 0.781,1.563 3.865,1.802 3.083,0.24 10 false Floor Under Wire (Rear Traction Motor Cable) 0.063,0.063 1.875,0.313 1.813,0.25 12 false for AWD:

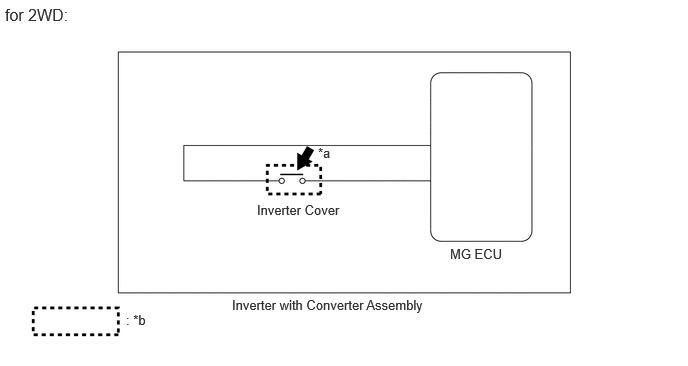

A368984E35
1.313,3.25 1.667,3.458 0.354,0.208 10 false : *b 3.313,1.51 3.667,1.719 0.354,0.208 10 false *a 2.417,3.094 4.531,3.375 2.115,0.281 10 false Inverter with Converter Assembly 4.688,2.563 5.323,2.771 0.635,0.208 10 false MG ECU 2.677,2.104 3.604,2.375 0.927,0.271 10 false Inverter Cover 0.052,0.052 0.979,0.323 0.927,0.271 12 false for 2WD:

System Diagram Location Inspection Content Reason Inspection Step
*a Check whether the safety device (interlock) is connected securely and installed properly (inverter cover, floor under wire (rear traction motor cable), etc.). DTC output due to improper connection or forgetting to install parts. 4, 5
*b Inspect the detection circuit. DTC output due to an open circuit or improper connection (dirt, foreign matter, etc.). 6, 7


DESCRIPTION

Refer to the description for DTC P0A0A13.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>P0A0A13

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Warning Indicate Note
P1CE213 PCU Interlock Circuit Open Interlock signal line opens while the vehicle is being driven (at 5 km/h (3 mph) or more)
(1 trip detection logic)
·

Inverter cover

·

HV Floor under wire (rear traction motor cable)

·

Inverter with converter assembly


Does not come on Master Warning:
Comes on 		SAE Code:
P0A0D
P1CE292 PCU Interlock Performance or Incorrect Operation Either of the following conditions is met:
·

With the vehicle stopped, the inverter cover with a safety device was removed.

·

With the vehicle stopped, the rear traction motor cable (HV floor under wire) with a safety device was removed.

·

With the vehicle stopped, the interlock signal line became open.


(1 trip detection logic)
·

Inverter cover

·

HV Floor under wire (rear traction motor cable)

·

Inverter with converter assembly


Does not come on Master Warning:
Comes on 		SAE Code:
P0A0D

CONFIRMATION DRIVING PATTERN

HINT:

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>UTILITY


1.

Connect the GTS to the DLC3.

2.

Turn the power switch on (IG) and turn the GTS on.

3.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

4.

Turn the power switch off and wait for 2 minutes or more.

5.

Turn the power switch on (IG) and turn the GTS on.

6.

With power switch on (IG) and wait for 5 seconds or more.

7.

Enter the following menus: Powertrain / Hybrid Control / Utility / All Readiness.

8.

Check the DTC judgment result.

HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

If the judgment result shows INCOMPLETE, perform driving pattern again.




WIRING DIAGRAM

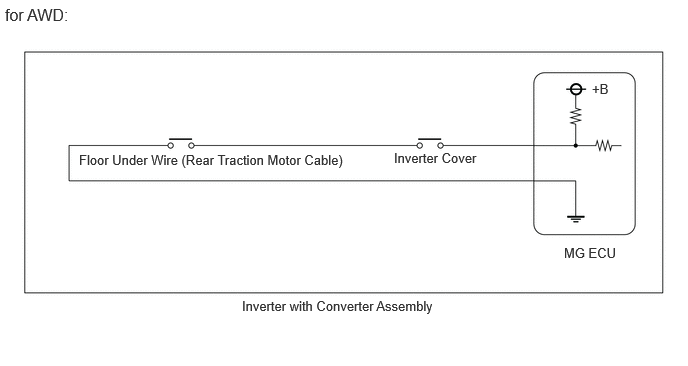

C414430E28
5.875,2.552 6.604,2.802 0.729,0.25 10 false MG ECU 2.521,3.104 4.635,3.333 2.115,0.229 10 false Inverter with Converter Assembly 4.104,1.563 5.073,1.844 0.969,0.281 10 false Inverter Cover 6.167,0.844 6.448,1.083 0.281,0.24 10 false +B 0.823,1.583 3.823,1.813 3,0.229 10 false Floor Under Wire (Rear Traction Motor Cable) 0.052,0.052 1.51,0.354 1.458,0.302 12 false for AWD:

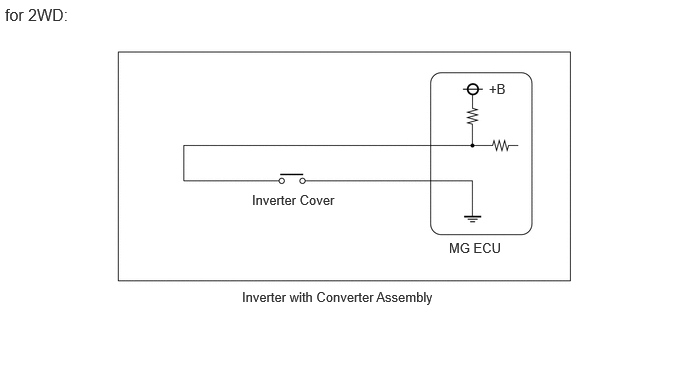

A368983E47
4.677,2.5 5.406,2.75 0.729,0.25 10 false MG ECU 2.521,3.01 4.635,3.24 2.115,0.229 10 false Inverter with Converter Assembly 2.625,2 3.594,2.281 0.969,0.281 10 false Inverter Cover 5.094,0.844 5.375,1.083 0.281,0.24 10 false +B 0.052,0.052 1.021,0.333 0.969,0.281 12 false for 2WD:

CAUTION / NOTICE / HINT

CAUTION:

Refer to the precautions before inspecting high voltage circuit.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>PRECAUTION


NOTICE:
·

After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair manual because this may cause a malfunction.

·

As interlock circuit DTCs or other DTCs may be stored when the power switch is turned on (IG) in the following procedure, make sure to clear the DTCs after inspection.



PROCEDURE

1.CHECK DTC OUTPUT (HYBRID CONTROL, MOTOR GENERATOR)
a.

Connect the GTS to the DLC3.


b.

Turn the power switch on (IG).


c.

Enter the following menus: Powertrain / Hybrid Control and Motor Generator / Trouble Codes.


d.

Check for DTCs.

Powertrain > Hybrid Control > Trouble Codes
50001 397
Powertrain > Motor Generator > Trouble Codes
50001 395
Result:
Result Proceed to
P1CE213 or P1CE292 only is output, or DTCs except the ones in the table below are also output. A
DTCs of hybrid control system in the tables below are output. B
DTCs of motor generator control system in the tables below are output. C


Malfunction Content System Relevant DTC
Microcomputer malfunction Hybrid control system P060647 Hybrid/EV Powertrain Control Module Processor Watchdog / Safety MCU Failure
P060687 Hybrid/EV Powertrain Control Module Processor to Monitoring Processor Missing Message
P060A47 Hybrid/EV Powertrain Control Module Monitoring Processor Watchdog / Safety MCU Failure
P060A87 Hybrid/EV Powertrain Control Module Processor from Monitoring Processor Missing Message
P060B49 Hybrid/EV Powertrain Control Module A/D Processing Internal Electronic Failure
P060B71 Hybrid/EV Powertrain Control Module A/D Processing Actuator Stuck
P060B1C Hybrid/EV Powertrain Control Module A/D Processing Voltage Out of Range
P1CE349 Hybrid/EV Powertrain Control Module Monitoring Processor A/D Processing Internal Electronic Failure
P1CE371 Hybrid/EV Powertrain Control Module Monitoring Processor A/D Processing Actuator Stuck
P1CE31C Hybrid/EV Powertrain Control Module Monitoring Processor A/D Processing Voltage Out of Range
P060A45 Hybrid/EV Powertrain Control Module Monitoring Processor Program Memory Failure
P060A44 Hybrid/EV Powertrain Control Module Monitoring Processor Data Memory Failure
P060A29 Hybrid/EV Powertrain Control Module Monitoring Processor Signal Invalid
P060A49 Hybrid/EV Powertrain Control Module Monitoring Processor Internal Electronic Failure
P0A1B49 Drive Motor "A" Control Module Internal Electronic Failure
Motor generator control system P0A1B1F Generator Control Module Circuit Intermittent
Power source circuit malfunction Hybrid control system P06881F ECM/PCM Power Relay Sense Circuit Intermittent
Communication system malfunction Hybrid control system P312387 Lost Communication with Drive Motor Control Module "A" from Hybrid/EV Control Module Missing Message
System malfunction Hybrid control system P1C9E9F Hybrid/EV System Reset Stuck Off

HINT:
·

P1CE213 or P1CE292 may be output as a result of the malfunction indicated by the DTCs above.

(a)

The chart above is listed in inspection order of priority.

(b)

Check DTCs that are output at the same time by following the listed order. (The main cause of the malfunction can be determined without performing unnecessary inspections.)





e.

Turn the power switch off.



A

2.CLEAR DTC

B

GO TO DTC CHART (HYBRID CONTROL SYSTEM)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>DIAGNOSTIC TROUBLE CODE CHART


C

GO TO DTC CHART (MOTOR GENERATOR CONTROL SYSTEM)

for 2WD:

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>MOTOR GENERATOR CONTROL SYSTEM (for 2WD with LITHIUM-ION BATTERY [Production date from 2021/08])>DIAGNOSTIC TROUBLE CODE CHART

for AWD:

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>MOTOR GENERATOR CONTROL SYSTEM (for AWD with LITHIUM-ION BATTERY)>DIAGNOSTIC TROUBLE CODE CHART


3.CHECK DTC OUTPUT (HYBRID CONTROL)
a.

Connect the GTS to the DLC3.


b.

Turn the power switch on (IG).


c.

Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.


d.

Check if DTCs are output.

Powertrain > Hybrid Control > Trouble Codes
50001 397
Result:
Result Proceed to
P1CE213 or P1CE292 is output again. A
Neither P1CE213 or P1CE292 is output again. B


HINT:

Check if the same DTC is output.



e.

Turn the power switch off.



A

4.CHECK INVERTER COVER

B

4.CHECK INVERTER COVER
4.CHECK INVERTER COVER
CAUTION:

Be sure to wear insulated gloves.


a.

Check that the service plug grip is not installed.

NOTICE:

After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair manual because this may cause a malfunction.



b.

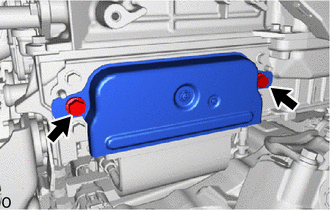

C412483

Check if the inverter cover of the inverter with converter assembly is installed correctly.

OK:

The inverter cover is installed correctly.



Result:
Result Proceed to
OK (for AWD) A
OK (for 2WD) B
NG C



A

5.CHECK FLOOR UNDER WIRE (REAR TRACTION MOTOR CABLE CONNECTOR INSTALLATION CONDITION)

B

6.CHECK INVERTER COVER

C

INSTALL PARTS CORRECTLY

5.CHECK FLOOR UNDER WIRE (REAR TRACTION MOTOR CABLE CONNECTOR INSTALLATION CONDITION)
CAUTION:

Be sure to wear insulated gloves.


a.

Check that the service plug grip is not installed.

NOTICE:

After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair manual because this may cause a malfunction.



b.
C414270

Check if the floor under wire (rear traction motor cable) is connected correctly.

OK:

The floor under wire (rear traction motor cable) is connected correctly.



Result:
Proceed to
OK
NG



OK

6.CHECK INVERTER COVER

NG

INSTALL PARTS CORRECTLY

6.CHECK INVERTER COVER
CAUTION:

Be sure to wear insulated gloves.


a.

Check that the service plug grip is not installed.

NOTICE:

After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair manual because this may cause a malfunction.



b.
C412483

Remove the inverter cover from the inverter with converter assembly.

for 2WD: Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER (for 2WD)>REMOVAL

for AWD: Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER (for AWD)>REMOVAL


c.

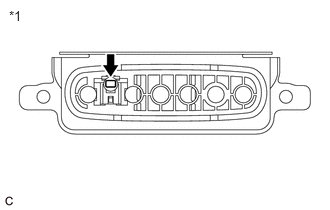

A365619C01
0.094,0.083 0.406,0.24 0.313,0.156 10 false *1
*1 Inverter Cover


Check the condition of the inverter cover interlock.

OK:

Dirt or foreign matter has not entered the connectors and there is no evidence of contamination.



d.

Install the inverter cover.


Result:
Result Proceed to
OK (for AWD) A
OK (for 2WD) B
NG C



A

7.CHECK FLOOR UNDER WIRE (REAR TRACTION MOTOR CABLE CONNECTOR)

B

REPLACE INVERTER WITH CONVERTER ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER (for 2WD)>REMOVAL


C

REPLACE INVERTER COVER

for 2WD:

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER (for 2WD)>REMOVAL

for AWD:

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER (for AWD)>REMOVAL


7.CHECK FLOOR UNDER WIRE (REAR TRACTION MOTOR CABLE CONNECTOR)
CAUTION:

Be sure to wear insulated gloves.


a.

Check that the service plug grip is not installed.

NOTICE:

After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair manual because this may cause a malfunction.



b.
C414270

Disconnect the floor under wire (rear traction motor cable) from the inverter with converter assembly.


c.

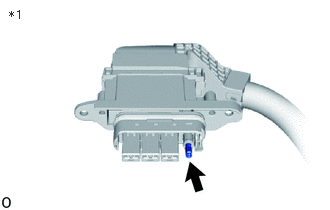

C414428C01
0.094,0.083 0.427,0.25 0.333,0.167 10 *1
*1 Floor Under Wire (Rear Traction Motor Cable)


Check the condition of floor under wire (rear traction motor cable) interlock.

OK:

Dirt or foreign matter has not entered the connectors and there is no evidence of contamination.



d.

Connect the floor under wire (rear traction motor cable) to the inverter with converter assembly.


Result:
Proceed to
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY

for 2WD:

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER (for 2WD)>REMOVAL

for AWD:

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER (for AWD)>REMOVAL


NG

REPLACE FLOOR UNDER WIRE

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>FRAME WIRE>REMOVAL
