RM36D0EC _52 Drivetrain _138817 K121F CVT _0584978 FRONT DIFFERENTIAL OIL SEAL(for LH Side) A

K121F CVT  FRONT DIFFERENTIAL OIL SEAL(for LH Side)  REPLACEMENT


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front drive shaft oil seal LH removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure Necessary Procedure Effect/Inoperative when not Performed Link
CVT fluid ATF thermal degradation estimate reset The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly (Click here)
Air bleed oil pump with motor assembly Stop and start system (Click here)
Front wheel alignment adjustment
1.

Perform "Reset Memory".

2.

Perform acceleration sensor zero point calibration and store system information memorization.


·

VSC disabled or malfunctions

·

DTCs are output

·

Slip indicator light illuminates

·

ABS warning light illuminates


(Click here)

PROCEDURE

Hide 43420H 2.REMOVE FRONT DRIVE SHAFT OIL SEAL LH

a.
C391953N01
0.823,0.594 1.198,0.844 true 0.5,0.5 0.823,0.708 0.323,0.208 10 true SST

Using SST, remove the front drive shaft oil seal LH from the continuously variable transaxle assembly.

SST
09308-00010

NOTICE:

Do not damage the continuously variable transaxle assembly.



Hide 43420H 3.INSTALL FRONT DRIVE SHAFT OIL SEAL LH

a.

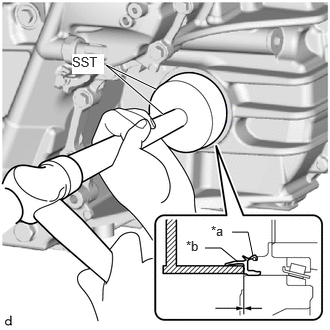

C407601C01
1.698,1.188 1.104,0.677 1.104,0.677 1.625,0.927 true 2.417,2.417 2.583,2.417 2.583,2.417 2.635,2.667 false 2.135,2.583 2.302,2.583 2.302,2.583 2.479,2.729 false 0.75,0.563 1.083,0.771 0.333,0.208 10 true SST 2.198,2.323 2.51,2.479 0.313,0.156 10 false *a 1.938,2.479 2.25,2.635 0.313,0.156 10 false *b
*a Inner Lip
*b Outer Lip


Using SST and a hammer, install a new front drive shaft oil seal LH to the continuously variable transaxle assembly.

SST
09950-70010  (09951-07150)
09649-17010

Standard Depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)


NOTICE:
·
C381409C01
2.292,1.073 2.427,1.073 2.427,1.073 2.427,1.406 false 1.323,1.26 1.552,1.26 false 2.219,0.75 2.583,0.75 false 0.729,0.75 1.094,0.75 false 1.052,0.281 1.333,0.51 0.281,0.229 10 false *a 2.542,0.281 2.823,0.51 0.281,0.229 10 false *b 2.125,0.979 2.406,1.208 0.281,0.229 10 false *c 1.594,1.156 1.875,1.385 0.281,0.229 10 false *c 0.427,0.677 0.885,0.875 0.458,0.198 10 false SST 1.917,0.677 2.375,0.875 0.458,0.198 10 false SST
*a Correct
*b Incorrect
*c Outer Lip


Make sure that the outer lip of the front drive shaft oil seal LH is not pinched by SST.

·

Do not allow foreign matter to attach to the inner lip and outer lip of the front drive shaft oil seal LH.

·

Do not install the front drive shaft oil seal LH at an angle.

·

Do not remove the grease from the inner lip and outer lip of the front drive shaft oil seal LH.
