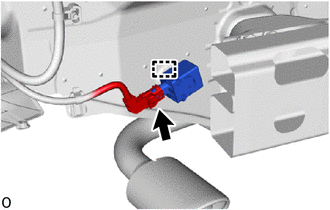

DOOR / HATCH  POWER BACK DOOR WARNING BUZZER  REMOVAL

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the power back door warning buzzer removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Kick door control sensor	Reset connection history	There are cases where the connection history display differs from the vehicle condition	(202409,999999,_59,_083093,_0584672,RM100000002NT2L,)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Lane tracing assist system	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more.	(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power back door function	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
Power door lock control system	If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch.	(202409,999999,_58,_083092,_0403003,RM100000002NS90,)

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Kick door control sensor	Reset connection history	There are cases where the connection history display differs from the vehicle condition	(202409,999999,_59,_083093,_0584672,RM100000002NT2L,)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Stop and start system	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(202409,999999,_51,_083056,_0402418,RM100000002NSFO,)
Lane tracing assist system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Power back door system
Power back door function*	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
Power door lock control system	If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch.	(202409,999999,_58,_083092,_0403003,RM100000002NS90,)
