The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the rear bumper assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary procedures | Effect/Inoperative Function when Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Kick door control sensor | Reset connection history | There are cases where the connection history display differs from the vehicle condition | ( 202409,999999,_59,_083093,_0584672,RM100000002NT2L,)
|
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Learning completes when vehicle is driven
| Effect/Inoperative Function when Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Lane tracing assist system | Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. | ( 201910,999999,_58,_083101,_0401880,RM100000001JE9I,)
|
| Pre-collision system |
Learning completes when vehicle is operated normally
| Effect/Inoperative Function when Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Power back door function | Fully close the back door by hand.
|
( 202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
|
| Power door lock control system | If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. | ( 202409,999999,_58,_083092,_0403003,RM100000002NS90,)
|
| Air conditioning system | After the ignition switch is turned to ON, the servo motor standard position is recognized | - |
| Replaced Part or Performed Procedure | Necessary procedures | Effect/Inoperative Function when Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Kick door control sensor | Reset connection history | There are cases where the connection history display differs from the vehicle condition | ( 202409,999999,_59,_083093,_0584672,RM100000002NT2L,)
|
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Learning completes when vehicle is driven
| Effect/Inoperative Function when Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Stop and start system | Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). | ( 202409,999999,_51,_083056,_0402418,RM100000002NSFO,)
|
| Lane tracing assist system | Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. | ( 201910,999999,_58,_083101,_0401880,RM100000001JE9I,)
|
| Pre-collision system |
Learning completes when vehicle is operated normally
| Effect/Inoperative Function when Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
|
*: w/ Power back door system |
||
| Power back door function* | Fully close the back door by hand.
|
( 202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
|
| Power door lock control system | If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. | ( 202409,999999,_58,_083092,_0403003,RM100000002NS90,)
|
| Air conditioning system | After the ignition switch is turned to ON, the servo motor standard position is recognized | - |
If the bumper is damaged, there is a possibility that the installation area of the blind spot monitor sensor may be deformed and the blind spot monitor system may not operate correctly, so visually inspect the blind spot monitor sensor installation area (frame, stud bolt) to make sure it is not dented or bent.
If the visual inspection finds a problem, check the installation condition of the blind spot monitor sensor, and adjust the installation position of the blind spot monitor sensor as necessary.
1. PRECAUTION (w/ Hands Free Power Back Door)
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL (w/ Hands Free Power Back Door)
Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
If the airbag deploys for any reason, it may cause a serious accident.
for M20D-FKS:
Click hereGeneral>MAINTENANCE>M20D-FKS BATTERY>REMOVAL202409,999999,_V1,_083136,_0403617,RM100000002NHPJ,
52592
3.REMOVE REAR BUMPER SIDE SEAL LH
|
Clip |
|
Screw |

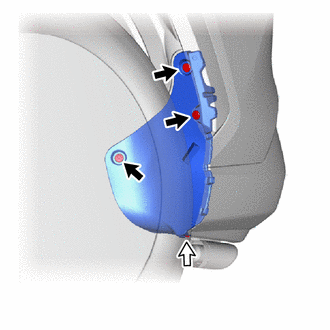

Remove the 3 clips.
Remove the screw and rear bumper side seal LH.
52591
4.REMOVE REAR BUMPER SIDE SEAL RH
|
Clip |
|
Screw |

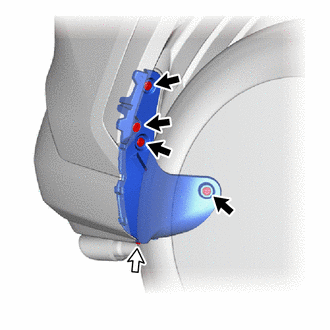

Remove the 4 clips.
Remove the screw and rear bumper side seal RH.
75606A

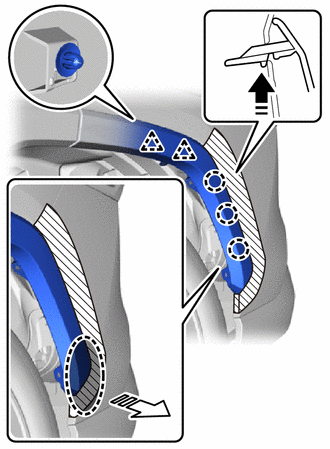

5.REMOVE QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH
except Off Road Package:
|
Screw |
|
Clip |
|
Protective Tape |

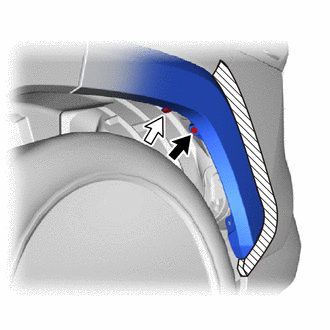

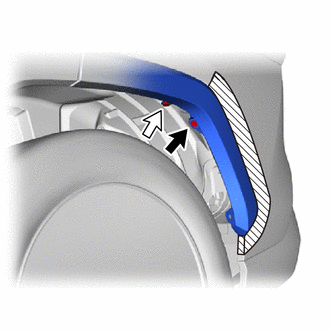

Apply protective tape around the quarter outside moulding sub-assembly LH.
Remove the screw.
Remove the clip.
|
Place Hand Here |
|
Remove in this Direction (1) |
|
Remove in this Direction (2) |

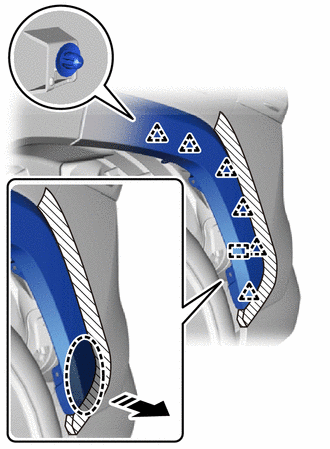

Pull back the edge of the rear wheel house liner LH and detach the claw by pushing the area indicated by the arrow in the illustration with a hand.
Do not apply excessive force when pulling back the rear wheel house liner LH.
To avoid damaging the claw, do not forcibly pull the quarter outside moulding sub-assembly LH.
Detach the clip and disconnect the quarter outside moulding sub-assembly LH.
for Off Road Package:
Apply protective tape around the quarter outside moulding sub-assembly LH.
|
Screw |
|
Clip |
Remove the screw.
Remove the clip.
|
Place Hand Here |
|
Remove in this Direction |
Pull back the edge of the rear wheel house liner LH and detach the clip and guide.
Do not apply excessive force when pulling back the rear wheel house liner LH.
To avoid damaging the clip, do not forcibly pull the quarter outside moulding sub-assembly LH.
Disconnect the quarter outside moulding sub-assembly LH as shown in the illustration.
75605A
6.REMOVE QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH
Use the same procedure described for the LH side.
81498
7.REMOVE REAR COMBINATION LIGHT COVER LH
81497
8.REMOVE REAR COMBINATION LIGHT COVER RH
Use the same procedure described for the LH side.
52599

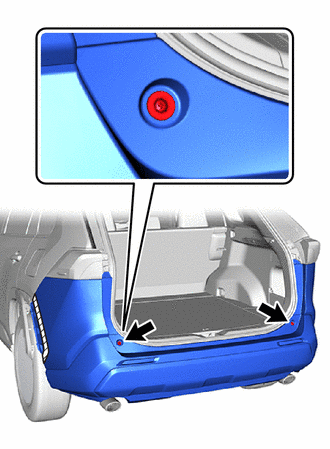

9.REMOVE REAR BUMPER UPPER STOPPER
Remove the 2 rear bumper upper stoppers.
10.REMOVE REAR BUMPER ASSEMBLY
|
Protective Tape |

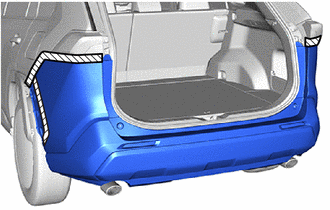

Apply protective tape around the rear bumper assembly.

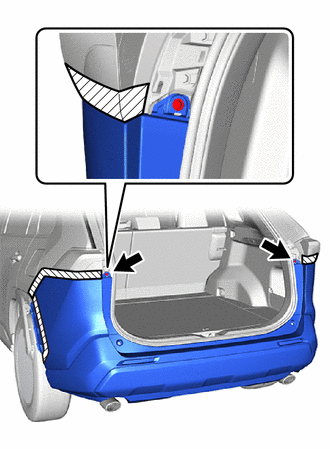

Remove the 2 screws.
Remove the 2 clips.
|
Remove in this Direction |
Pull the quarter outside moulding sub-assembly LH toward the outside as shown in the illustration.
Use the same procedure on the other side.
Remove the clip.
Use the same procedure on the other side.

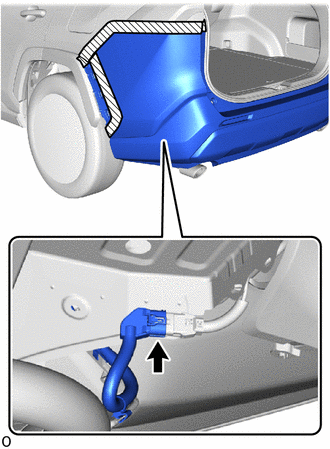

Disconnect the connector.
|
Place Hand Here |
|
Remove in this Direction |

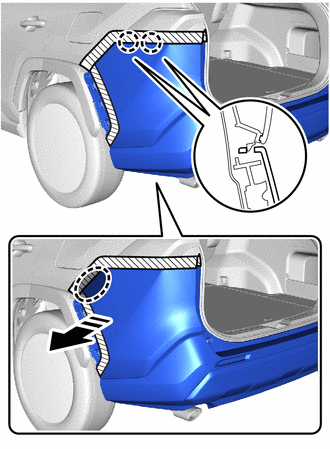

Detach the claw as shown in the illustration.
Use the same procedure on the other side.
|
Place Hand Here |
|
Remove in this Direction |

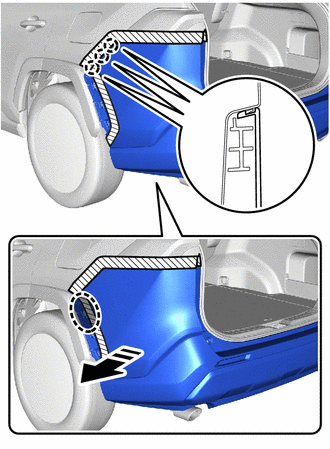

Detach the claw as shown in the illustration.
Use the same procedure on the other side.

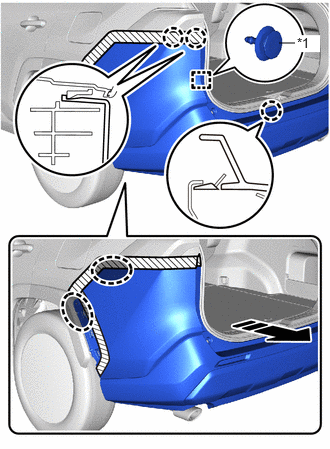

| *1 | Back Door Garnish Retainer |
|
Place Hand Here |
|
Remove in this Direction |
Detach the claw and back door garnish retainer to remove the rear bumper assembly as shown in the illustration.
Use the same procedure on the other side.
