NETWORKING NETWORK GATEWAY ECU INSTALLATION

CAUTION / NOTICE / HINT

NOTICE:: After replacing the network gateway ECU, make sure to perform update ECU security key.

Hide Display 89111 1.INSTALL NETWORK GATEWAY ECU

0,0 0,0 false

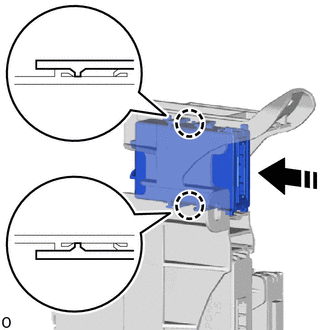

Install in this Direction

Attach the claw to install the network gateway ECU.

Hide Display 82877 2.INSTALL ECU INTEGRATION BOX RH

0,0 0,0 false

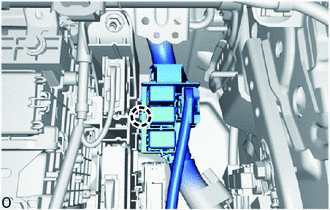

	Nut
	Bolt

Install the ECU integration box RH with the nut and bolt.

Torque:: Nut : 5.5 N*m (56 kgf*cm, 49 in.*lbf); Bolt : 5.5 N*m (56 kgf*cm, 49 in.*lbf)

Attach the 3 wire harness clamps.

Connect the 4 connectors.

Attach the claw and relay holder.

w/ Clearance Warning System:

Connect the connector.

Hide Display 55433B 3.INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

Hide Display 55550 4.INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

Hide Display 55607 5.INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Hide Display 62111C 6.INSTALL COWL SIDE TRIM BOARD RH

Hide Display 67913B 7.INSTALL FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_083106,_0400609,RM1000000029RSX_01_0035,

Hide Display 58810J 8.INSTALL CONSOLE BOX ASSEMBLY

Hide Display 9.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

for A25B-FXS:

for A25D-FXS:

for M20C-FKS:

for M20D-FKS:

for A25F-FXS:

Hide Display 10. UPDATE ECU SECURITY KEY

Hide Display 11. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202409,999999,_V1,_083041,_0402304,RM100000002NY03,
