RM36D0EC _51 Engine / Hybrid System _087038 M20C-FKS FUEL _0417288 FUEL FILTER A

M20C-FKS FUEL FUEL FILTER REPLACEMENT

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel sub-tank sub-assembly removal/installation are shown below.

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative when not Performed	Necessary Procedures	Link
Stop and start system	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(202409,999999,_51,_083056,_0402418,RM100000002NSFO,)
Lane tracing assist system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)
Pre-collision system		(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)

Learning completes when vehicle is operated normally

Effect/Inoperative when not Performed	Necessary Procedures	Link
*: w/ Power back door system
Power back door function*	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
Power door lock control system	If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch.	(202409,999999,_58,_083092,_0403003,RM100000002NS90,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized	-

CAUTION:: ·

Never perform work on fuel system components near any possible ignition sources.

·

Vaporized fuel could ignite, resulting in a serious accident.; ·

Do not perform work on fuel system components without first disconnecting the cable from the negative (-) battery terminal.

·

Sparks could cause vaporized fuel to ignite, resulting in a serious accident.

NOTICE:: Do not disconnect the tube shown in the illustration when disassembling the fuel suction tube with pump and gauge assembly. Doing so will cause reassembly of the fuel suction tube with pump and gauge assembly to be impossible as the tube is pressed into the fuel suction plate sub-assembly.; Click hereEngine / Hybrid System>M20C-FKS (FUEL)>FUEL SYSTEM>PRECAUTION202004,999999,_51,_087038,_0417285,RM100000001MDRK,

PROCEDURE

Hide Display 1. PRECAUTION

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202304,999999,_V1,_083041,_0402304,RM100000002AYZV,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL202409,999999,_V1,_083136,_0418197,RM100000002NHPI,

Hide Display 77020A 3.REMOVE FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY

Click hereEngine / Hybrid System>M20C-FKS (FUEL)>FUEL PUMP>REMOVAL202409,999999,_51,_087038,_0417292,RM100000002NFXP,

Hide Display 83320 4.REMOVE FUEL SENDER GAUGE ASSEMBLY

Click hereEngine / Hybrid System>M20C-FKS (FUEL)>FUEL SENDER GAUGE ASSEMBLY>REMOVAL202409,999999,_51,_087038,_0417296,RM100000002NFXU,

Hide Display 77103 5.REMOVE FUEL SUB-TANK SUB-ASSEMBLY

Detach the 2 claws and disconnect the No. 1 housing sub-assembly from the fuel sub-tank sub-assembly.

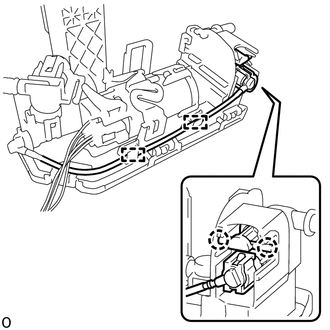

Detach the 2 clamps and disconnect the fuel tube from the fuel sub-tank sub-assembly.

Remove the O-ring from the fuel sub-tank sub-assembly.

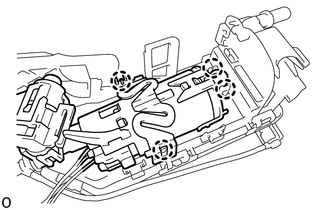

Detach the 4 claws and disconnect the sub-assembly support from the fuel sub-tank sub-assembly.

0,0 0,0 false

	Pull
	Slide

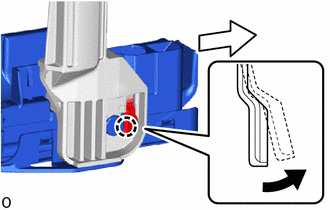

Detach the claw and slide the fuel sub-tank sub-assembly and disconnect it from the fuel suction plate sub-assembly.

Hide Display 77103 6.INSTALL FUEL SUB-TANK SUB-ASSEMBLY

2.427,1.99 2.292,1.99 2.292,1.99 1.969,1.438 true 2.646,0.365 2.51,0.365 2.51,0.365 2.073,1.333 true 2.667,0.26 2.854,0.427 0.188,0.167 10 true *a 2.458,1.896 2.625,2.073 0.167,0.177 10 true *b

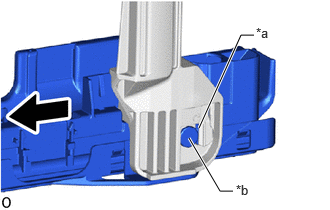

*a	Installation Hole
*b	Protrusion
	Slide

Align the protrusion of the fuel sub-tank sub-assembly with the installation hole of the fuel suction plate sub-assembly and slide the fuel sub-tank sub-assembly to install the fuel suction plate sub-assembly.

Attach the 4 claws and connect the sub-assembly support to the fuel sub-tank sub-assembly.

Apply gasoline to a new O-ring.

Install the O-ring to the No. 1 housing sub-assembly.

Attach the 2 clamps and connect the fuel tube to the fuel sub-tank sub-assembly.

Attach the 2 claws and connect the No. 1 housing sub-assembly to the fuel sub-tank sub-assembly.

Hide Display 83320 7.INSTALL FUEL SENDER GAUGE ASSEMBLY

Click hereEngine / Hybrid System>M20C-FKS (FUEL)>FUEL SENDER GAUGE ASSEMBLY>INSTALLATION202304,999999,_51,_087038,_0417296,RM100000002AAL6_01_0001,

Hide Display 77020A 8.INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY

Click hereEngine / Hybrid System>M20C-FKS (FUEL)>FUEL PUMP>INSTALLATION202304,999999,_51,_087038,_0417292,RM100000002AAKT,

Hide Display 9.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>INSTALLATION202304,999999,_V1,_083136,_0418197,RM100000002A9BV,

Hide Display 10. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202409,999999,_V1,_083041,_0402304,RM100000002NY03,
