LIGHTING (EXT) SWITCH HOUSING INSTALLATION

PROCEDURE

Hide Display 84319 1.INSTALL STEERING WHEEL SWITCH HOUSING

If reusing the steering wheel switch housing:

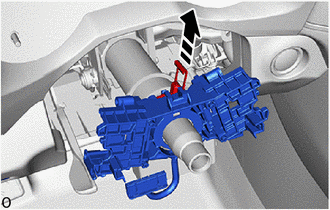

Using pliers, support the band clamp while loosened and set the steering wheel switch housing.

ii.

0,0 0,0 false

Install in this Direction

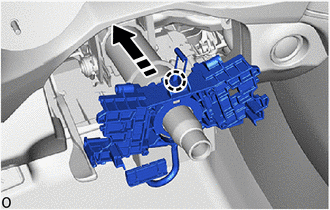

Attach the claw and install the steering wheel switch housing as shown in the illustration.

iii.

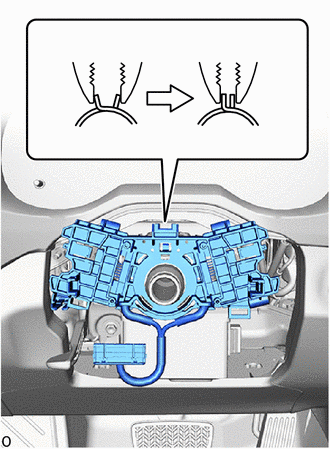

Tighten the band clamp.

If installing a new steering wheel switch housing:

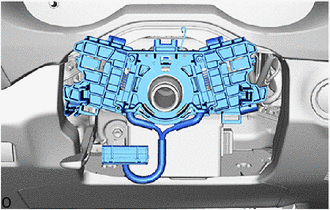

Set the steering wheel switch in place.

ii.

0,0 0,0 false

Install in this Direction

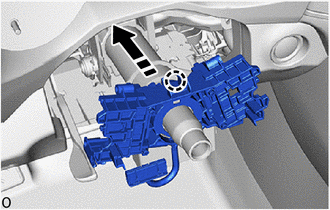

Attach the claw and install the steering wheel switch housing as shown in the illustration.

iii.

0,0 0,0 false

Remove in this Direction

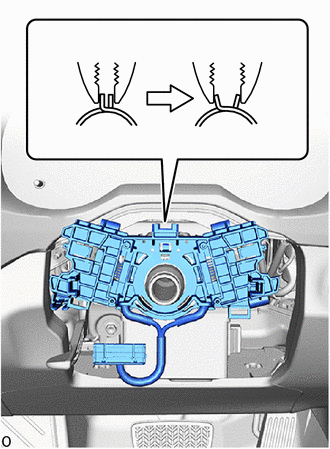

Remove the pin and tighten the band clamp.

Hide Display 84329 2.INSTALL TURN SIGNAL SWITCH

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT DIMMER SWITCH>INSTALLATION201910,999999,_59,_083096,_0402639,RM100000001JJX0_01_0001,

Hide Display 84650 3.INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>WIPER SWITCH>INSTALLATION201910,999999,_59,_083109,_0402379,RM100000001JI49_01_0001,

Hide Display 4.INSTALL SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SPIRAL CABLE>INSTALLATION202405,202409,_58,_083100,_0400494,RM100000002LW6I,202409,999999,_58,_083100,_0400494,RM100000002NG0A,

Hide Display 5.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

for M20C-FKS:

Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>INSTALLATION202304,999999,_V1,_083136,_0418197,RM100000002A9BV,

for M20D-FKS:

Click hereGeneral>MAINTENANCE>M20D-FKS BATTERY>INSTALLATION202304,999999,_V1,_083136,_0403617,RM100000002A9CC,

for A25B-FXS:

Click hereGeneral>MAINTENANCE>A25B-FXS AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_083136,_0403618,RM100000002A9CD,

for A25D-FXS:

Click hereGeneral>MAINTENANCE>A25D-FXS AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_083136,_0477834,RM100000002A9D9,

for A25F-FXS:

Click hereGeneral>MAINTENANCE>A25F-FXS AUXILIARY BATTERY (Production date from 2021/08)>INSTALLATION202304,999999,_V1,_083136,_0486275,RM100000002A9DH,

Hide Display 6. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202405,202409,_V1,_083041,_0402304,RM100000002LTUF,202409,999999,_V1,_083041,_0402304,RM100000002NY03,

Hide Display 7. PERFORM DIAGNOSTIC SYSTEM CHECK

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>DTC CHECK / CLEAR202405,999999,_58,_083100,_0694959,RM100000002LV1B,

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>DTC CHECK / CLEAR202405,202409,_58,_083100,_0694957,RM100000002LV48,202409,999999,_58,_083100,_0694957,RM100000002NSO1,

Hide Display 8.CHECK SRS WARNING LIGHT

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>OPERATION CHECK202405,999999,_58,_083100,_0694959,RM100000002LV17,

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>OPERATION CHECK202405,202409,_58,_083100,_0694957,RM100000002LV45,202409,999999,_58,_083100,_0694957,RM100000002NSNY,

Hide Display 9.PERFORM SYSTEM INITIALIZATION AND CALIBRATION

Click hereVehicle Exterior>LIGHTING (EXT)>SWITCH HOUSING>REMOVAL202405,202409,_59,_083096,_0402640,RM100000002LWG9,202409,999999,_59,_083096,_0402640,RM100000002NTEQ,
