RM36D0EC _58 Vehicle Interior _083097 METER / GAUGE / DISPLAY _0694858 METER / GAUGE SYSTEM(for SFTM Made) J

METER / GAUGE / DISPLAY  METER / GAUGE SYSTEM(for SFTM Made)  Entire Combination Meter does not Operate


DESCRIPTION

This circuit is the power source circuit for the combination meter assembly. This circuit provides two types of power sources; one is a constant power source, and the other is an IG power source.

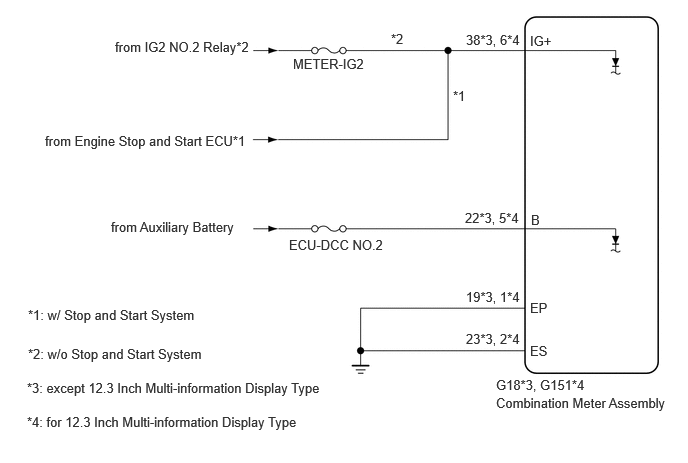

WIRING DIAGRAM

C408706E15
0.469,1.385 2.948,1.885 2.479,0.5 10 false from Engine Stop and Start ECU*1 1.198,0.406 2.625,0.813 1.427,0.406 10 false from IG2 NO.2 Relay*2 3.01,2.469 4.438,2.875 1.427,0.406 10 false ECU-DCC NO.2 4.719,0.917 5.031,1.115 0.313,0.198 10 false *1 4.073,0.323 4.385,0.521 0.313,0.198 10 false *2 5.167,4.115 7.125,4.677 1.958,0.563 10 false Combination Meter Assembly 5.167,3.927 6.156,4.26 0.99,0.333 10 false G18*3, G151*4 5.521,0.344 5.979,0.542 0.458,0.198 10 false IG+ 4.854,0.333 5.76,0.531 0.906,0.198 10 false 38*3, 6*4 5.531,2.208 5.99,2.406 0.458,0.198 10 false B 4.844,2.188 5.781,2.406 0.938,0.219 10 false 22*3, 5*4 5.521,3.125 5.979,3.323 0.458,0.198 10 false EP 4.854,3.448 5.813,3.75 0.958,0.302 10 false 23*3, 2*4 3.052,0.583 4.479,0.99 1.427,0.406 10 false METER-IG2 1.156,2.281 2.958,2.771 1.802,0.49 10 false from Auxiliary Battery 0.292,3.604 2.948,3.958 2.656,0.354 10 false *2: w/o Stop and Start System 0.292,3.198 2.948,3.552 2.656,0.354 10 false *1: w/ Stop and Start System 5.521,3.573 5.979,3.771 0.458,0.198 10 false ES 4.854,3.01 5.781,3.198 0.927,0.188 10 false 19*3, 1*4 0.281,3.958 3.708,4.219 3.427,0.26 10 false *3: except 12.3 Inch Multi-information Display Type 0.281,4.313 3.323,4.573 3.042,0.26 10 false *4: for 12.3 Inch Multi-information Display Type

CAUTION / NOTICE / HINT

NOTICE:
·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

Inspect the fuses of circuits related to this system before performing the following procedure.



PROCEDURE

1.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - BATTERY AND BODY GROUND)
except 12.3 Inch Multi-information Display Type

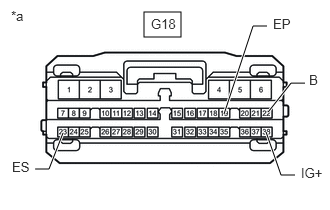

C406366C03
1.5,0.125 1.885,0.385 0.385,0.26 3.073,1.823 2.927,1.823 2.927,1.823 2.771,1.375 true 0.365,1.76 0.51,1.76 0.51,1.76 0.656,1.385 true 2.792,1.167 3.031,0.865 3.031,0.865 3.177,0.865 true 2.333,1.188 2.635,0.271 2.635,0.271 2.781,0.271 true 0.115,0.083 0.427,0.24 0.313,0.156 10 false *a 1.573,0.167 1.885,0.323 0.313,0.156 10 false G18 3.135,1.719 3.427,1.979 0.292,0.26 10 false IG+ 0.125,1.656 0.615,1.854 0.49,0.198 10 false ES 2.844,0.167 3.333,0.365 0.49,0.198 10 false EP 3.219,0.75 3.417,0.948 0.198,0.198 10 false B
*a Front view of wire harness connector
(to Combination Meter Assembly)

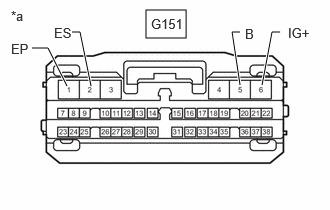

for 12.3 Inch Multi-information Display Type
E498576C15
1.521,0.104 1.938,0.396 0.417,0.292 2.5,0.333 2.417,0.333 2.417,0.333 2.5,0.885 true 0.75,0.333 0.833,0.333 0.833,0.333 0.948,0.896 true 2.917,0.333 2.833,0.333 2.833,0.333 2.729,0.885 true 0.333,0.5 0.5,0.5 0.5,0.5 0.698,0.896 true 0.115,0.083 0.427,0.24 0.313,0.156 10 false *a 1.573,0.167 2.083,0.365 0.51,0.198 10 false G151 0.563,0.26 1.052,0.458 0.49,0.198 10 false ES 2.552,0.271 3.042,0.469 0.49,0.198 10 false B 3,0.26 3.323,0.771 0.323,0.51 10 false IG+ 0.115,0.427 0.417,0.667 0.302,0.24 10 false EP
*a Front view of wire harness connector
(to Combination Meter Assembly)


a.

Disconnect the combination meter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
except 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G18-19 (EP) - Body ground Always Below 1 Ω
G18-23 (ES) - Body ground Always Below 1 Ω

for 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G151-1 (EP) - Body ground Always Below 1 Ω
G151-2 (ES) - Body ground Always Below 1 Ω



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
except 12.3 Inch Multi-information Display Type
Tester Connection Switch Condition Specified Condition

*1: w/ Stop and Start System

*2: w/o Stop and Start System

G18-38 (IG+) - Body ground Ignition switch off Below 1 V
Ignition switch ON 10.5 to 16 V*1
11 to 14 V*2
G18-22 (B) - Body ground Ignition switch off 11 to 14 V

for 12.3 Inch Multi-information Display Type
Tester Connection Switch Condition Specified Condition

*1: w/ Stop and Start System

*2: w/o Stop and Start System

G151-6 (IG+) - Body ground Ignition switch off Below 1 V
Ignition switch ON 10.5 to 16 V*1
11 to 14 V*2
G151-5 (B) - Body ground Ignition switch off 11 to 14 V



Result:
Result Proceed to
OK A
NG (IG+ terminal) (w/ Stop and Start System) B
NG (IG+ terminal) (w/o Stop and Start System) C
NG (Other terminal)



A

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


B

GO TO STOP AND START SYSTEM

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>Backup Boost Converter Circuit


C

REPAIR OR REPLACE HARNESS OR CONNECTOR
