METER / GAUGE / DISPLAY  METER / GAUGE SYSTEM(for GTMC Made)  B150819  Turn Signal/Hazard Flasher Circuit Current Above Threshold


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area
B150819 Turn Signal/Hazard Flasher Circuit Current Above Threshold
Diagnosis Condition:

Auxiliary battery voltage is 10 V or more


Malfunction Status:
·

Short in front turn signal light circuit

·

Short in side turn signal light circuit

·

Short in rear turn signal light circuit


·

Harness or connector

·

Headlight unit assembly

·

Headlight Cord

·

Outer rear view mirror assembly

·

Side turn signal light assembly

·

Rear combination light socket and wire

·

Combination meter assembly



WIRING DIAGRAM

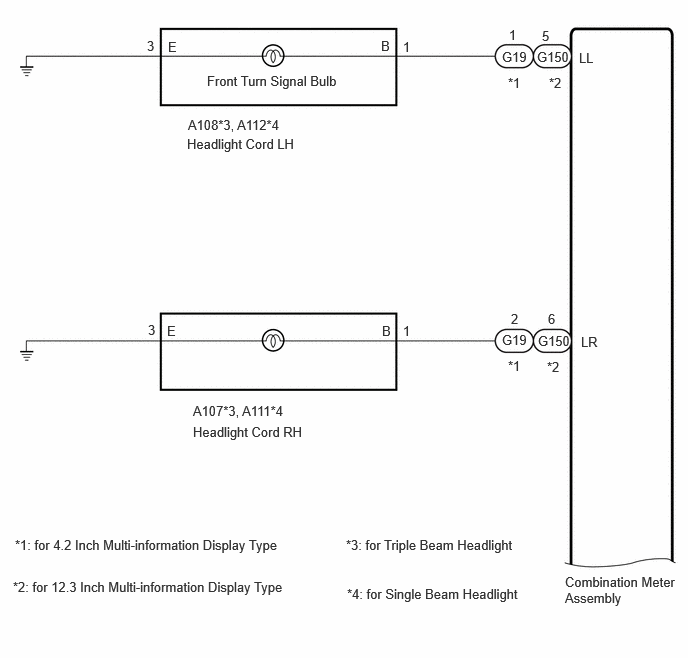

B724433E03
1.75,0.406 2.208,0.604 0.458,0.198 10 false E 3.969,0.396 4.427,0.594 0.458,0.198 10 false B 6.031,0.521 6.49,0.719 0.458,0.198 10 false LL 5.229,0.51 5.688,0.708 0.458,0.198 10 false G19 5.594,0.51 6.052,0.708 0.458,0.198 10 false G150 5.302,0.281 5.76,0.479 0.458,0.198 10 false 1 5.646,0.292 6.104,0.49 0.458,0.198 10 false 5 1.531,0.396 1.99,0.594 0.458,0.198 10 false 3 1.74,3.365 2.198,3.563 0.458,0.198 10 false E 3.979,3.365 4.438,3.563 0.458,0.198 10 false B 4.198,0.406 4.656,0.604 0.458,0.198 10 false 1 2.156,0.76 4.719,1 2.563,0.24 10 false Front Turn Signal Bulb 1.948,1.417 4.51,1.656 2.563,0.24 10 false Headlight Cord LH 5.885,5.979 7.063,6.49 1.177,0.51 10 false Combination Meter Assembly 0.156,5.594 3.333,5.844 3.177,0.25 10 false *1: for 4.2 Inch Multi-information Display Type 0.135,6.031 3.26,6.302 3.125,0.271 10 false *2: for 12.3 Inch Multi-information Display Type 3.604,5.594 5.771,6.063 2.167,0.469 10 false *3: for Triple Beam Headlight 3.615,6.104 5.792,6.406 2.177,0.302 10 false *4: for Single Beam Headlight 4.198,3.365 4.656,3.563 0.458,0.198 10 false 1 1.542,3.354 2,3.552 0.458,0.198 10 false 3 1.958,1.219 3.229,1.479 1.271,0.26 10 false A108*3, A112*4 2.01,4.198 3.281,4.458 1.271,0.26 10 false A107*3, A111*4 2.01,4.417 4.573,4.656 2.563,0.24 10 false Headlight Cord RH 5.292,0.781 5.604,0.979 0.313,0.198 10 false *1 5.292,3.729 5.604,3.927 0.313,0.198 10 false *1 5.719,0.781 6.031,0.979 0.313,0.198 10 false *2 5.698,3.74 6.01,3.938 0.313,0.198 10 false *2 6.052,3.479 6.51,3.677 0.458,0.198 10 false LR 5.708,3.24 6.031,3.635 0.323,0.396 10 false 6 5.323,3.24 5.646,3.635 0.323,0.396 10 false 2 5.229,3.458 5.688,3.656 0.458,0.198 10 false G19 5.604,3.469 6.063,3.667 0.458,0.198 10 false G150

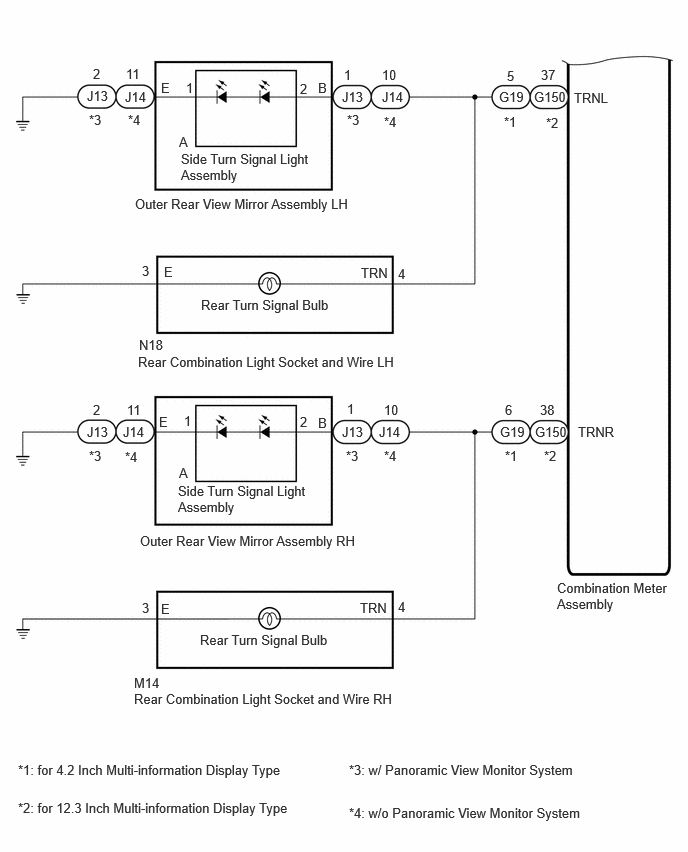

B724434E03
5.802,6.042 7.021,6.583 1.219,0.542 10 false Combination Meter Assembly 5.979,0.938 6.594,1.135 0.615,0.198 10 false TRNL 5.563,0.927 6.177,1.125 0.615,0.198 10 false G150 5.198,0.927 5.656,1.125 0.458,0.198 10 false G19 5.281,0.708 5.74,0.906 0.458,0.198 10 false 5 5.635,0.698 6.25,0.896 0.615,0.198 10 false 37 1.406,2.042 6.604,2.24 5.198,0.198 10 false Outer Rear View Mirror Assembly LH 3.125,0.844 3.281,1.042 0.156,0.198 10 false 2 3.313,0.833 3.469,1.031 0.156,0.198 10 false B 1.938,0.833 2.094,1.031 0.156,0.198 10 false 1 1.865,1.396 2.063,1.594 0.198,0.198 10 false A 1.885,1.573 3.313,2.208 1.427,0.635 10 false Side Turn Signal Light Assembly 2.094,3.094 5.302,3.292 3.208,0.198 10 false Rear Turn Signal Bulb 1.438,3.688 4.531,4.104 3.094,0.417 10 false Rear Combination Light Socket and Wire LH 1.448,3.51 1.906,3.708 0.458,0.198 10 false N18 1.479,2.74 1.635,2.938 0.156,0.198 10 false 3 4.146,2.771 4.385,3.135 0.24,0.365 10 false 4 3.76,2.76 4.219,2.958 0.458,0.198 10 false TRN 1.708,2.75 1.927,3.083 0.219,0.333 10 false E 0.188,7.938 3.552,8.188 3.365,0.25 10 false *1: for 4.2 Inch Multi-information Display Type 0.188,8.333 3.135,8.594 2.948,0.26 10 false *2: for 12.3 Inch Multi-information Display Type 3.635,8.385 6.802,8.667 3.167,0.281 10 false *4: w/o Panoramic View Monitor System 1.302,0.927 1.76,1.125 0.458,0.198 10 false J14 3.979,0.927 4.438,1.125 0.458,0.198 10 false J14 3.979,0.698 4.594,0.896 0.615,0.198 10 false 10 1.313,0.688 1.927,0.885 0.615,0.198 10 false 11 0.906,0.917 1.365,1.115 0.458,0.198 10 false J13 3.563,0.927 4.021,1.125 0.458,0.198 10 false J13 0.969,0.688 1.427,0.885 0.458,0.198 10 false 2 3.583,0.698 4.073,0.896 0.49,0.198 10 false 1 3.635,7.938 6.802,8.219 3.167,0.281 10 false *3: w/ Panoramic View Monitor System 5.25,1.188 5.563,1.385 0.313,0.198 10 false *1 5.26,4.667 5.573,4.865 0.313,0.198 10 false *1 5.688,1.198 6,1.396 0.313,0.198 10 false *2 5.667,4.667 5.979,4.865 0.313,0.198 10 false *2 6.021,4.417 6.635,4.615 0.615,0.198 10 false TRNR 5.208,4.417 5.667,4.615 0.458,0.198 10 false G19 5.573,4.417 6.188,4.615 0.615,0.198 10 false G150 5.26,4.188 5.542,4.417 0.281,0.229 10 false 6 5.625,4.188 6.24,4.385 0.615,0.198 10 false 38 3.615,1.167 3.927,1.365 0.313,0.198 10 false *3 0.927,4.667 1.24,4.865 0.313,0.198 10 false *3 4,1.188 4.313,1.385 0.313,0.198 10 false *4 1.333,1.167 1.646,1.365 0.313,0.198 10 false *4 1.458,5.552 6.656,5.75 5.198,0.198 10 false Outer Rear View Mirror Assembly RH 1.281,4.417 1.74,4.615 0.458,0.198 10 false J14 3.948,4.417 4.406,4.615 0.458,0.198 10 false J14 3.563,4.417 4.021,4.615 0.458,0.198 10 false J13 0.906,4.417 1.365,4.615 0.458,0.198 10 false J13 3.604,4.667 3.917,4.865 0.313,0.198 10 false *3 0.927,1.167 1.24,1.365 0.313,0.198 10 false *3 1.302,4.677 1.615,4.875 0.313,0.198 10 false *4 4,4.667 4.313,4.865 0.313,0.198 10 false *4 3.615,4.177 4.104,4.375 0.49,0.198 10 false 1 4,4.188 4.615,4.385 0.615,0.198 10 false 10 1.323,4.188 1.938,4.385 0.615,0.198 10 false 11 0.969,4.188 1.427,4.385 0.458,0.198 10 false 2 3.313,4.323 3.552,4.583 0.24,0.26 10 false B 3.125,4.313 3.281,4.51 0.156,0.198 10 false 2 1.677,0.833 1.833,1.031 0.156,0.198 10 false E 1.656,4.313 1.813,4.51 0.156,0.198 10 false E 1.917,4.302 2.115,4.615 0.198,0.313 10 false 1 1.865,4.844 2.063,5.042 0.198,0.198 10 false A 1.854,5.031 3.281,5.667 1.427,0.635 10 false Side Turn Signal Light Assembly 1.396,7.198 4.49,7.615 3.094,0.417 10 false Rear Combination Light Socket and Wire RH 1.396,7.031 1.854,7.229 0.458,0.198 10 false M14 2.083,6.583 5.292,6.781 3.208,0.198 10 false Rear Turn Signal Bulb 3.75,6.25 4.208,6.448 0.458,0.198 10 false TRN 4.146,6.24 4.385,6.604 0.24,0.365 10 false 4 1.479,6.25 1.635,6.448 0.156,0.198 10 false 3 1.677,6.26 1.896,6.594 0.219,0.333 10 false E

CAUTION / NOTICE / HINT

NOTICE:
·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

Bulb Type Turn Light:

Inspect the bulbs before performing the following procedure.



PROCEDURE

1.INSPECT LIGHTS
a.

Inspect the illumination of each turn signal light.


Result:
Result Proceed to
Front turn signal light LH does not blink. A
Front turn signal light RH does not blink. B
Rear turn signal light LH and side turn signal light LH do not blink. C
Rear turn signal light RH and side turn signal light RH do not blink. D



A

2.CHECK HEADLIGHT CORD LH

B

4.CHECK HEADLIGHT CORD RH

C

6.CHECK OUTER REAR VIEW MIRROR ASSEMBLY LH

D

10.CHECK OUTER REAR VIEW MIRROR ASSEMBLY RH
2.CHECK HEADLIGHT CORD LH
a.

Disconnect the A108*1 or A112*2 headlight cord LH connector.

*1: for Triple Beam Headlight

*2: for Single Beam Headlight





Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

3.CHECK HARNESS AND CONNECTOR (FRONT LH SIDE CIRCUIT)

B

3.CHECK HARNESS AND CONNECTOR (FRONT LH SIDE CIRCUIT)

*1: for 4.2 Inch Multi-information Display Type

*2: for 12.3 Inch Multi-information Display Type

*3: for Triple Beam Headlight

*4: for Single Beam Headlight


a.

Disconnect the G19*1 or G150*2 combination meter assembly connector.


b.

Disconnect the A108*3 or A112*4 headlight cord LH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
for 4.2 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G19-1 (LL) or A108-1 (B)*3 or A112-1 (B)*4 - Body ground Always 10 kΩ or higher

for 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G150-5 (LL) or A108-1 (B)*3 or A112-1 (B)*4 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK HEADLIGHT CORD RH
a.

Disconnect the A107*1 or A111*2 headlight cord RH connector.

*1: for Triple Beam Headlight

*2: for Single Beam Headlight





Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

5.CHECK HARNESS AND CONNECTOR (FRONT RH SIDE CIRCUIT)

B

5.CHECK HARNESS AND CONNECTOR (FRONT RH SIDE CIRCUIT)

*1: for 4.2 Inch Multi-information Display Type

*2: for 12.3 Inch Multi-information Display Type

*3: for Triple Beam Headlight

*4: for Single Beam Headlight


a.

Disconnect the G19*1 or G150*2 combination meter assembly connector.


b.

Disconnect the A107*3 or A111*4 headlight cord RH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
for 4.2 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G19-2 (LR) or A107-1 (B)*3 or A111-1 (B)*4 - Body ground Always 10 kΩ or higher

for 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G150-6 (LR) or A107-1 (B)*3 or A111-1 (B)*4 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.CHECK OUTER REAR VIEW MIRROR ASSEMBLY LH
a.

Disconnect the J13*2 or J14*1 outer rear view mirror assembly LH connector.

*1: w/o Panoramic View Monitor System

*2: w/ Panoramic View Monitor System





Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

7.CHECK REAR COMBINATION LIGHT SOCKET AND WIRE LH

B

9.CHECK SIDE TURN SIGNAL LIGHT ASSEMBLY LH
7.CHECK REAR COMBINATION LIGHT SOCKET AND WIRE LH
a.

Disconnect the N18 rear combination light socket and wire LH connector.




Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

8.CHECK HARNESS AND CONNECTOR (REAR LH SIDE CIRCUIT)

B

8.CHECK HARNESS AND CONNECTOR (REAR LH SIDE CIRCUIT)

*1: for 4.2 Inch Multi-information Display Type

*2: for 12.3 Inch Multi-information Display Type

*3: w/o Panoramic View Monitor System

*4: w/ Panoramic View Monitor System


a.

Disconnect the G19*1 or G150*2 combination meter assembly connector.


b.

Disconnect the N18 rear combination light socket and wire LH connector.


c.

Disconnect the J13*4 or J14*3 outer rear view mirror assembly LH connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
for 4.2 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G19-5 (TRNL) or N18-4 (TRN) or J14-5 (B)*3 - Body ground Always 10 kΩ or higher

for 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G150-37 (TRNL) or N18-4 (TRN) or J13-1 (B)*4 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

9.CHECK SIDE TURN SIGNAL LIGHT ASSEMBLY LH

b.

Reconnect the J13*2 or J14*1 outer rear view mirror assembly LH connector.

*1: w/o Panoramic View Monitor System

*2: w/ Panoramic View Monitor System





Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

B

10.CHECK OUTER REAR VIEW MIRROR ASSEMBLY RH
a.

Disconnect the I13*2 or I14*1 outer rear view mirror assembly RH connector.

*1: w/o Panoramic View Monitor System

*2: w/ Panoramic View Monitor System





Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

11.CHECK REAR COMBINATION LIGHT SOCKET AND WIRE RH

B

13.CHECK SIDE TURN SIGNAL LIGHT ASSEMBLY RH
11.CHECK REAR COMBINATION LIGHT SOCKET AND WIRE RH
a.

Disconnect the M14 rear combination light socket and wire RH connector.




Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

12.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR COMBINATION LIGHT SOCKET AND WIRE RH)

B

12.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR COMBINATION LIGHT SOCKET AND WIRE RH)

*1: for 4.2 Inch Multi-information Display Type

*2: for 12.3 Inch Multi-information Display Type

*3: w/o Panoramic View Monitor System

*4: w/ Panoramic View Monitor System


a.

Disconnect the G19*1 or G150*2 combination meter assembly connector.


b.

Disconnect the M14 rear combination light socket and wire RH connector.


c.

Disconnect the I13*4 or I14*3 outer rear view mirror assembly RH connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
for 4.2 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G19-6 (TRNR) or M14-4 (TRN) or I14-5 (B)*3 - Body ground Always 10 kΩ or higher

for 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G150-38 (TRNR) or M14-4 (TRN) or I13-1 (B)*4 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

13.CHECK SIDE TURN SIGNAL LIGHT ASSEMBLY RH

b.

Reconnect the I13*2 or I14*1 outer rear view mirror assembly RH connector.

*1: w/o Panoramic View Monitor System

*2: w/ Panoramic View Monitor System





Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

B
