RM36D0EC _58 Vehicle Interior _083095 LIGHTING (INT) _0418875 CONSOLE BOX LIGHT(for Front) A

LIGHTING (INT) CONSOLE BOX LIGHT(for Front) REMOVAL

PROCEDURE

Hide Display 33504F 1.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

a.

for CVT:

·

K121: Click hereDrivetrain>K121 (CVT)>SHIFT LEVER KNOB>REMOVAL202304,999999,_52,_138176,_0579407,RM1000000029ENY,

·

K121F: Click hereDrivetrain>K121F (CVT)>SHIFT LEVER KNOB>REMOVAL202304,999999,_52,_138817,_0584991,RM1000000029ILS,

b.

for HV Model:

·

P710: Click hereDrivetrain>P710 (HYBRID TRANSMISSION / TRANSAXLE)>SHIFT LEVER KNOB>REMOVAL201910,999999,_52,_083113,_0400521,RM100000001J8EL,

Hide Display 58804A 2.REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_083106,_0400608,RM1000000029Q1K_01_0002,

Hide Display 861C0 3.REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (w/ Wireless Charger)

Click hereVehicle Interior>POWER OUTLETS (INT)>WIRELESS CHARGER ASSEMBLY>REMOVAL202304,999999,_58,_083105,_0578541,RM1000000029HC0_01_0003,

Hide Display 58813 4.REMOVE UPPER CONSOLE BOX (w/o Wireless Charger)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_083106,_0400608,RM1000000029Q1K_01_0004,

Hide Display 58805C 5.REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_083106,_0400608,RM1000000029Q1K_01_0005,

Hide Display 55900 6.REMOVE AIR CONDITIONING CONTROL ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL>REMOVAL201910,999999,_58,_083104,_0403077,RM100000001JNHR,

Hide Display 55434B 7.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0007,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0007,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0007,

Hide Display 81080J 8.REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

a.

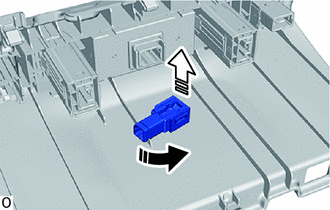

E405793C01

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

Turn in the direction indicated by the arrow (1) shown in the illustration.

b.

Pull in the direction indicated by the arrow (2) shown in the illustration and remove the No. 1 interior illumination light assembly.
