K121F CVT  SHIFT LEVER KNOB  REMOVAL

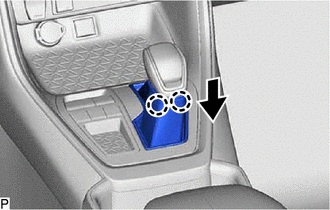

Disengage the 2 claws to disconnect the shifting hole cover sub-assembly as shown in the illustration.

0.823,1.417 1,1.25 1,1.25 1.167,1.25 true 1.833,1.917 2,1.917 2,1.917 2.281,1.146 true 1.208,1.167 1.375,1.333 0.167,0.167 10 false *a 1.625,1.833 1.792,2 0.167,0.167 10 true *b

*a	Clip
*b	Protective Tape

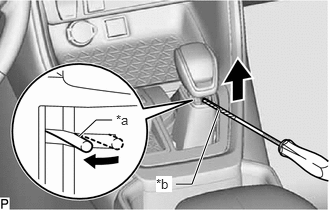

Using a screwdriver with its tip wrapped with protective tape, expand the left side of the clip and remove the shift lever knob sub-assembly from the transmission floor shift assembly as shown in the illustration.

NOTICE:

Be careful not to damage the shift lever knob sub-assembly.
