RM36D0EC _58 Vehicle Interior _083094 THEFT DETERRENT / KEYLESS ENTRY _0592335 SECURITY INDICATOR LIGHT ASSEMBLY A

THEFT DETERRENT / KEYLESS ENTRY SECURITY INDICATOR LIGHT ASSEMBLY REMOVAL

PROCEDURE

Hide Display 33504F 1.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

for HV Model:

P710:

for Gasoline Model:

K121:

K121F:

Hide Display 58804A 2.REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

Hide Display 861C0 3.REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (w/ Wireless Charger)

Hide Display 58813 4.REMOVE UPPER CONSOLE BOX (w/o Wireless Charger)

Hide Display 58805C 5.REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

Hide Display 55900 6.REMOVE AIR CONDITIONING CONTROL ASSEMBLY

Hide Display 55434B 7.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Hide Display 84751F 8.REMOVE SEAT HEATER SWITCH (w/o Climate Control Seat System, for LH Side)

Hide Display 84751 9.REMOVE SEAT HEATER SWITCH (w/o Climate Control Seat System, for RH Side)

Hide Display 83950M 10.REMOVE TELLTALE LIGHT ASSEMBLY (SECURITY INDICATOR LIGHT ASSEMBLY) (w/o Seat Heater System)

0,0 0,0 false

	Remove in this Direction
	Protective Tape

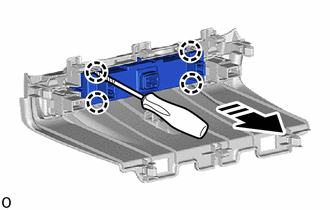

Using a screwdriver, detach the claw and remove the telltale light assembly (security indicator light assembly).

Hide Display 83950M 11.REMOVE TELLTALE LIGHT ASSEMBLY (SECURITY INDICATOR LIGHT ASSEMBLY) (w/o Climate Control Seat System)

0,0 0,0 false

	Remove in this Direction
	Protective Tape

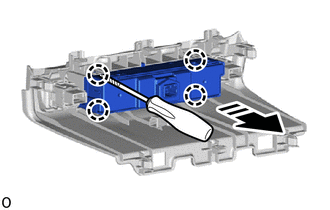

Using a screwdriver, detach the claw and remove the telltale light assembly (security indicator light assembly).

Hide Display 12.REMOVE REFRESHING SEAT SWITCH (SECURITY INDICATOR LIGHT ASSEMBLY) (w/ Climate Control Seat System)

0,0 0,0 false

	Remove in this Direction
	Protective Tape

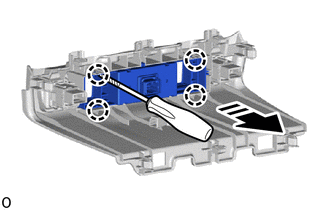

Using a screwdriver, detach the claw and remove the refreshing seat switch (security indicator light assembly).
