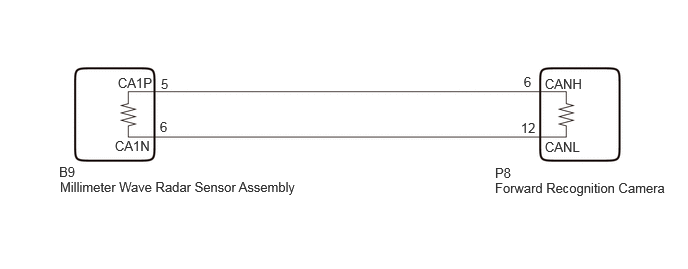

The forward recognition camera is connected to the millimeter wave radar sensor assembly via the CAN communication line. When the signal from the millimeter wave radar sensor assembly is interrupted, the forward recognition camera outputs U023587.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area |
|---|---|---|---|
| U023587 | Lost Communication with Cruise Control Front Distance Range Sensor Missing Message | Once 3 seconds elapse after turning the ignition switch to ON, a communication malfunction between the millimeter wave radar sensor assembly continues for approximately 2 seconds or more. | ·
Local bus (Open or short) ·
Forward recognition camera ·
Millimeter wave radar sensor assembly |
| Pattern | DTC output part name
(Display on GTS) |
Suspected Area (Malfunction Status) | |
|---|---|---|---|
| Millimeter Wave Radar Sensor Assembly
(Front Radar Sensor) |
Forward Recognition Camera
(Pre-Collision System) |
||
| U010487 | U023587 | ||
|
○: DTC is output -: DTC is not output |
|||
| Pattern 1 | ○ | ○ | Local bus (Open or short) |
| Forward recognition camera (Internal malfunction) | |||
| Millimeter wave radar sensor assembly (Internal malfunction) | |||
| Pattern 2 | - | ○ | Forward recognition camera (Internal malfunction) |
| Millimeter wave radar sensor assembly (Internal malfunction) | |||
When replacing the millimeter wave radar sensor assembly, always replace it with a new one. If a millimeter wave radar sensor assembly which was installed to another vehicle is used, the information stored in the millimeter wave radar sensor assembly will not match the information from the vehicle and a DTC may be stored.
When the millimeter wave radar sensor assembly has been replaced with a new one, it is necessary to perform millimeter wave radar sensor assembly beam axis alignment and to clear the vehicle control history (RoB). Before performing the Driving Adjustment, make sure to read Before Starting Driving Adjustment.
Beam axis alignment of the millimeter wave radar sensor assembly can be performed using either Triangle Target, Flat Surface Target or Driving Adjustment.
Flat Surface Target: Click hereEngine / Hybrid System>CRUISE CONTROL>MILLIMETER WAVE RADAR SENSOR>TARGET ADJUSTMENT(FLAT SURFACE TARGET)202304,202405,_51,_083055,_0401007,RM1000000029L6H,202405,202409,_51,_083055,_0401007,RM100000002ME7K,202409,999999,_51,_083055,_0401007,RM100000002NTDA,
Driving Adjustment: Click hereEngine / Hybrid System>CRUISE CONTROL>MILLIMETER WAVE RADAR SENSOR>DRIVING ADJUSTMENT202304,202405,_51,_083055,_0401007,RM1000000029L6F,202405,202409,_51,_083055,_0401007,RM100000002ME7H,202409,999999,_51,_083055,_0401007,RM100000002NTD7,
When replacing the forward recognition camera, always replace it with a new one. If a forward recognition camera which was installed to another vehicle is used, the information stored in the forward recognition camera will not match the information from the vehicle and a DTC may be stored.
When the forward recognition camera is replaced with a new one or the windshield glass is replaced or removed/installed, make sure to perform beam axis adjustment for the forward recognition camera and clear the vehicle control history for each system.
Forward recognition camera axis alignment can be performed by using either One Time Recognition, Sequential Recognition or Driving Adjustment.
One Time Recognition: Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>TARGET ADJUSTMENT(ONE TIME RECOGNITION)202304,202405,_51,_083055,_0401005,RM1000000029L6A,202405,202409,_51,_083055,_0401005,RM100000002ME7B,202409,999999,_51,_083055,_0401005,RM100000002NTD0,
Sequential Recognition: Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>TARGET ADJUSTMENT(SEQUENTIAL RECOGNITION)202304,202405,_51,_083055,_0401005,RM1000000029L6B,202405,202409,_51,_083055,_0401005,RM100000002ME7D,202409,999999,_51,_083055,_0401005,RM100000002NTD3,
Driving Adjustment: Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>DRIVING ADJUSTMENT202304,202405,_51,_083055,_0401005,RM1000000029L6D,202405,202409,_51,_083055,_0401005,RM100000002ME7F,202409,999999,_51,_083055,_0401005,RM100000002NTD4,
Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.
When disconnecting and reconnecting the battery
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
Before troubleshooting, perform CAN bus diagnostics and check that there are no malfunctions in ECUs connected to the CAN communication system.
Check for DTCs.
| Pattern | DTC Output Part Name
(Display on GTS / Output DTC) |
|
|---|---|---|
| Millimeter Wave Radar Sensor Assembly
(Front Radar Sensor) |
Forward Recognition Camera
(Pre-Collision System) |
|
| Pattern 1 | U010487 | U023587 |
| Pattern 2 | - | U023587 |
| Result | Proceed to |
|---|---|
| Pattern 1 | A |
| Pattern 2 | B |
A
B
Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the P8 forward recognition camera connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| P8-6 (CANH) - P8-12 (CANL) | Cable disconnected from negative (-) auxiliary battery terminal | 108 to 132 Ω |
| P8-6 (CANH) - G114-4 (CG) | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| P8-12 (CANL) - G114-4 (CG) | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| P8-6 (CANH) - G114-16 (BAT) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| P8-12 (CANL) - G114-16 (BAT) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Replace the forward recognition camera.
Clear the DTCs.
Make sure that the DTC detection conditions are met.
If the detection conditions are not met, the system cannot detect the malfunction.
Recheck for DTCs and check that no DTCs are output.
DTC U023587 is not output.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Reconnect the P8 forward recognition camera connector.
Disconnect the B9 millimeter wave radar sensor assembly connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| B9-5 (CA1P) - B9-6 (CA1N) | Cable disconnected from negative (-) auxiliary battery terminal | 108 to 132 Ω |
| B9-5 (CA1P) - G114-4 (CG) | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| B9-6 (CA1N) - G114-4 (CG) | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| B9-5 (CA1P) - G114-16 (BAT) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| B9-6 (CA1N) - G114-16 (BAT) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Replace the forward recognition camera.
Clear the DTCs.
Make sure that the DTC detection conditions are met.
If the detection conditions are not met, the system cannot detect the malfunction.
Recheck for DTCs and check that no DTCs are output.
DTC U023587 is not output.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Pre-procedure1
Disconnect the P8 forward recognition camera connector.
Procedure1
Using an oscilloscope, check the waveform.
| Tester Connection | Condition | Tool Setting | Specified Condition |
|---|---|---|---|
| P8-6 (CANH) - P8-12 (CANL) | Ignition switch ON | 1V/DIV., 100μs./DIV. | Pulse generation |
| Proceed to |
|---|
| OK |
| NG |
Post-procedure1
None
OK
NG
