NAVIGATION / MULTI INFO DISPLAY  NAVIGATION SYSTEM  B154913  Voice Recognition Microphone2 Circuit Open


DESCRIPTION

The telephone microphone assembly RH is connected to the navigation receiver assembly via voice recognition microphone 2 signal detection line.

This DTC is stored when the navigation receiver assembly detects disconnection of telephone microphone assembly RH.

DTC No. Detection Item DTC Detection Condition Trouble Area DTC Output from Priority
B154913 Voice Recognition Microphone2 Circuit Open Voice recognition microphone 2 terminal (SNS2) disconnected
(2 trip detection logic)
·

Telephone microphone assembly RH

·

Map light assembly

·

Navigation receiver assembly

·

Harness or connector


Navigation System A

WIRING DIAGRAM

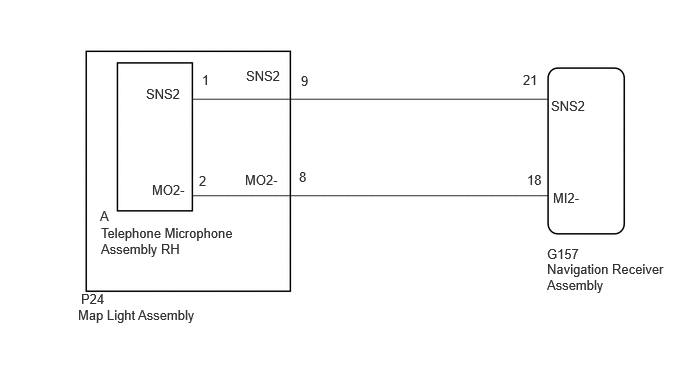

E402556E51
1.052,2.344 2.49,2.792 1.438,0.448 10 false Telephone Microphone Assembly RH 5.698,2.719 6.896,3.094 1.198,0.375 10 false Navigation Receiver Assembly 0.844,3.031 1.906,3.24 1.063,0.208 10 false P24 5.698,2.563 6.219,2.781 0.521,0.219 10 false G157 5.448,0.75 5.646,0.958 0.198,0.208 10 false 21 3.135,0.76 3.833,0.958 0.698,0.198 10 false 9 2.104,0.75 2.417,0.948 0.313,0.198 10 false 1 2.552,1.792 2.99,2.042 0.438,0.25 10 false MO2- 2.563,0.708 3,0.958 0.438,0.25 10 false SNS2 5.74,1.021 6.135,1.188 0.396,0.167 10 false SNS2 5.76,1.979 6.083,2.156 0.323,0.177 10 false MI2- 5.49,1.792 5.688,1.979 0.198,0.188 10 false 18 0.813,3.198 3.271,3.625 2.458,0.427 10 false Map Light Assembly 3.115,1.76 3.813,1.958 0.698,0.198 10 false 8 1.042,2.167 1.354,2.365 0.313,0.198 10 false A 1.521,0.896 1.958,1.146 0.438,0.25 10 false SNS2 1.583,1.896 2.021,2.146 0.438,0.25 10 false MO2- 2.073,1.802 2.385,2 0.313,0.198 10 false 2

CAUTION / NOTICE / HINT

NOTICE:
·

When replacing the telematics transceiver, make sure to replace it with a new one.

·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>PRECAUTION



PROCEDURE

1.CHECK HARNESS AND CONNECTOR (MAP LIGHT ASSEMBLY - NAVIGATION RECEIVER ASSEMBLY)
a.

Disconnect the P24 map light assembly connector.


b.

Disconnect the G157 navigation receiver assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
P24-9 (SNS2) - G157-21 (SNS2) Always Below 1 Ω
P24-8 (MO2-) - G157-18 (MI2-) Always Below 1 Ω
P24-9 (SNS2) or G196-21 (SNS2) - Body ground Always 10 kΩ or higher
P24-8 (MO2-) or G196-18 (MI2-) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

2.INSPECT NAVIGATION RECEIVER ASSEMBLY (MI2-)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.INSPECT NAVIGATION RECEIVER ASSEMBLY (MI2-)
a.

With the navigation receiver assembly connectors connected, disconnect the P24 map light assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
P24-8 (MO2-) -Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

3.INSPECT MAP LIGHT ASSEMBLY

NG

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL


3.INSPECT MAP LIGHT ASSEMBLY
a.

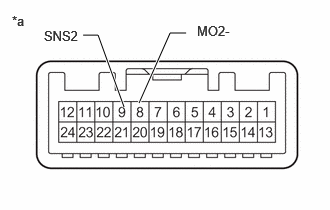

E513202C09
1.292,1.115 1.021,0.365 1.021,0.365 0.865,0.365 true 1.448,1.073 1.771,0.344 1.771,0.344 1.938,0.344 true 0.125,0.135 0.438,0.333 0.313,0.198 10 false *a 0.458,0.292 1.156,0.604 0.698,0.313 10 false SNS2 2.052,0.24 2.583,0.5 0.531,0.26 10 false MO2-
*a Component without harness connected
(Map Light Assembly)


Remove the map light assembly.

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
9 (SNS2) - 8 (MO2-) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL


NG

4.INSPECT MAP LIGHT ASSEMBLY
4.INSPECT MAP LIGHT ASSEMBLY
a.
E513201C01

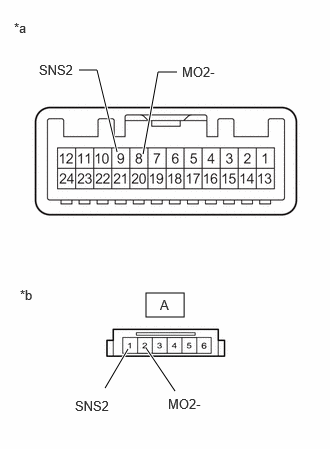

1.521,3.052 1.917,3.302 0.396,0.25 1.49,1.604 1.646,0.75 1.646,0.75 1.844,0.75 true 1.333,3.635 1.094,4.042 true 1.823,4.073 1.521,3.625 true 1.219,1.583 1.01,0.729 1.01,0.729 0.823,0.729 true 0.146,0.208 0.458,0.406 0.313,0.198 10 false *a 1.667,3.094 1.979,3.292 0.313,0.198 10 false A 0.781,4.146 1.281,4.365 0.5,0.219 10 false SNS2 1.75,4.125 2.229,4.333 0.479,0.208 10 false MO2- 0.406,0.646 1.271,0.969 0.865,0.323 10 false SNS2 0.208,2.99 0.521,3.188 0.313,0.198 10 false *b 1.896,0.667 2.708,1 0.813,0.333 10 false MO2-
*a Component without harness connected
(Map Light Assembly [Wire Harness Side])
*b Component without harness connected
(Map Light Assembly [Telephone Microphone Assembly RH Side])


Remove the map light assembly.

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL


b.

Disconnect the telephone microphone assembly RH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
9 (SNS2) - A-1 (SNS2) Always Below 1 Ω
8 (MO2-) - A-2 (MO2-) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE TELEPHONE MICROPHONE ASSEMBLY RH

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE MICROPHONE ASSEMBLY>REMOVAL


NG

REPLACE MAP LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL
