RM36D0EC _58 Vehicle Interior _083095 LIGHTING (INT) _0400587 PERSONAL LIGHT A

LIGHTING (INT)  PERSONAL LIGHT  REMOVAL


PROCEDURE

Hide 1.REMOVE MAP LIGHT ASSEMBLY

a.
E400102C01
0,0 0,0 false
V113147

Remove in this Direction

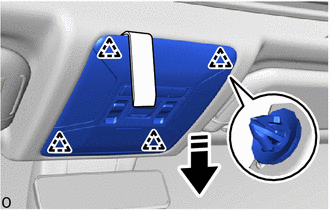

Using moulding remover D, detach the clip as shown in the illustration.


b.
E400111C01
0,0 0,0 false
V113147

Remove in this Direction

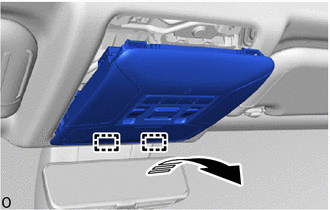

Detach the guide and remove the map light assembly as shown in the illustration.


c.

Disconnect the connector.
