RM36D0EC _58 Vehicle Interior _083104 HEATING / AIR CONDITIONING _0403073 AMBIENT TEMPERATURE SENSOR A

HEATING / AIR CONDITIONING AMBIENT TEMPERATURE SENSOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during thermistor assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Front bumper assembly (Including removal and installation)	Front television camera view adjustment	Panoramic view monitor system	(202304,999999,_56,_083082,_0586733,RM1000000029R9F,)
· Front television camera assembly, radiator grille assembly or front bumper assembly · Rear television camera assembly · Side television camera assembly LH or outer rear view mirror assembly LH · Side television camera assembly RH or outer rear view mirror assembly RH	Television camera view adjustment (Adjustment of all cameras) HINT: Replacement or removal and installation of 2 or more parts	Panoramic view monitor system	(202304,999999,_56,_083082,_0586733,RM1000000029R9F,)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Front bumper assembly (Including removal and installation)	Front television camera view adjustment	Panoramic view monitor system	(202304,999999,_56,_083082,_0586733,RM1000000029R9F,)
· Front television camera assembly, radiator grille assembly or front bumper assembly · Rear television camera assembly · Side television camera assembly LH or outer rear view mirror assembly LH · Side television camera assembly RH or outer rear view mirror assembly RH	Television camera view adjustment (Adjustment of all cameras) HINT: Replacement or removal and installation of 2 or more parts	Panoramic view monitor system	(202304,999999,_56,_083082,_0586733,RM1000000029R9F,)

PROCEDURE

Hide Display 53019F 1.REMOVE RADIATOR SHUTTER SUB-ASSEMBLY (for HV Model)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>GRILLE SHUTTER>REMOVAL202304,999999,_59,_083111,_0400754,RM1000000029RR4,

Hide Display 2.REMOVE FRONT BUMPER ASSEMBLY (for Gasoline Model)

for Type A:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for Type A)>REMOVAL202304,999999,_59,_083111,_0400751,RM1000000029RQQ,

for Type B:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for Type B)>REMOVAL202304,999999,_59,_083111,_0417477,RM1000000029RQU,

for Off Road Package:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for Off Road Package)>REMOVAL202304,999999,_59,_083111,_0587172,RM1000000029SJZ,

Hide Display 88790B 3.REMOVE THERMISTOR ASSEMBLY (for HV Model)

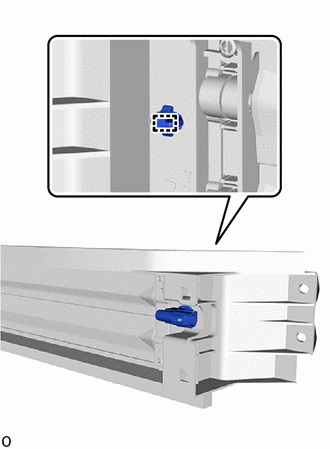

Detach the clamp and remove the thermistor assembly.

Hide Display 88790B 4.REMOVE THERMISTOR ASSEMBLY (for Gasoline Model)

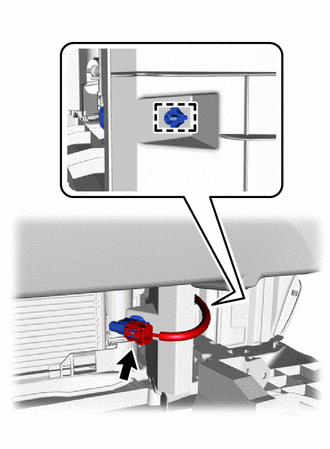

Detach the clamp and remove the thermistor assembly.

Disconnect the connector.
