RM36D0EC _59 Vehicle Exterior _083111 EXTERIOR PANELS / TRIM _0417477 FRONT BUMPER(for Type B) A

EXTERIOR PANELS / TRIM  FRONT BUMPER(for Type B)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front bumper assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure Necessary Procedures Effect/Inoperative Function when Necessary Procedures are not Performed Link
Front bumper assembly (Including removal and installation) Front television camera view adjustment Panoramic view monitor system (Click here)
·

Front television camera assembly, radiator grille assembly or front bumper assembly

·

Rear television camera assembly

·

Side television camera assembly LH or outer rear view mirror assembly LH

·

Side television camera assembly RH or outer rear view mirror assembly RH


Television camera view adjustment (Adjustment of all cameras)
HINT:

Replacement or removal and installation of 2 or more parts


Panoramic view monitor system (Click here)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure Necessary Procedures Effect/Inoperative Function when Necessary Procedures are not Performed Link
Front bumper assembly (Including removal and installation) Front television camera view adjustment Panoramic view monitor system (Click here)
·

Front television camera assembly, radiator grille assembly or front bumper assembly

·

Rear television camera assembly

·

Side television camera assembly LH or outer rear view mirror assembly LH

·

Side television camera assembly RH or outer rear view mirror assembly RH


Television camera view adjustment (Adjustment of all cameras)
HINT:

Replacement or removal and installation of 2 or more parts


Panoramic view monitor system (Click here)

HINT:
·

When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform millimeter wave radar sensor adjustment.

-

Driving Adjustment:

Click hereEngine / Hybrid System>CRUISE CONTROL>MILLIMETER WAVE RADAR SENSOR>DRIVING ADJUSTMENT

-

Target Adjustment (Triangle Target):

Click hereEngine / Hybrid System>CRUISE CONTROL>MILLIMETER WAVE RADAR SENSOR>TARGET ADJUSTMENT(TRIANGLE TARGET)

-

Target Adjustment (Flat Surface Target):

Click hereEngine / Hybrid System>CRUISE CONTROL>MILLIMETER WAVE RADAR SENSOR>TARGET ADJUSTMENT(FLAT SURFACE TARGET)




PROCEDURE

Hide 53895B 2.REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

HINT:

Use the same procedure described for the LH side.


Hide 75601A 4.REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 5.REMOVE FRONT BUMPER ASSEMBLY

a.

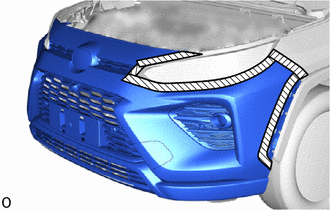

B599748C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the front bumper assembly.

HINT:

Use the same procedure on the other side.



b.
B571240

Remove the 4 bolts.


c.
B571241

Remove the 6 screws.


d.
B571243

Remove the 2 clips.

HINT:

Use the same procedure on the other side.



e.

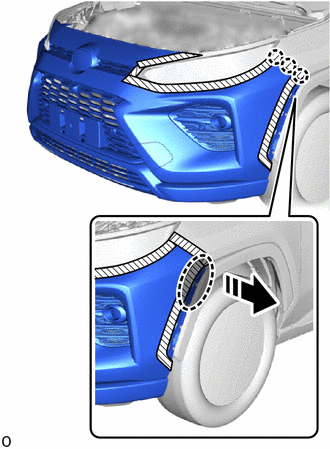

B599749C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the positions shown in the illustration and pull in the removal direction to detach the claw.

HINT:

Use the same procedure on the other side.



f.
B571245

Pull back the edge of the front fender liner LH and disconnect the 2 connectors.


g.

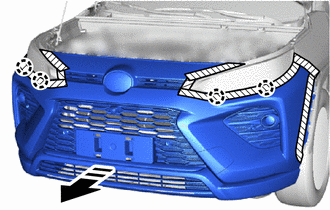

B599750C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the front bumper assembly.


h.
B525575

Remove the 2 clips from the front fender moulding sub-assembly LH.

NOTICE:

If the front bumper assembly has been removed, replace the clip with a new one.


HINT:

Use the same procedure on the other side.
