HEATING / AIR CONDITIONING CONDENSER(for Gasoline Model) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during cooler condenser assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Front bumper assembly (Including removal and installation)	Front television camera view adjustment	Panoramic view monitor system	(202304,999999,_56,_083082,_0586733,RM1000000029R9F,)
· Front television camera assembly, radiator grille assembly or front bumper assembly · Rear television camera assembly · Side television camera assembly LH or outer rear view mirror assembly LH · Side television camera assembly RH or outer rear view mirror assembly RH	Television camera view adjustment (Adjustment of all cameras) HINT: Replacement or removal and installation of 2 or more parts	Panoramic view monitor system	(202304,999999,_56,_083082,_0586733,RM1000000029R9F,)

PROCEDURE

Hide Display 1.RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REFRIGERANT (for HFC-134a(R134a))>REPLACEMENT201910,999999,_58,_083104,_0403061,RM100000001JNG0_01_0001,

Hide Display 2.REMOVE FRONT BUMPER ASSEMBLY

for Type A:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for Type A)>REMOVAL202304,999999,_59,_083111,_0400751,RM1000000029RQQ,

for Type B:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for Type B)>REMOVAL202304,999999,_59,_083111,_0417477,RM1000000029RQU,

for Off Road Package:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for Off Road Package)>REMOVAL202304,999999,_59,_083111,_0587172,RM1000000029SJZ,

Hide Display 86520 3.REMOVE LOW PITCHED HORN ASSEMBLY

Click hereVehicle Exterior>HORN>HORN>REMOVAL201910,999999,_59,_083110,_0402360,RM100000001JI24,

Hide Display 88710E 4.DISCONNECT AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY

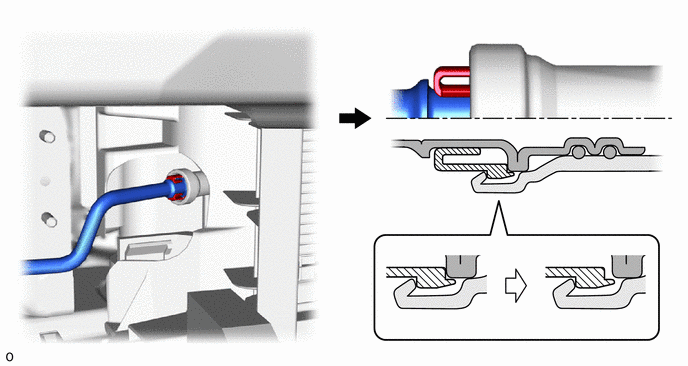

Press the air conditioning tube and accessory assembly to the cooler condenser assembly, and then release the piping clamp lock.

NOTICE:: Do not apply excessive force to the air conditioning tube and accessory assembly.

4.417,1.969 4.417,1.635 true 4.708,2.104 4.708,1.771 true 6.219,2.104 6.219,1.771 true 4.333,1.969 4.646,2.167 0.313,0.198 10 false *1 6.135,2.104 6.448,2.302 0.313,0.198 10 false *2 4.625,2.104 4.938,2.302 0.313,0.198 10 false *3 3.531,0.99 3.844,1.188 0.313,0.198 10 false *a

*1	Air Conditioning Tube and Accessory Assembly	*2	Cooler Condenser Assembly
*3	Piping Clamp	-	-
*a	Press In	-	-

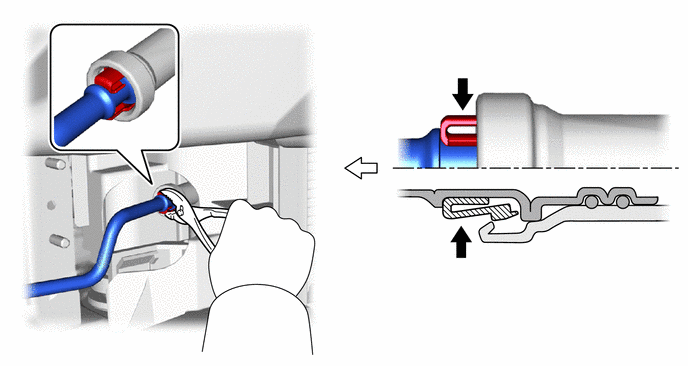

While releasing the piping clamp lock, use pliers or another tool to pinch near the rear end of the piping clamp, and then disconnect the air conditioning tube and accessory assembly as you buckle it.

NOTICE:: ·

If any foreign matter is attached to the connecting parts, brush it off or use compressed air to remove it before disconnecting the parts.

·

Make sure that fragments of the piping clamp do not enter the piping.

·

When the piping clamp is buckled, cracks form. Therefore, make sure to replace it with a new one.

·

Remove any foreign matter from the connecting parts of the air conditioning tube and accessory assembly and cooler condenser assembly.

4.323,2.375 4.323,2.042 true 4.656,2.854 4.656,2.271 true 6.208,2.625 6.208,2.292 true 4.24,2.385 4.552,2.583 0.313,0.198 10 false *1 6.146,2.646 6.458,2.844 0.313,0.198 10 false *2 4.604,2.885 4.917,3.083 0.313,0.198 10 false *3 4.729,2.688 5.042,2.885 0.313,0.198 10 false *a 4.729,0.646 5.042,0.844 0.313,0.198 10 false *a 3.771,1.521 4.083,1.719 0.313,0.198 10 false *b

*1	Air Conditioning Tube and Accessory Assembly	*2	Cooler Condenser Assembly
*3	Piping Clamp	-	-
*a	Buckle	*b	Pull Out

Remove the 2 O-rings from the air conditioning tube and accessory assembly.

NOTICE:: Seal the openings of the disconnected parts with vinyl tape to prevent entry of moisture and foreign matter.

Remove the piping clamp.

Hide Display 88711 5.DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE

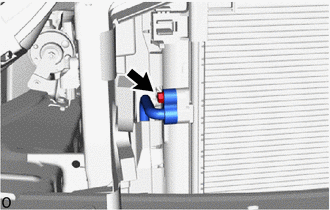

Remove the bolt and disconnect the No. 1 cooler refrigerant discharge hose.

NOTICE:: Do not apply excessive force to the No. 1 cooler refrigerant discharge hose.

Remove the O-ring from the No. 1 cooler refrigerant discharge hose.

NOTICE:: Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

Hide Display 53630 6.DISCONNECT HOOD LOCK CONTROL CABLE ASSEMBLY

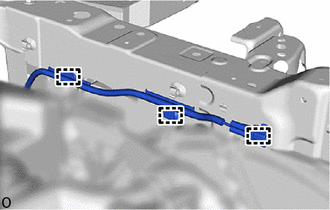

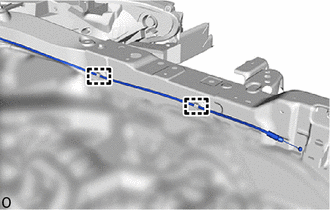

Disconnect the hood lock control cable assembly from the clamp.

Hide Display 53205 7.REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY

w/ Engine Hood Courtesy Switch

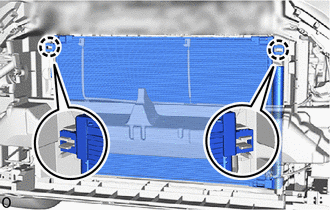

Detach the clamp.

3.323,1.313 3.323,0.979 true 5.813,1.573 5.813,1.24 true 3.24,1.302 3.417,1.479 0.177,0.177 10 true *1 5.719,1.552 5.896,1.729 0.177,0.177 10 true *1

Radiator Support Cushion

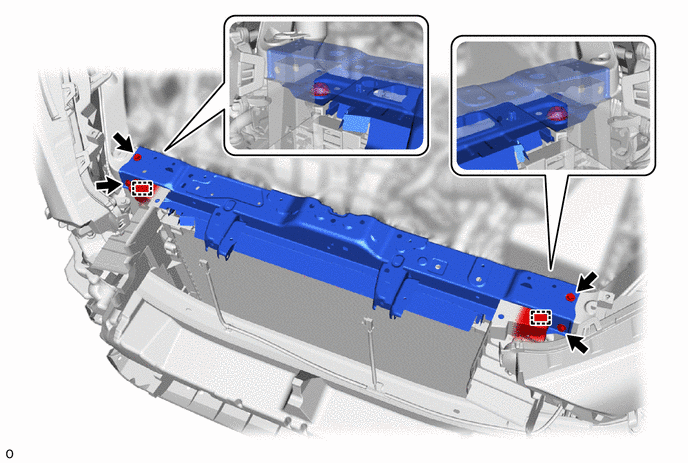

Remove the 4 bolts.

Detach the 2 radiator support cushions and remove the upper radiator support sub-assembly.

NOTICE:: Do not damage the cooler condenser assembly or radiator assembly when removing the upper radiator support sub-assembly.

Hide Display 884A0 8.REMOVE COOLER CONDENSER ASSEMBLY

Detach the claw.

0,0 0,0 false

Remove in this Direction

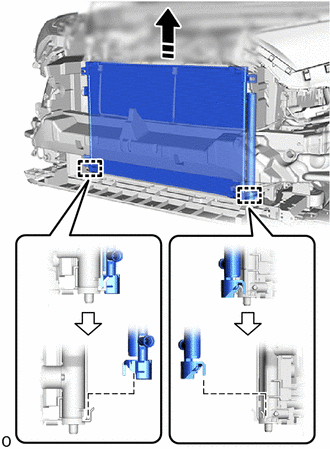

Detach the guide and remove the cooler condenser assembly as shown in the illustration.

NOTICE:: Do not damage the cooler condenser assembly or radiator assembly when removing the cooler condenser assembly.
