M20C-FKS ENGINE CONTROL SFI SYSTEM P011015 Intake Air Temperature Sensor 1 Bank 1 Circuit Short to Battery or Open
DESCRIPTION
Refer to DTC P011011.
- HINT:
-
When DTC P011015 is stored, the ECM enters fail-safe mode. During fail-safe mode, the intake air temperature is estimated to be 20°C (68°F) by the ECM. Fail-safe mode continues until a pass condition is detected, and the ignition switch is then turned off.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory | Note |
|---|---|---|---|---|---|---|
| P011015 | Intake Air Temperature Sensor 1 Bank 1 Circuit Short to Battery or Open | The intake air temperature sensor output voltage is higher than 4.91 V for 0.5 seconds or more (1 trip detection logic). | ·
Open or short in intake air temperature sensor circuit ·
Intake air temperature sensor (mass air flow meter sub-assembly) ·
ECM |
Comes on | DTC stored | SAE: P0113 |
- HINT:
-
When a DTC is output, check the Data List item "Intake Air Temperature" using the GTS.
DTC No. Intake Air Temperature Malfunction P011015 -40°C (-40°F) ·Short to +B in THA circuit
·Open in THA circuit
·Open in E2G circuit
-
If the Data List displays a normal value, the normal value may be due to a temporary recovery from the malfunction condition. Check for intermittent problems.
MONITOR DESCRIPTION
The ECM monitors the sensor voltage and uses this value to calculate the intake air temperature. When the intake air temperature sensor output voltage deviates from the normal operating range, the ECM interprets this as a malfunction in the intake air temperature sensor circuit, illuminates the MIL and stores a DTC.
Example:
If the intake air temperature sensor output voltage is higher than 4.91 V for 0.5 seconds or more, the ECM will illuminate the MIL and store this DTC.
MONITOR STRATEGY
| Frequency of Operation | Continuous |
CONFIRMATION DRIVING PATTERN
- HINT:
- ·
After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
·When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the ignition switch off and wait for at least 30 seconds.
Turn the ignition switch to ON [A].
Turn the GTS on.
Wait 0.5 seconds or more [B].
Enter the following menus: Powertrain / Engine / Trouble Codes [C].
Read the pending DTCs.
- HINT:
- ·
If a pending DTC is output, the system is malfunctioning.
·If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine / Utility / All Readiness.
Input the DTC: P011015.
Check the DTC judgment result.
| GTS Display | Description |
|---|---|
| NORMAL | ·
DTC judgment completed ·
System normal |
| ABNORMAL | ·
DTC judgment completed ·
System abnormal |
| INCOMPLETE | ·
DTC judgment not completed ·
Perform driving pattern after confirming DTC enabling conditions |
- HINT:
- ·
If the judgment result is NORMAL, the system is normal.
·If the judgment result is ABNORMAL, the system is malfunctioning.
·[A] to [C]: Normal judgment procedure.
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
·When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
WIRING DIAGRAM
Refer to DTC P010012.
CAUTION / NOTICE / HINT
- HINT:
-
Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE

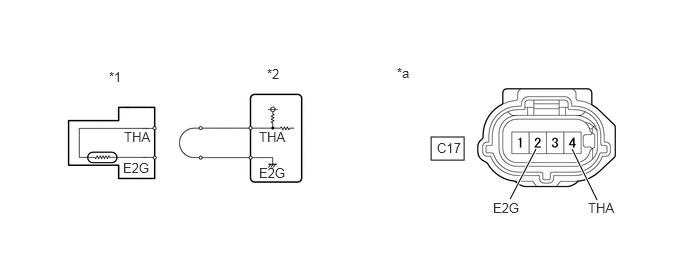

| *1 | Mass Air Flow Meter Sub-assembly | *2 | ECM |
| *a | Front view of wire harness connector
(to Mass Air Flow Meter Sub-assembly) |
- | - |
Disconnect the mass air flow meter sub-assembly connector.
Connect terminals 4 (THA) and 2 (E2G) of the mass air flow meter sub-assembly connector on the wire harness side.
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Enter the following menus: Powertrain / Engine / Data List / Intake Air Temperature.
- Powertrain > Engine > Data List
-
Tester Display Intake Air Temperature - 50003 372 214
According to the display on the GTS, read the Data List.
- OK:
GTS Display Specified Condition Intake Air Temperature Higher than 128°C (262°F)
- HINT:
-
Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.
- Result:
Proceed to OK NG
OK
NG
Disconnect the mass air flow meter sub-assembly connector.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition C17-4 (THA) - C71-165 (THA) Always Below 1 Ω C17-2 (E2G) - C71-136 (E2G) Always Below 1 Ω C17-4 (THA) or C71-165 (THA) - Other terminals Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
