M20C-FKS ENGINE CONTROL  SFI SYSTEM  P054411  Exhaust Gas Temperature Sensor 1 Bank 1 Circuit Short to Ground  P054415  Exhaust Gas Temperature Sensor 1 Bank 1 Circuit Short to Battery or Open

5.719,4.677 5.875,4.677 false 1.76,5.427 1.875,5.427 false 1.729,2.51 1.125,2.958 true 2.365,1.427 2.979,0.385 2.979,0.385 4.125,0.385 false 2.417,2.896 3.833,3.333 3.833,3.333 4,3.333 true 4.198,0.292 6.76,0.688 2.563,0.396 10 false No. 1 Exhaust Gas Temperature Sensor 1.521,0.542 2.365,0.719 0.844,0.177 10 false Exhaust Gas 3.167,0.927 3.531,1.094 0.365,0.167 10 false ECM 0.219,2.906 1.177,3.479 0.958,0.573 10 false Gasoline Particulate Filter 0.271,3.594 2.01,3.781 1.74,0.188 10 false Property of Output Voltage: 0.167,3.958 2.198,4.156 2.031,0.198 10 false Exhaust Gas Temperature (°C) 1.26,4.25 2.063,4.417 0.802,0.167 10 false 1000 1.323,4.417 2.021,4.583 0.698,0.167 10 false 960 1.323,4.646 2.021,4.813 0.698,0.167 10 false 760 1.323,4.875 2.021,5.042 0.698,0.167 10 false 560 1.323,5.104 1.948,5.271 0.625,0.167 10 false 360 1.323,5.344 1.958,5.51 0.635,0.167 10 false 160 1.469,5.604 2.052,5.771 0.583,0.167 10 false 0 1.573,5.688 1.677,5.875 0.104,0.188 10 false 0 1.677,5.698 2.031,5.927 0.354,0.229 10 false 0.09 1.99,5.688 2.229,5.875 0.24,0.188 10 false 0.5 2.396,5.688 2.635,5.875 0.24,0.188 10 false 1.0 2.844,5.688 3.083,5.875 0.24,0.188 10 false 1.5 3.271,5.688 3.51,5.875 0.24,0.188 10 false 2.0 3.719,5.688 3.958,5.875 0.24,0.188 10 false 2.5 4.177,5.688 4.417,5.875 0.24,0.188 10 false 3.0 4.615,5.688 4.948,5.938 0.333,0.25 10 false 3.5 5.031,5.688 5.458,5.969 0.427,0.281 10 false 4.0 5.458,5.688 5.677,5.875 0.219,0.188 10 false 4.5 5.708,5.688 6.021,5.875 0.313,0.188 10 false 4.95 6.021,5.688 6.25,5.875 0.229,0.188 10 false 5.0 2.635,6.104 5.51,6.313 2.875,0.208 10 false Exhaust Gas Temperature Sensor Voltage (V) 2,5.354 4.729,5.573 2.729,0.219 10 false Stores P054411 or P203111 4.073,3.25 6.688,3.625 2.615,0.375 10 false No. 2 Exhaust Gas Temperature Sensor 3.969,4.594 6.698,4.813 2.729,0.219 10 false Stores P054415 or P203115

The exhaust gas temperature sensors are installed before and after the GPF catalyst to sense the exhaust gas temperature.

A thermistor built into the sensor changes its resistance value according to the exhaust gas temperature. The lower the exhaust gas temperature, the higher the thermistor resistance value. The higher the exhaust gas temperature, the lower the thermistor resistance value.

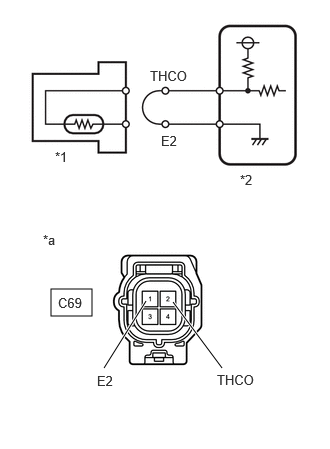

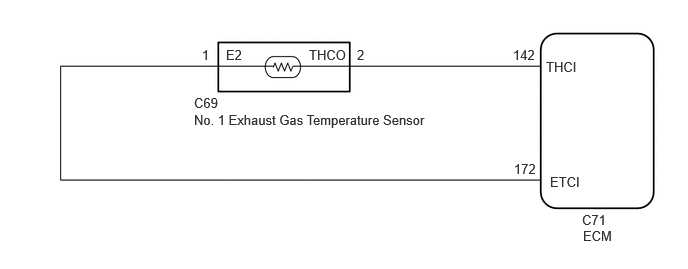

The exhaust gas temperature sensor is powered by a 5 V supply from the THCI and THCO terminals of the ECM, via resistor R.

Resistor R and the exhaust gas temperature sensor are connected in series. When the resistance value of the exhaust gas temperature sensor changes in accordance with the exhaust gas temperature, the voltage at terminals THCI and THCO also changes. The No. 1 exhaust gas temperature sensor monitors the temperature upstream of the GPF catalyst. The No. 2 exhaust gas temperature sensor monitors the rise in temperature of the GPF catalyst. The ECM uses 2 sensors in order to detect loss of function of the GPF.

HINT:

·

Sensor 1 represents the sensor located upstream of the GPF catalyst.

·

When DTC P054411 and P054415 is output, check the exhaust gas temperature indicated by "Powertrain / Engine / Data List / Exhaust Temperature B1S1" using the GTS.

Reference:

Condition	Exhaust Temperature B1S1	No. 1 Exhaust Gas Temperature Sensor Condition
Idling with warm engine	Constant at between 50 and 400°C (122 and 752°F)	Normal
	0°C (32°F) or less	Open circuit
	1000°C (1832°F) or higher	Short circuit

The ECM constantly monitors the output voltages from the No. 1 exhaust gas temperature sensor in order to detect problems with the sensor.

No. 1 exhaust gas temperature sensor range check (low voltage) (P054411):

If the output voltage of the No. 1 exhaust gas temperature sensor remains below 0.09 V for 3 seconds or more during engine operation, the ECM illuminates the MIL and stores a DTC.

No. 1 exhaust gas temperature sensor range check (high voltage) (P054415):

If the estimated GPF upstream exhaust gas temperature is 100°C or more during engine operation and the output voltage of the No. 1 exhaust gas temperature sensor remains at more than 4.95 V for 10 seconds or more, the ECM illuminates the MIL and stores a DTC.

HINT:

·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>M20C-FKS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR202304,202405,_51,_087036,_0418131,RM1000000029CMW,202405,999999,_51,_087036,_0418131,RM100000002IFF9,

·

When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

Click hereEngine / Hybrid System>M20C-FKS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR202304,202405,_51,_087036,_0418131,RM1000000029CMW,202405,999999,_51,_087036,_0418131,RM100000002IFF9,

P054411

1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Start the engine [A].

7.

Idle the engine for 3 seconds or more [B].

8.

Turn the GTS on.

9.

Enter the following menus: Powertrain / Engine / Trouble Codes [C].

10.

Read the pending DTCs.

HINT:

·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.

11.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

12.

Input the DTC: P054411.

13.

Check the DTC judgment result.

GTS Display	Description
NORMAL	· DTC judgment completed · System normal
ABNORMAL	· DTC judgment completed · System abnormal
INCOMPLETE	· DTC judgment not completed · Perform driving pattern after confirming DTC enabling conditions

HINT:

·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system has a malfunction.

·

If the judgment result is INCOMPLETE, perform steps [A] through [C] again.

·

[A] to [C]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

P054415

1.063,1.76 1.979,1.958 0.917,0.198 10 false Idling 0.813,1.031 2.042,1.229 1.229,0.198 10 false 2500 rpm 2.438,2.573 3.813,2.771 1.375,0.198 10 false 7 minutes 4.125,2.583 5.5,2.781 1.375,0.198 10 false 2 minutes 5.271,2.573 6.01,3.063 0.74,0.49 10 false 10 seconds or more 2.719,1.958 3.177,2.156 0.458,0.198 10 false [A] 4.365,1.229 4.823,1.427 0.458,0.198 10 false [B] 4.979,3.021 5.438,3.219 0.458,0.198 10 false [C] 5.969,3.031 6.427,3.229 0.458,0.198 10 false [E] 5.667,1.927 6.125,2.125 0.458,0.198 10 false [D] 0.583,0.458 2.417,0.656 1.833,0.198 10 false Engine Speed 6.625,2.313 7.094,2.635 0.469,0.323 10 false Time

1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON.

7.

Turn the GTS on.

8.

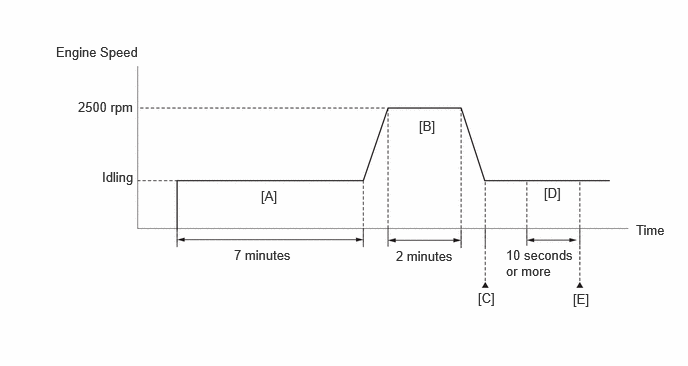

Start the engine and idle for 7 minutes [A].

9.

With the vehicle stationary, depress the accelerator pedal and maintain an engine speed of 2500 rpm for 2 minutes [B].

10.

Enter the following menus: Powertrain / Engine / Data List / GPF Inlet Exhaust Temperature Sensor Disconnection Detection Possible Temperature Arrival Bank1.

11.

Check that the value of the Data List item "GPF Inlet Exhaust Temperature Sensor Disconnection Detection Possible Temperature Arrival Bank1" has changed to "1" [C].

HINT:

If the value of the Data List item "GPF Inlet Exhaust Temperature Sensor Disconnection Detection Possible Temperature Arrival Bank1" is "0", race the engine at 2500 rpm until the value changes to "1".

12.

Idle the engine for 10 seconds or more [D].

13.

Enter the following menus: Powertrain / Engine / Trouble Codes [E].

14.

Read the pending DTCs.

HINT:

·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.

15.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

16.

Input the DTC: P054415.

17.

Check the DTC judgment result.

GTS Display	Description
NORMAL	· DTC judgment completed · System normal
ABNORMAL	· DTC judgment completed · System abnormal
INCOMPLETE	· DTC judgment not completed · Perform driving pattern after confirming DTC enabling conditions

HINT:

·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system has a malfunction.

·

If the judgment result is INCOMPLETE, perform steps [A] through [E] again.

·

[A] to [E]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

HINT:

Read freeze frame data using the GTS. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, and other data from the time the malfunction occurred.
