RM36D0EC _51 Engine / Hybrid System _087039 M20C-FKS EMISSION CONTROL _0586873 EXHAUST GAS TEMPERATURE SENSOR A

M20C-FKS EMISSION CONTROL EXHAUST GAS TEMPERATURE SENSOR REMOVAL

PROCEDURE

Hide Display 53896B 1.REMOVE FRONT FENDER FRONT SPLASH SHIELD LH

Hide Display 53895B 2.REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

Hide Display 51441 3.REMOVE NO. 1 ENGINE UNDER COVER

Hide Display 51420 4.REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

Hide Display 58166A 5.REMOVE FRONT FLOOR COVER LH

Hide Display 58165C 6.REMOVE FRONT FLOOR COVER RH

Hide Display 89425 7.REMOVE EXHAUST GAS TEMPERATURE SENSOR

CAUTION:: To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

Disconnect the connector.

Detach the 2 clamps.

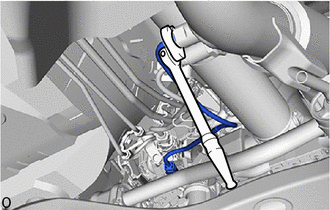

Using a 14 mm union nut wrench, remove the exhaust gas temperature sensor.

NOTICE:: If the exhaust gas temperature sensor has been struck or dropped, replace it.

Hide Display 89425A 8.REMOVE NO. 2 EXHAUST GAS TEMPERATURE SENSOR

CAUTION:: To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

Disconnect the connector.

Detach the 4 clamps.

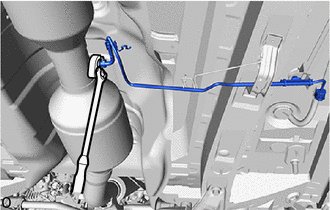

Using a 14 mm union nut wrench, remove the No. 2 exhaust gas temperature sensor.

NOTICE:: If the No. 2 exhaust gas temperature sensor has been struck or dropped, replace it.
