BRAKE (FRONT)  FRONT BRAKE  INSPECTION

2.25,0.917 2.5,0.5 2.5,0.5 2.583,0.5 true 2.625,0.417 2.938,0.573 0.313,0.156 10 false *a

*a

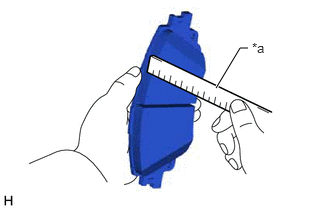

Ruler

Using a ruler, measure the front disc brake pad lining thickness.

Standard thickness:

11.0 mm (0.433 in.)

Minimum thickness:

1.0 mm (0.0394 in.)

HINT:

·

If a front disc brake pad lining thickness is less than the minimum thickness, replace the front disc brake pads.

·

Be sure to check front disc thickness when replacing the front disc brake pads with new ones.

0.792,2.01 0.875,2.01 0.875,2.01 1,1.375 true 0.615,1.917 0.927,2.073 0.313,0.156 10 false *a

*a	Micrometer

Using a micrometer, measure the front disc thickness.

Standard thickness:

28 mm (1.102 in.)

Minimum thickness:

25.0 mm (0.984 in.)

HINT:

If the front disc thickness is less than the minimum thickness, replace the front disc.

2.24,0.948 2.563,1.781 2.563,1.781 2.656,1.781 true 2.75,1.698 3.063,1.854 0.313,0.156 10 false *a

*a	Dial Indicator with Magnetic Base

Using a dial indicator with magnetic base, measure the disc runout 10 mm (0.394 in.) from the outer edge of the front disc.

Maximum disc runout:

0.05 mm (0.00197 in.)

NOTICE:

Keep the magnet of the dial indicator away from the front speed sensor.

HINT:

If the runout exceeds the maximum value, change the installation position of the front disc to minimize the runout. If the runout exceeds the maximum even when the installation position is changed, grind the front disc. If the front disc thickness is less than the minimum, replace the front disc.
