RM36D0EC _52 Drivetrain _083071 AXLE AND DIFFERENTIAL _0402904 REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL A

AXLE AND DIFFERENTIAL  REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL  REPLACEMENT


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 42340D 2.REMOVE REAR DRIVE SHAFT OIL SEAL LH

a.

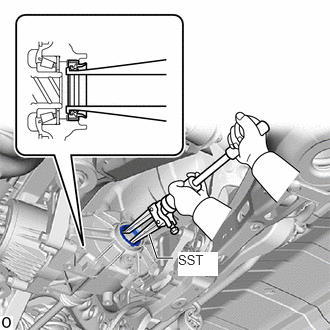

C403129N01
1.552,2.438 1.635,2.688 1.635,2.688 1.802,2.688 true 1.854,2.625 2.271,2.875 0.417,0.25 10 true SST

Using SST, tap out the rear drive shaft oil seal LH.

SST
09308-00010

NOTICE:

Be careful not to damage the rear differential carrier sub-assembly.



Hide 42340D 3.INSTALL REAR DRIVE SHAFT OIL SEAL LH

a.

Coat the lip of a new rear drive shaft oil seal LH with MP grease.


b.

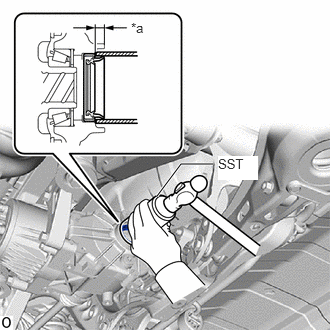

C403130C01
1.635,2.042 1.885,1.708 1.885,1.708 2.219,1.708 true 1.365,0.208 1.781,0.458 0.417,0.25 10 false *a 2.271,1.625 2.688,1.875 0.417,0.25 10 true SST
*a Depth


Using SST and a hammer, install the rear drive shaft oil seal LH to the rear differential carrier sub-assembly.

SST
09223-00010

Standard Depth:

6.7 to 7.7 mm (0.264 to 0.303 in.)


NOTICE:
·

Tap the oil seal uniformly so that the oil seal is straight.

·

Do not tap the oil seal in too far.
