RM38N0EC _59 Vehicle Exterior _111846 WIPER / WASHER _0500797 WASHER NOZZLE(for Rear Television Camera) A

WIPER / WASHER WASHER NOZZLE(for Rear Television Camera) INSTALLATION

PROCEDURE

Hide Display 867F0A 1.INSTALL NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY

0,0 0,0 false

Install in this Direction

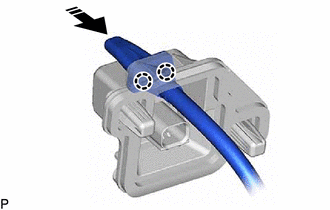

Engage the 2 claws to install the No. 1 camera cleaner nozzle assembly.

NOTICE:: Confirm the engagement of the No. 1 camera cleaner nozzle assembly and rear television camera assembly by listening for the click sound of the lock engaging.

Hide Display 86790D 2.INSTALL REAR TELEVISION CAMERA ASSEMBLY

Hide Display 3.PERFORM CALIBRATION (w/ Panoramic View Monitor System)

Hide Display 4.PERFORM CALIBRATION (w/ Parking Assist Monitor System)
