PARK ASSIST / MONITORING  TELEVISION CAMERA(for Rear)  INSTALLATION

867F0A 1.INSTALL NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY (w/ Rear Camera Washer)

86790D 2.INSTALL REAR TELEVISION CAMERA ASSEMBLY

a.

When reusing the rear television camera assembly:

i.

0,0 0,0 false

Install in this Direction

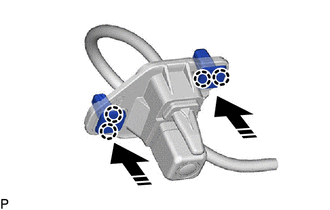

Engage the 4 claws to install 2 new grommets as shown in the illustration.

b.

0,0 0,0 false

Install in this Direction

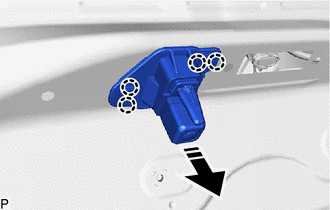

Engage the 4 claws to temporarily install the rear television camera assembly as shown in the illustration.

c.

Install the rear television camera assembly with the 2 screws.

d.

Connect the connector.

e.

w/ Rear Camera Washer:

i.

Engage the clamp.

ii.

Connect the washer hose.

3.INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY WITH LIGHT

4.PERFORM CALIBRATION (w/ Parking Assist Monitor System)

5.PERFORM CALIBRATION (w/ Panoramic View Monitor System)
