M20C-FKS, M20D-FKS ENGINE CONTROL  CRANKSHAFT POSITION SENSOR  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 11401G 1.INSTALL CRANKSHAFT POSITION SENSOR

a.

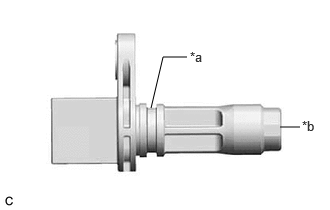

A456842C01
1.573,1.125 1.698,0.594 1.698,0.594 1.948,0.594 false 2.917,1.323 3.125,1.323 false 1.979,0.51 2.292,0.667 0.313,0.156 10 false *a 3.146,1.229 3.396,1.469 0.25,0.24 10 false *b
*a O-ring Groove
*b Crankshaft Position Sensor Tip


Perform this procedure only when reusing the crankshaft position sensor.

i.

Clean the O-ring groove of the crankshaft position sensor.

NOTICE:

Make sure the O-ring groove is free of foreign matter.



ii.

Install a new O-ring to the crankshaft position sensor.

NOTICE:

Set the O-ring on the tip of the crankshaft position sensor and roll it into the O-ring groove with bare hands to install it.



iii.
A407852C01
0.906,1.344 1.031,1.49 1.031,1.49 1.25,1.49 false 2.219,3.156 2.219,2.865 false 2.521,0.49 2.688,0.26 2.688,0.26 2.896,0.26 false 2.521,1.354 2.688,1.479 2.688,1.479 2.927,1.479 false 2.823,2.875 3.104,2.875 false 1.927,2.26 2.208,2.26 false 2.208,1.49 2.208,1.198 false 0.906,2.99 1.031,3.135 1.031,3.135 1.25,3.135 false 0.865,0.667 1.208,0.51 1.208,0.51 1.406,0.51 true 0.865,2.302 1.208,2.146 1.208,2.146 1.406,2.146 true 1.292,1.417 1.604,1.573 0.313,0.156 10 false *1 2.938,0.177 3.146,0.385 0.208,0.208 10 false *c 0.313,0.333 0.625,0.49 0.313,0.156 10 false *a 0.323,2 0.635,2.156 0.313,0.156 10 false *b 0.583,0.854 0.74,1.052 0.156,0.198 10 true A 1.031,0.854 1.188,1.052 0.156,0.198 10 true A 1.031,2.51 1.188,2.708 0.156,0.198 10 true B 0.604,2.51 0.76,2.708 0.156,0.198 10 true B 2.156,1.51 2.469,1.667 0.313,0.156 10 false *1 2.156,3.177 2.469,3.333 0.313,0.156 10 false *1 2.344,0.094 2.802,0.292 0.458,0.198 10 false A - A 2.354,1.875 2.813,2.073 0.458,0.198 10 false B - B 3.135,2.813 3.344,3.021 0.208,0.208 10 false *c 2.969,1.406 3.177,1.615 0.208,0.208 10 false *c 1.75,2.177 1.958,2.385 0.208,0.208 10 false *c 1.281,3.063 1.594,3.219 0.313,0.156 10 false *1 1.448,0.448 1.656,0.656 0.208,0.208 10 false *c 1.438,2.083 1.646,2.292 0.208,0.208 10 false *c
*1 O-ring
*a OK
*b NG
*c Seam


Check if the O-ring is twisted.

HINT:

Check the entire circumference of the seam of the O-ring for twisting.




b.

Apply a light coat of engine oil to the O-ring of the crankshaft position sensor.


c.

Using an 8 mm socket wrench, install the crankshaft position sensor to the cylinder block sub-assembly with the bolt.

Torque:
10 N*m (102 kgf*cm, 7 ft.*lbf)

NOTICE:
·

If the crankshaft position sensor has been struck or dropped, replace it.

·

Make sure that the O-ring is not cracked or moved out of place when installing the crankshaft position sensor.




d.

Connect the crankshaft position sensor connector.
