RM38N0EC _58 Vehicle Interior _112347 MY SETTINGS _0509387 MY SETTINGS SYSTEM C

MY SETTINGS  MY SETTINGS SYSTEM  B151587  Facial Recognition Video Line Signal (Navigation Control Module) Missing Message


DESCRIPTION

This DTC is stored when LVDS communication between the navigation receiver assembly.

DTC No. Detection Item DTC Detection Condition Trouble Area
B151587 Facial Recognition Video Line Signal (Navigation Control Module) Missing Message After approximately 40 seconds have elapsed since the ignition switch was turned to ON, there is no communication between the combination meter assembly and navigation receiver assembly for approximately 4 seconds.
·

Combination meter assembly

·

Navigation receiver assembly

·

Wire harness or connector

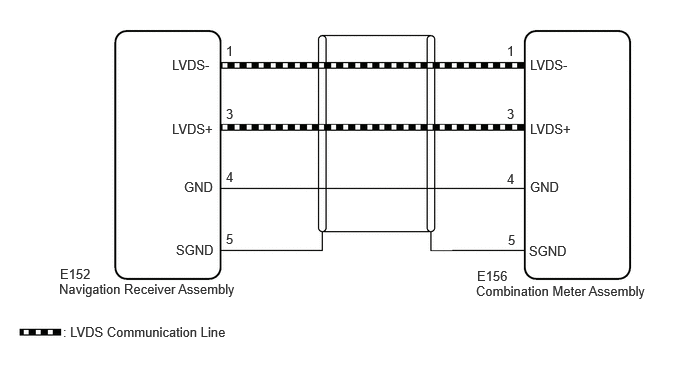

WIRING DIAGRAM

B608230E03
0.656,3.375 4.479,3.573 3.823,0.198 10 false : LVDS Communication Line 0.615,2.927 3.896,3.135 3.281,0.208 10 false Navigation Receiver Assembly 4.958,2.948 7.156,3.156 2.198,0.208 10 false Combination Meter Assembly 1.792,0.594 2.323,0.792 0.531,0.198 10 false LVDS- 1.792,1.26 2.323,1.458 0.531,0.198 10 false LVDS+ 1.917,1.865 2.448,2.063 0.531,0.198 10 false GND 1.833,2.521 2.365,2.719 0.531,0.198 10 false SGND 0.625,2.771 1.156,2.969 0.531,0.198 10 false E152 4.969,2.792 5.5,2.99 0.531,0.198 10 false E156 5.521,0.594 6.052,0.792 0.531,0.198 10 false LVDS- 5.521,1.26 6.052,1.458 0.531,0.198 10 false LVDS+ 5.521,1.865 6.052,2.063 0.531,0.198 10 false GND 5.51,2.531 6.042,2.729 0.531,0.198 10 false SGND 2.354,0.448 2.885,0.646 0.531,0.198 10 false 1 2.354,1.104 2.885,1.302 0.531,0.198 10 false 3 2.354,1.76 2.885,1.958 0.531,0.198 10 false 4 2.354,2.406 2.885,2.604 0.531,0.198 10 false 5 5.281,0.448 5.813,0.646 0.531,0.198 10 false 1 5.281,1.104 5.813,1.302 0.531,0.198 10 false 3 5.281,1.781 5.813,1.979 0.531,0.198 10 false 4 5.292,2.417 5.823,2.615 0.531,0.198 10 false 5

CAUTION / NOTICE / HINT

NOTICE:

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.


PROCEDURE

1.CHECK FOR DTC
a.

If DTC B151587 for Navigation System is output, perform troubleshooting for DTC B151587 for Navigation System first.

Body Electrical > Navigation System > Trouble Codes
50001 496
Result:
Result Proceed to
B151587 for Navigation System is output A
B151587 for Navigation System is not output B




A

GO TO NAVIGATION SYSTEM

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING


B

2.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - COMBINATION METER ASSEMBLY)
2.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - COMBINATION METER ASSEMBLY)
a.

Disconnect the E156 combination meter assembly connector.


b.

Disconnect the E152 navigation receiver assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E152,E156)Location & Routing

Click Connector(E152)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Navigation Receiver Assembly

Click Connector(E156)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Combination Meter Assembly

E152-1 (LVDS-) - E156-1 (LVDS-) Always Below 1 Ω
E152-1 (LVDS-) or E156-1 (LVDS-) - Body ground Always 10 kΩ or higher
E152-3 (LVDS+) - E156-3 (LVDS+) Always Below 1 Ω
E152-3 (LVDS+) or E156-3 (LVDS+) - Body ground Always 10 kΩ or higher
E152-4 (GND) - E156-4 (GND) Always Below 1 Ω
E152-4 (GND) or E156-4 (GND) - Body ground Always 10 kΩ or higher
E152-5 (SGND) - E156-5 (SGND) Always Below 1 Ω
E152-5 (SGND) or E156-5 (SGND) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

3.REPLACE NAVIGATION RECEIVER ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.REPLACE NAVIGATION RECEIVER ASSEMBLY
a.

Replace the navigation receiver assembly with a new or known good one.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL


Result:
Proceed to
NEXT



NEXT

4.CHECK DTC
4.CHECK DTC
a.

Clear the DTCs.

Body Electrical > Combination Meter > Clear DTCs
50002 409

b.

Turn the ignition switch off.


c.

Turn the ignition switch to ON.


d.

Check for DTCs.

Body Electrical > Combination Meter > Trouble Codes
50001 409

OK:

DTC B151587 is outputs.


Result:
Proceed to
OK
NG



OK

END (NAVIGATION RECEIVER ASSEMBLY IS DEFECTIVE)

NG

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL
