WIPER / WASHER WASHER NOZZLE(for Rear Television Camera) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during No. 1 camera cleaner nozzle assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
Rear television camera assembly*	Rear television camera view adjustment	Panoramic View Monitor System	(202409,999999,_56,_111825,_0500432,RM100000002O1F6,)
Rear television camera assembly*	· Parking assist monitor system initialization · Television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	(202409,999999,_56,_111825,_0524148,RM100000002OUWG,)
Replacement or removal and installation of 2 or more parts: · Front television camera assembly, radiator grille sub-assembly or front bumper assembly · Rear television camera assembly · Side television camera assembly LH or outer rear view mirror assembly LH · Side television camera assembly RH or outer rear view mirror assembly RH	Television camera view adjustment	Panoramic View Monitor System	(202409,999999,_56,_111825,_0500432,RM100000002O1F6,)

PROCEDURE

Hide Display 86790D 1.REMOVE REAR TELEVISION CAMERA ASSEMBLY

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>TELEVISION CAMERA (for Rear)>REMOVAL202409,999999,_56,_111825,_0500529,RM100000002OMK4,

Hide Display 867F0A 2.REMOVE NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY

1.708,1 2.219,0.74 true 2.271,0.646 2.583,0.844 0.313,0.198 10 false *a

*a	Protective Tape
	Remove in this Direction

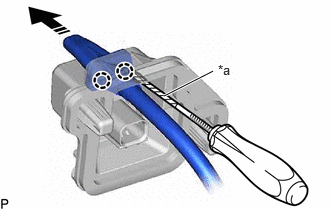

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the No. 1 camera cleaner nozzle assembly as shown in the illustration.
