PARK ASSIST / MONITORING  TELEVISION CAMERA(for Rear)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear television camera assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

Rear television camera assembly* Rear television camera view adjustment Panoramic View Monitor System (Click here)
·

Parking assist monitor system initialization

·

Television camera assembly optical axis (Back camera position setting)


Parking Assist Monitor System (Click here)
Replacement or removal and installation of 2 or more parts:
·

Front television camera assembly, radiator grille sub-assembly or front bumper assembly

·

Rear television camera assembly

·

Side television camera assembly LH or outer rear view mirror assembly LH

·

Side television camera assembly RH or outer rear view mirror assembly RH


Television camera view adjustment Panoramic View Monitor System (Click here)

PROCEDURE

Hide 86790D 2.REMOVE REAR TELEVISION CAMERA ASSEMBLY

a.

w/ Rear Camera Washer:

i.

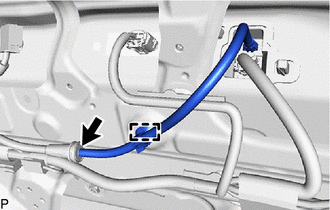

E475088

Disconnect the washer hose.

HINT:

Use a container to collect the windshield washer fluid.



ii.

Disengage the clamp.



b.

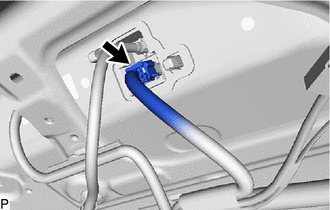

E475089

Disconnect the connector.


c.

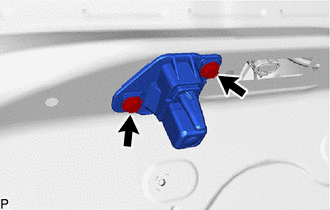

E475090

Remove the 2 screws.


d.

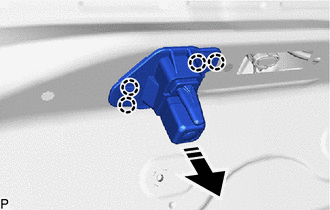

E475091C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 4 claws and remove the rear television camera assembly as shown in the illustration.


e.

When reusing the rear television camera assembly:

i.

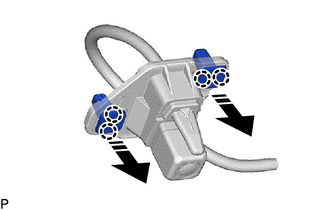

E475093C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 4 claws to remove the 2 grommets as shown in the illustration.
