REAR SUSPENSION REAR SHOCK ABSORBER REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear shock absorber assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*1: Also necessary after performing a tire rotation. *2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location. *3: The vehicle height changes because of suspension or tire replacement. |
|||
| Rear wheel alignment adjustment | for HV Model
Perform "Calibration" |
·
DTCs are stored ·
ABS warning light illuminates ·
Brake system warning light (yellow indicator) illuminates ·
Slip indicator light illuminates ·
Electronically controlled brake system does not operate correctly |
( 202203,999999,_54,_111814,_0500722,RM1000000022HHI,)
|
for Gasoline Model
Perform "Calibration" |
·
DTCs are stored ·
ABS warning light illuminates ·
Slip indicator light illuminates ·
Electronically controlled brake system does not operate correctly |
(202203,999999,_54,_111814,_0500728,RM1000000022HI0,)
|
|
| Tires | ·
Initialization*1*2 ·
Tire Position Identification*1*2 |
Tire Pressure Warning System | Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System)
( 202409,999999,_V1,_111780,_0504977,RM100000002OMBP,)
|
| Suspension parts*3 | Parking assist ECU initialization | Panoramic View Monitor System | (202409,999999,_56,_111825,_0500432,RM100000002O1F6,)
|
| Rear television camera assembly optical axis (Back camera position setting) | Parking Assist Monitor System | (202409,999999,_56,_111825,_0524148,RM100000002OUWG,)
|
|
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
1.REMOVE REAR WHEEL
48540
2.LOOSEN REAR SHOCK ABSORBER ASSEMBLY

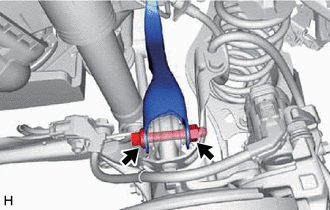

| *1 | Rear Axle Carrier Pin |
Loosen the nut of the rear shock absorber assembly.
- NOTICE:
-
Hold the rear axle carrier pin while rotating the nut.
48540
3.SEPARATE REAR SHOCK ABSORBER ASSEMBLY

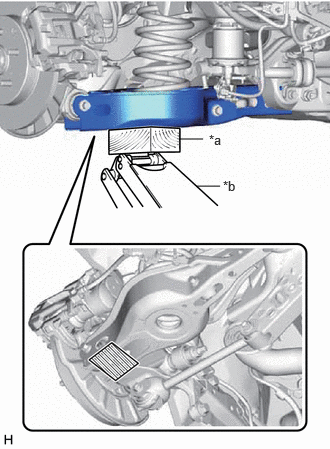

| *a | Wooden Block |
| *b | Jack |
|
Wooden Block Placement Location |
Using a jack and wooden block, support the rear No. 2 suspension arm assembly.
- NOTICE:
- ·
When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
·Make sure to perform this operation with the vehicle kept as low as possible.
Remove the 2 bolts and separate the rear shock absorber assembly from the vehicle.
48790
4.SEPARATE REAR UPPER CONTROL ARM ASSEMBLY
Remove the bolt and nut, and separate the rear upper control arm assembly from the rear axle carrier sub-assembly.
- NOTICE:
-
Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
48540
5.REMOVE REAR SHOCK ABSORBER ASSEMBLY
| *1 | Rear Axle Carrier Pin |
Remove the nut, plate washer and rear shock absorber assembly from the rear axle carrier sub-assembly.
- NOTICE:
-
Hold the rear axle carrier pin while rotating the nut.
48554A
6.REMOVE REAR SHOCK ABSORBER CAP

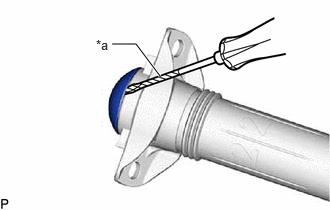

| *a | Protective Tape |
Using a screwdriver with its tip wrapped with protective tape, remove the rear shock absorber cap from the rear shock absorber assembly.
48760B
7.REMOVE REAR SUSPENSION SUPPORT ASSEMBLY

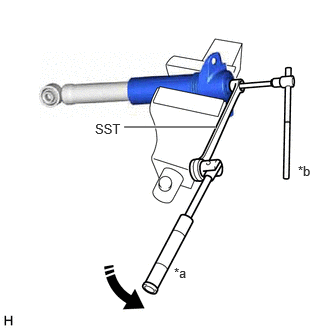

| *a | Turn |
| *b | Hold |
Secure the rear shock absorber assembly in a vise using aluminum plates.
- NOTICE:
-
Do not overtighten the vise.
Using SST and a 6 mm hexagon socket wrench, hold the rear shock absorber rod and remove the rear support to rear shock absorber nut.
- SST
- 09729-00170
Remove the rear suspension support assembly from the rear shock absorber assembly.
