RM38N0EC _56 Audio / Visual / Telematics _111825 PARK ASSIST / MONITORING _0500530 PARKING ASSIST ECU A

PARK ASSIST / MONITORING PARKING ASSIST ECU REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during parking assist ECU removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Parking assist ECU	Parking assist ECU initialization	Panoramic View Monitor System	(202409,999999,_56,_111825,_0500432,RM100000002O1F6,)

PROCEDURE

Hide Display 1.REMOVE CONSOLE BOX ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202111,999999,_58,_111843,_0501136,RM100000001Z534,

Hide Display 86792C 2.REMOVE PARKING ASSIST ECU

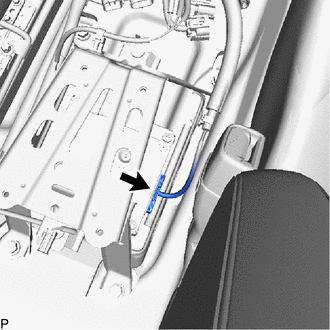

Disconnect the connector.

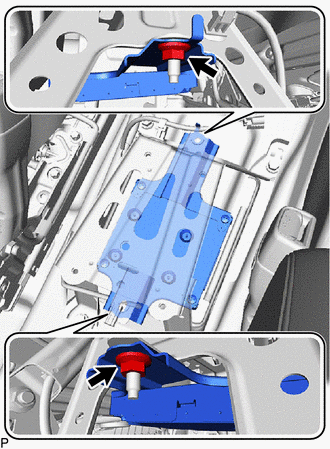

Remove the 2 nuts and parking assist ECU.
