RM38N0EC _59 Vehicle Exterior _111849 EXTERIOR PANELS / TRIM _0500108 BACK DOOR OUTSIDE GARNISH A

EXTERIOR PANELS / TRIM  BACK DOOR OUTSIDE GARNISH  INSTALLATION


PROCEDURE

Hide 1.INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY WITH LIGHT

a.

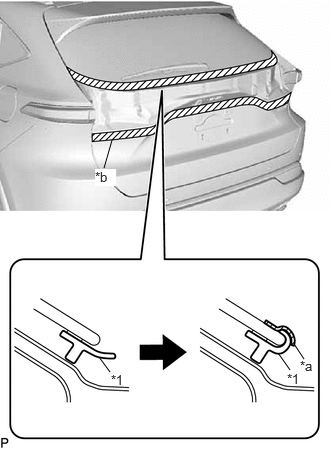

B594251C01
2.896,3.677 3.021,3.854 false 1.031,3.719 1.146,3.875 false 3.063,3.583 3.167,3.74 false 1.167,1.458 1.083,1.75 false 1.156,3.875 1.469,4.031 0.313,0.156 10 false *1 3.125,3.729 3.323,3.917 0.198,0.188 10 false *a 0.99,1.76 1.208,1.938 0.219,0.177 10 true *b 2.99,3.865 3.302,4.021 0.313,0.156 10 false *1
*1 Back Window Lower Moulding
*a Tape
*b Protective Tape


Pull back the back window lower moulding and secure it with tape as shown in the illustration.

NOTICE:

Be careful not to damage the back window lower moulding.



b.

Connect the connector.


c.

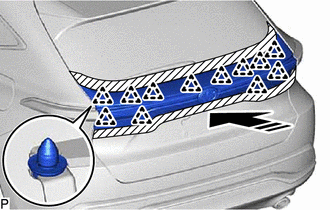

B629034C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 12 clips as shown in the illustration.


d.

Install the back door outside garnish sub-assembly with light with the 4 bolts.

Torque:
5.0 N*m (51 kgf*cm, 44 in.*lbf)
