HEATING / AIR CONDITIONING  AIR CONDITIONING SYSTEM(for Gasoline Model)  B14C987  Lost Communication with PM Sensor LIN Missing Message


DESCRIPTION

The air conditioning particulate matter sensor (air conditioning duct sub-assembly) communicates with the air conditioning amplifier assembly via LIN communication.

If the air conditioning amplifier assembly cannot receive a signal from the air conditioning particulate matter sensor (air conditioning duct sub-assembly), this DTC is stored.

DTC No. Detection Item DTC Detection Condition Trouble Area Memory DTC Output from Priority
B14C987 Lost Communication with PM Sensor LIN Missing Message Lost communication with air conditioning control assembly
·

Harness or connector

·

Air conditioning particulate matter sensor (Air conditioning duct sub-assembly)

·

Air conditioning amplifier assembly


Memorized
(10 sec. or more)* 		Air Conditioner A

*: The air conditioning amplifier assembly stores this DTC if the malfunction has occurred for the period of time indicated in the brackets.

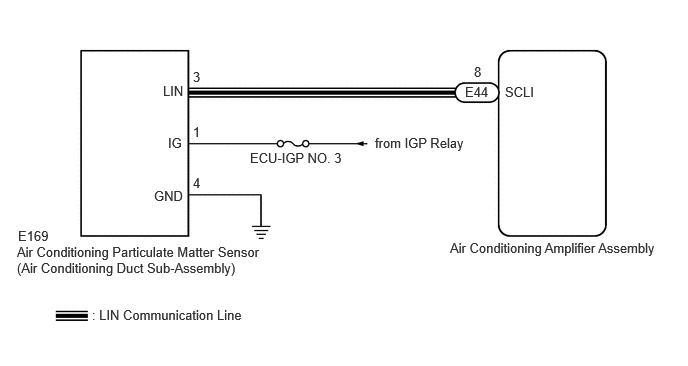

WIRING DIAGRAM

E468346E11
0.188,2.375 0.646,2.573 0.458,0.198 10 false E169 1.698,0.865 2.156,1.063 0.458,0.198 10 false LIN 1.75,1.406 2,1.594 0.25,0.188 10 false IG 1.604,1.958 2.063,2.156 0.458,0.198 10 false GND 2.604,1.563 3.635,1.792 1.031,0.229 10 false ECU-IGP NO. 3 3.906,1.406 5.073,1.698 1.167,0.292 10 false from IGP Relay 5.26,0.875 5.719,1.073 0.458,0.198 10 false SCLI 4.844,0.875 5.302,1.073 0.458,0.198 10 false E44 0.177,2.542 2.75,2.917 2.573,0.375 10 false Air Conditioning Particulate Matter Sensor (Air Conditioning Duct Sub-Assembly) 4.688,2.5 6.927,2.75 2.24,0.25 10 false Air Conditioning Amplifier Assembly 0.958,3.198 2.677,3.406 1.719,0.208 10 false : LIN Communication Line 2.01,0.719 2.469,0.917 0.458,0.198 10 false 3 2.01,1.292 2.469,1.49 0.458,0.198 10 false 1 2.01,1.823 2.469,2.021 0.458,0.198 10 false 4 4.938,0.667 5.396,0.865 0.458,0.198 10 false 8

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses for circuits related to this system before performing the following procedure.


PROCEDURE

1.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING PARTICULATE MATTER SENSOR (AIR CONDITIONING DUCT SUB-ASSEMBLY) - IG POWER SOURCE AND BODY GROUND)
a.

Disconnect the E169 air conditioning particulate matter sensor (air conditioning duct sub-assembly) connector.


b.

Measure the voltage and resistance according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition

Click Location & Routing(E169)Location & Routing

Click Connector(E169)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Air Conditioning Particulate Matter Sensor

E169-1 (IG) - Body ground Ignition switch ON 11 to 14 V


Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E169)Location & Routing

Click Connector(E169)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Air Conditioning Particulate Matter Sensor

E169-4 (GND) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING PARTICULATE MATTER SENSOR (AIR CONDITIONING DUCT SUB-ASSEMBLY) - AIR CONDITIONING AMPLIFIER ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING PARTICULATE MATTER SENSOR (AIR CONDITIONING DUCT SUB-ASSEMBLY) - AIR CONDITIONING AMPLIFIER ASSEMBLY)
a.

Disconnect the E44 air conditioning amplifier assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E169,E44)Location & Routing

Click Connector(E169)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Air Conditioning Particulate Matter Sensor

Click Connector(E44)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Air Conditioning Amplifier Assembly

E169-3 (LIN) - E44-8 (SCLI) Always Below 1 Ω
E169-3 (LIN) or E44-8 (SCLI) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

3.CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY
a.

Connect the E44 air conditioning amplifier assembly connector.


b.

Turn the ignition switch to ON.


c.

Using an oscilloscope, check the waveform.

OK:

A waveform is displayed.


Item Content
Terminal No. E169-3 (LIN) - Body ground
Condition Ignition switch ON


Result:
Proceed to
OK
NG



OK

REPLACE AIR CONDITIONING PARTICULATE MATTER SENSOR (AIR CONDITIONING DUCT SUB-ASSEMBLY)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>FRONT AIR CONDITIONING UNIT>DISASSEMBLY


NG

REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING AMPLIFIER>REMOVAL
