FRONT SUSPENSION  FRONT LOWER SUSPENSION ARM  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front lower No. 1 suspension arm sub-assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*1: Also necessary after performing a tire rotation.

*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.

*3: The vehicle height changes because of suspension or tire replacement.

Tires
·

Initialization*1*2

·

Tire Position Identification*1*2


Tire Pressure Warning System Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System)
(Click here)
Front wheel alignment adjustment
for HV Model

Perform "Calibration"


·

DTCs are stored

·

ABS warning light illuminates

·

Brake system warning light (yellow indicator) illuminates

·

Slip indicator light illuminates

·

Electronically controlled brake system does not operate correctly


(Click here)
for Gasoline Model
·

Perform reset memory

·

Perform "Calibration"


·

DTCs are stored

·

ABS warning light illuminates

·

Slip indicator light illuminates

·

Electronically controlled brake system does not operate correctly


(Click here)
Suspension parts*3 Parking assist ECU initialization Panoramic View Monitor System (Click here)
Rear television camera assembly optical axis (Back camera position setting) Parking Assist Monitor System (Click here)

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 51468B 6.REMOVE ENGINE UNDER COVER HEAT INSULATOR (for A25D-FXS, A25F-FXS)

Hide 48069 11.REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

a.
C433755

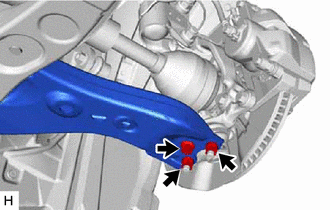

Remove the bolt and 2 nuts and separate the front lower No. 1 suspension arm sub-assembly from the front lower ball joint assembly.


b.
C433756

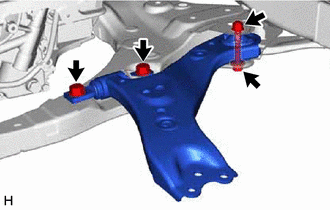

Remove the 3 bolts, nut and front lower No. 1 suspension arm sub-assembly from the front frame assembly.

NOTICE:

Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.



c.

Remove the front lower arm bushing stopper from the front lower No. 1 suspension arm sub-assembly.
