EXTERIOR PANELS / TRIM  FRONT FENDER  DISASSEMBLY


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front fender removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedures Necessary Procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

·

Front bumper assembly*

·

Front television camera assembly*

·

Radiator grille sub-assembly*


Front television camera view adjustment Panoramic View Monitor System (Click here)

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 53896B 5.REMOVE FRONT FENDER FRONT SPLASH SHIELD

a.
B635788

Remove the 3 screws.


b.

Disengage the hook to remove the front fender front splash shield.


Hide 53876A 6.REMOVE FRONT FENDER LINER

a.

Remove the 2 screws and 10 clips.

B635789C01
6.802,3.656 7,3.854 0.198,0.198 10 true *c 6.333,2.24 6.531,2.438 0.198,0.198 10 true *a 5.135,3.771 5.333,3.969 0.198,0.198 10 true *c 4.229,3.146 4.427,3.344 0.198,0.198 10 false *c 4.042,4.333 4.24,4.531 0.198,0.198 10 true *c 0.906,0.979 1.104,1.177 0.198,0.198 10 true *a 1.177,1.24 1.375,1.438 0.198,0.198 10 true *b 6.594,2.469 6.792,2.667 0.198,0.198 10 true *a 6.729,2.698 6.927,2.896 0.198,0.198 10 true *a 6.833,3.01 7.031,3.208 0.198,0.198 10 true *a 6.281,4.094 6.479,4.292 0.198,0.198 10 true *c 5.729,3.052 5.927,3.25 0.198,0.198 10 true *a 5.396,3.26 5.594,3.458 0.198,0.198 10 true *b 3.01,3.156 3.208,3.354 0.198,0.198 10 false *c 1.969,3.438 2.167,3.635 0.198,0.198 10 true *c 2.052,3.729 2.25,3.927 0.198,0.198 10 true *c 1.688,3.927 1.885,4.125 0.198,0.198 10 true *c 1.76,4.188 1.958,4.385 0.198,0.198 10 true *c
*a Grommet *b Screw
*c Clip - -



b.

Remove the 6 grommets and front fender liner.


Hide 53384B 7.REMOVE HOOD CENTER CUSHION

a.

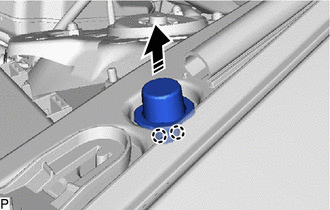

B635790C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 2 claws to remove the hood center cushion as shown in the illustration.


Hide 53808E 8.REMOVE FENDER APRON MUDGUARD SEAL SUB-ASSEMBLY

a.
B635792

Disengage the claw to remove the fender apron mudguard seal sub-assembly.


Hide 53883B 10.REMOVE FRONT FENDER SEAL

a.

Disengage the guide.

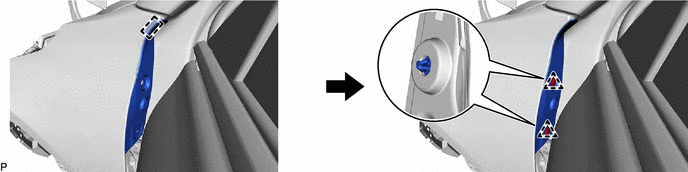

B678164


b.

Disengage the 2 clips to remove the front fender seal.


Hide 53828K 11.REMOVE FRONT FENDER SIDE PANEL PROTECTOR

a.
B635793

Disengage the 3 clips and claw to remove the front fender side panel protector.


Hide 53802 12.REMOVE FRONT FENDER SUB-ASSEMBLY

a.

Apply protective tape around the front fender sub-assembly as shown in the illustration.

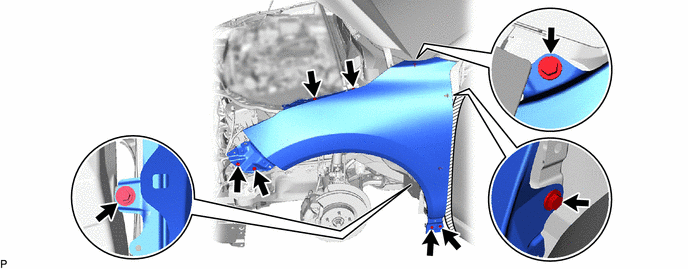

B635794C01
0,0 0,0 false
V100155

Protective Tape - -



b.

Remove the 9 bolts and front fender sub-assembly.


Hide 53154D 13.REMOVE RADIATOR GRILLE SIDE AIR GUIDE

HINT:

Perform this procedure only when replacement of the radiator grille side air guide is necessary.


a.

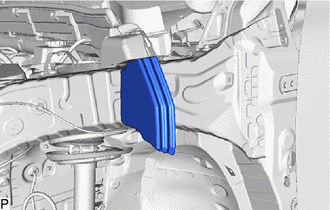

B635795

Remove the radiator grille side air guide.


Hide 53156J 14.REMOVE RADIATOR GRILLE SEAL

HINT:

Perform this procedure only when replacement of the radiator grille seal is necessary.


a.
B635796

Disengage the clip to remove the radiator grille seal.
