RM38N0EC _56 Audio / Visual / Telematics _111823 NAVIGATION / MULTI INFO DISPLAY _0502893 NAVIGATION SYSTEM J

NAVIGATION / MULTI INFO DISPLAY NAVIGATION SYSTEM USB Audio System Recognition/Play Error

DESCRIPTION

When a USB device is connected to the USB jack of the No. 1 stereo jack adapter assembly, it must have playable files. The device must also communicate with and be recognized by the navigation receiver assembly. This diagnostic procedure is for when a device is not recognized, or files from the device cannot be played normally.

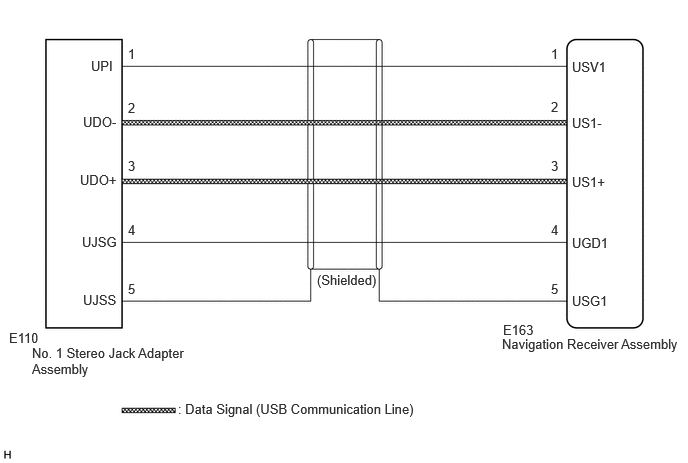

WIRING DIAGRAM

0.333,3.594 1.99,3.99 1.656,0.396 10 false No. 1 Stereo Jack Adapter Assembly 0.094,3.438 0.5,3.635 0.406,0.198 10 false E110 0.948,0.604 1.552,0.823 0.604,0.219 10 false UPI 0.865,1.188 1.469,1.406 0.604,0.219 10 false UDO- 0.833,1.792 1.438,2.01 0.604,0.219 10 false UDO+ 0.854,2.438 1.458,2.656 0.604,0.219 10 false UJSG 0.865,3.042 1.469,3.26 0.604,0.219 10 false UJSS 1.333,2.927 1.531,3.135 0.198,0.208 10 false 5 1.333,2.313 1.531,2.521 0.198,0.208 10 false 4 1.333,1.646 1.531,1.854 0.198,0.208 10 false 3 1.333,1.042 1.531,1.25 0.198,0.208 10 false 2 1.333,0.479 1.531,0.688 0.198,0.208 10 false 1 3.302,2.833 4.833,3.031 1.531,0.198 10 false (Shielded) 5.958,0.615 6.563,0.833 0.604,0.219 10 false USV1 5.958,1.198 6.563,1.417 0.604,0.219 10 false US1- 5.958,1.813 6.563,2.031 0.604,0.219 10 false US1+ 5.958,2.448 6.563,2.667 0.604,0.219 10 false UGD1 5.958,3.052 6.563,3.271 0.604,0.219 10 false USG1 5.74,2.927 5.938,3.135 0.198,0.208 10 false 5 5.74,2.313 5.938,2.521 0.198,0.208 10 false 4 5.74,1.646 5.938,1.854 0.198,0.208 10 false 3 5.74,1.031 5.938,1.24 0.198,0.208 10 false 2 5.74,0.479 5.938,0.688 0.198,0.208 10 false 1 5.229,3.5 7.156,3.969 1.927,0.469 10 false Navigation Receiver Assembly 5.24,3.354 5.75,3.583 0.51,0.229 10 false E163 1.854,4.177 4.573,4.438 2.719,0.26 10 false : Data Signal (USB Communication Line)

CAUTION / NOTICE / HINT

NOTICE:: Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Navigation System.; Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>PRECAUTION202409,999999,_56,_111823,_0502893,RM100000002OBSO,

PROCEDURE

1.CHECK USB STORAGE DEVICE OR "iPod"

Disconnect the USB storage device from the No. 1 stereo jack adapter assembly.

Check that playable files exist in the USB storage device.

Check that the USB storage device being used by the customer is a compatible version and format.

Result:

Result	Proceed to
The format of the USB storage device is compatible	A
Playable files do not exist The format of the USB storage device is not compatible	B

2.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - NO. 1 STEREO JACK ADAPTER ASSEMBLY)

END

2.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - NO. 1 STEREO JACK ADAPTER ASSEMBLY)

Disconnect the E163 navigation receiver assembly connector.

Disconnect the E110 No. 1 stereo jack adapter assembly connector.

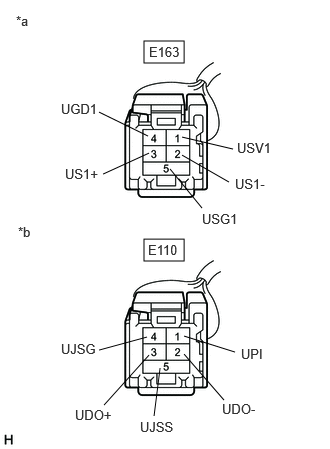

1.5,2.49 1.917,2.719 0.417,0.229 1.5,0.427 1.917,0.656 0.417,0.229 1.031,1.167 1.542,1.417 false 1.896,1.615 2.385,1.896 false 1.896,1.427 2.427,1.552 false 1.073,1.813 1.552,1.594 false 1.771,1.76 2.104,2.167 false 1.917,3.5 2.448,3.667 false 1.917,3.688 2.333,4.167 false 1.083,4.219 1.552,3.698 false 1.031,3.646 1.531,3.51 false 1.604,4.333 1.667,3.833 false 0.167,0.135 0.479,0.333 0.313,0.198 10 false *a 0.188,2.333 0.5,2.531 0.313,0.198 10 false *b 1.552,0.458 1.927,0.656 0.375,0.198 10 false E163 1.542,2.521 2.052,2.823 0.51,0.302 10 false E110 0.635,1.052 1.135,1.25 0.5,0.198 10 false UGD1 2.469,1.458 2.969,1.656 0.5,0.198 10 false USV1 0.677,1.729 1.177,1.927 0.5,0.198 10 false US1+ 2.104,2.198 2.604,2.396 0.5,0.198 10 false USG1 2.51,3.604 3.01,3.802 0.5,0.198 10 false UPI 2.313,4.177 2.813,4.375 0.5,0.198 10 false UDO- 0.781,4.24 1.281,4.438 0.5,0.198 10 false UDO+ 0.635,3.552 1.135,3.75 0.5,0.198 10 false UJSG 1.458,4.365 1.958,4.563 0.5,0.198 10 false UJSS 2.448,1.833 2.948,2.031 0.5,0.198 10 false US1-

*a	Front view of wire harness connector (to Navigation Receiver Assembly)
*b	Front view of wire harness connector (to No. 1 Stereo Jack Adapter Assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(E110,E163)Location & Routingewd_type=routing;type=c,c;code=E110,E163 Click Connector(E110)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 1 Stereo Jack Adapter Assemblyewd_type=component;type=c;code=E110;pinno=1,2,3,4,5 Click Connector(E163)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Navigation Receiver Assemblyewd_type=component;type=c;code=E163;pinno=1,2,3,4,5
E110-1 (UPI) - E163-1 (USV1)	Always	Below 1 Ω
E110-2 (UDO-) - E163-2 (US1-)	Always	Below 1 Ω
E110-3 (UDO+) - E163-3 (US1+)	Always	Below 1 Ω
E110-4 (UJSG) - E163-4 (UGD1)	Always	Below 1 Ω
E110-5 (UJSS) - E163-5 (USG1)	Always	Below 1 Ω
E110-1 (UPI) or E163-1 (USV1) - Body ground	Always	10 kΩ or higher
E110-2 (UDO-) or E163-2 (US1-) - Body ground	Always	10 kΩ or higher
E110-3 (UDO+) or E163-3 (US1+) - Body ground	Always	10 kΩ or higher
E110-4 (UJSG) or E163-4 (UGD1) - Body ground	Always	10 kΩ or higher
E110-5 (UJSS) or E163-5 (USG1) - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

3.INSPECT NAVIGATION RECEIVER ASSEMBLY (NO. 1 STEREO JACK ADAPTER ASSEMBLY POWER SOURCE)

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.INSPECT NAVIGATION RECEIVER ASSEMBLY (NO. 1 STEREO JACK ADAPTER ASSEMBLY POWER SOURCE)

Disconnect the E110 No. 1 stereo jack adapter assembly connector.

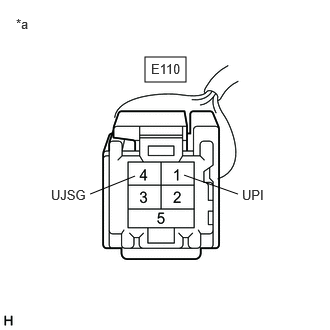

1.51,0.594 1.938,0.854 0.427,0.26 1.917,1.823 2.479,2.021 false 1.406,1.833 0.938,2.021 false 0.167,0.167 0.479,0.365 0.313,0.198 10 false *a 1.573,0.635 1.938,0.875 0.365,0.24 10 false E110 2.521,1.948 2.927,2.198 0.406,0.25 10 false UPI 0.531,1.948 1.042,2.156 0.51,0.208 10 false UJSG

*a	Front view of wire harness connector (to No. 1 Stereo Jack Adapter Assembly)

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
Click Location & Routing(E110)Location & Routingewd_type=routing;type=c;code=E110 Click Connector(E110)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 1 Stereo Jack Adapter Assemblyewd_type=component;type=c;code=E110;pinno=1,4
E110-1 (UPI) - E110-4 (UJSG)	Ignition switch ACC	4.95 to 5.25 V

Tester Connection

Condition

Specified Condition

Click Location & Routing(E110)Location & Routingewd_type=routing;type=c;code=E110

Click Connector(E110)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 1 Stereo Jack Adapter Assemblyewd_type=component;type=c;code=E110;pinno=1,4

E110-1 (UPI) - E110-4 (UJSG)

Ignition switch ACC

4.95 to 5.25 V

Result:

Proceed to
OK
NG

4.FORMAT USB DEVICE AND RECHECK

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL202409,999999,_56,_111823,_0500514,RM100000002OV73,

4.FORMAT USB DEVICE AND RECHECK

Delete all files in the USB device and format/restore it.

Save the data again and check if it can be played on the in-vehicle device.

NOTICE:: Formatting a USB device erases all music on the device. Ensure that a backup of the music data is available before performing this operation.

OK:: Malfunction disappears.

Result:

Proceed to
OK
NG

END

5.CHECK USB STORAGE DEVICE

Disconnect the USB storage device from the No. 1 stereo jack adapter assembly.

Turn the ignition switch from off to ON

HINT:: If another USB storage device is to be connected, it is necessary to turn the ignition switch off in order for the device to be detected.

Connect a known good USB storage device to the No. 1 stereo jack adapter assembly.

HINT:: When a USB storage device is used, replace it with another device and perform the inspection.

Perform the operation again and check if the problem symptom recurs.

Result:

Result	Proceed to
Malfunction disappears	A
Malfunction occurs	B

END

6.CHECK NO. 1 STEREO JACK ADAPTER ASSEMBLY

Replace the No. 1 stereo jack adapter assembly with a new or known good one.

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>STEREO JACK ADAPTER ASSEMBLY>REMOVAL202203,999999,_56,_111822,_0500661,RM10000000229JJ,

Check if the problem symptom recurs.

Result:

Result	Proceed to
Malfunction disappears	A
Malfunction occurs	B

END (NO. 1 STEREO JACK ADAPTER ASSEMBLY MALFUNCTION)

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL202409,999999,_56,_111823,_0500514,RM100000002OV73,
