The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear seat outer belt assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Auxiliary battery terminal is disconnected/reconnected | Reset back door close position | Power Back Door System | ( 202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)
|
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Auxiliary battery terminal is disconnected/reconnected | Reset back door close position | Power Back Door System | ( 202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)
|
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Lane Tracing Assist System | Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. | ( 202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
|
| Pre-collision System |
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Power Door Lock Control System
·
Back door opener |
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. | ( 202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
|
| Air Conditioning System | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Lane Tracing Assist System | Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. | ( 202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
|
| Pre-collision System | ||
| Stop and Start System | Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted | ( 202406,999999,_51,_111803,_0509671,RM100000002KOGF,)
|
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Power Door Lock Control System
·
Back door opener |
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. | ( 202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
|
| Air Conditioning System | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
1. PRECAUTION
Be sure to read Precaution thoroughly before servicing.
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
58416K
2.REMOVE REAR NO. 2 FLOOR BOARD (for HV Model)
65351A
3.REMOVE BATTERY HOLE COVER (for HV Model)
4.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
for Gasoline Model:
for HV Model:
Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
If an airbag deploys for any reason, it may cause a serious injury.
58410B
5.REMOVE DECK BOARD ASSEMBLY
58416K
6.REMOVE REAR NO. 2 FLOOR BOARD (for RH Side)
58417
7.REMOVE REAR NO. 3 FLOOR BOARD (for LH Side)
71940A
8.REMOVE REAR SEAT HEADREST ASSEMBLY
71960B
9.REMOVE REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side)
10.REMOVE REAR SEAT CUSHION ASSEMBLY
72693
11.REMOVE REAR SEAT CUSHION LOCK HOOK
for SFTM Made: for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0001,
for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0001,
73350C
12.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for RH Side)
13.REMOVE REAR SEATBACK ASSEMBLY RH (for RH Side)
14.REMOVE REAR SEATBACK ASSEMBLY LH (for LH Side)
64779
15.REMOVE SPARE WHEEL COVER TRAY
58387B
16.REMOVE REAR FLOOR FINISH PLATE
58577E
17.REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE
67918A
18.REMOVE REAR DOOR SCUFF PLATE
58467H
19.REMOVE NO. 3 BATTERY SERVICE COVER BOARD (for HV Model)
62332C
20.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP
Disconnect the rear door opening trim weatherstrip.
73706
21.REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY
71304C
22.REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY
62552F
23.REMOVE REAR SEAT SIDE GARNISH
64740C
24.REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)
81330
25.REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)
65351A
26.REMOVE BATTERY HOLE COVER (for RH Side)
64730B
27.REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)
62480A
28.REMOVE ROOF SIDE INNER GARNISH ASSEMBLY
29.REMOVE REAR SEAT OUTER BELT ASSEMBLY WITH BRACKET

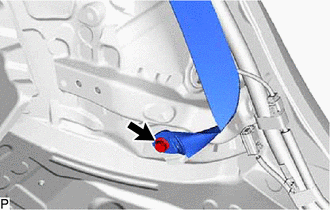

Remove the bolt to disconnect the floor anchor of the rear seat outer belt assembly.

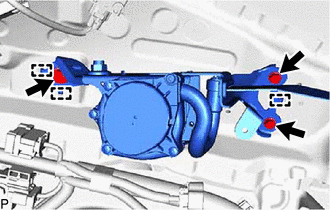

Remove the 3 bolts.
Disengage the 3 guides to remove the rear seat outer belt assembly with bracket.
73370E
30.REMOVE REAR SEAT OUTER BELT ASSEMBLY
Hold the rear seat outer belt assembly with bracket in a vise between aluminum plates.
Do not overtighten the vise.

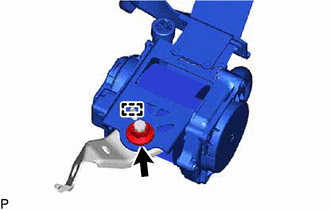

Remove the nut.
Disengage the guide to remove the rear seat outer belt assembly from the outer belt anchor bracket sub-assembly.
