RM38N0EC _51 Engine / Hybrid System _111793 M20C-FKS, M20D-FKS FUEL _0504177 FUEL FILTER A

M20C-FKS, M20D-FKS FUEL  FUEL FILTER  REPLACEMENT


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel filter removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)

CAUTION:
·
A360563

Never perform work on fuel system components near any possible ignition sources.

·

Vaporized fuel could ignite, resulting in a serious accident.

·
A360564

Do not perform work on fuel system components without first disconnecting the cable from the negative (-) battery terminal.

·

Sparks could cause vaporized fuel to ignite, resulting in a serious accident.



NOTICE:
A448347C01
2.031,1.271 2.615,0.958 2.615,0.958 2.854,0.958 true 2.885,0.865 3.198,1.063 0.313,0.198 10 false *a
*a Tube


Do not disconnect the tube shown in the illustration when disassembling the fuel suction tube with pump and gauge assembly. Doing so will cause reassembly of the fuel suction tube with pump and gauge assembly to be impossible as the tube is pressed into the fuel suction plate sub-assembly.


HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. (Click here)
Pre-collision System
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


PROCEDURE

Hide 77103 3.REMOVE FUEL FILTER (FUEL SUB-TANK SUB-ASSEMBLY)

a.
A454648

Disengage the 2 claws, 2 clamps and disconnect the fuel suction tube from the fuel filter (fuel sub-tank sub-assembly).


b.
A454649

Remove the O-ring from the fuel filter (fuel sub-tank sub-assembly).


c.
A454650

Disengage the 4 claws and disconnect the fuel pump from the fuel filter (fuel sub-tank sub-assembly).


d.

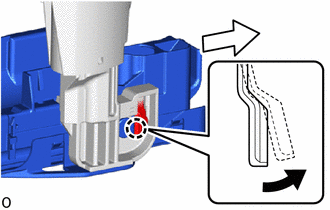

A436276C01
0,0 0,0 false
V100135

Pull
V100136

Slide


Disengage the claw and slide the fuel filter (fuel sub-tank sub-assembly) and remove it from the fuel suction plate sub-assembly.


Hide 77103 4.INSTALL FUEL FILTER (FUEL SUB-TANK SUB-ASSEMBLY)

a.

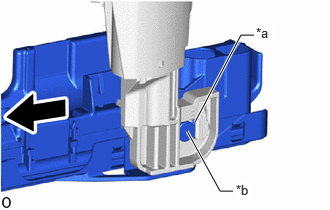

A436277C01
2.427,1.99 2.292,1.99 2.292,1.99 1.948,1.365 true 2.646,0.365 2.51,0.365 2.51,0.365 2.031,1.271 true 2.667,0.26 2.854,0.427 0.188,0.167 10 true *a 2.458,1.896 2.625,2.073 0.167,0.177 10 true *b
*a Installation Hole
*b Protrusion
V100135

Slide


Align the protrusion of the fuel filter (fuel sub-tank sub-assembly) with the installation hole of the fuel suction plate sub-assembly and slide the fuel filter (fuel sub-tank sub-assembly) to install it to the fuel suction plate sub-assembly.


b.

Engage the 4 claws to connect the fuel pump to the fuel filter (fuel sub-tank sub-assembly).


c.
A454651

Apply gasoline to a new O-ring. Then install the O-ring to the No. 1 housing sub-assembly.


d.

Engage the 2 claws, 2 clamps to connect the fuel suction tube to the fuel filter (fuel sub-tank sub-assembly).
