M20C-FKS, M20D-FKS FUEL FUEL INJECTOR(for Port Injection) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during port fuel injector assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Battery terminal is disconnected/reconnected	Reset back door close position	Power Back Door System	(202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)
· Replacement of port fuel injector assembly · Replacement of No. 2 fuel pressure sensor · Replacement of EGR valve assembly · Gas leak from exhaust system is repaired	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(202303,999999,_51,_111785,_0504416,RM1000000029BFF,)

CAUTION:: ·

Never perform work on fuel system components near any possible ignition sources.

·

Vaporized fuel could ignite, resulting in a serious accident.

·

Do not perform work on fuel system components without first disconnecting the cable from the negative (-) battery terminal.

·

Sparks could cause vaporized fuel to ignite, resulting in a serious accident.

NOTICE:: ·

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION202111,999999,_V1,_111779,_0504973,RM100000001ZKRM,

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Lane Tracing Assist System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more.	(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System		(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(202406,999999,_51,_111803,_0509671,RM100000002KOGF,)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Door Lock Control System · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

Hide Display 89458H 1.REMOVE NO. 2 FUEL PRESSURE SENSOR

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (FUEL)>FUEL PRESSURE SENSOR>REMOVAL202406,999999,_51,_111793,_0504179,RM100000002MUMA,

Hide Display 23910A 2.DISCONNECT FUEL TUBE SUB-ASSEMBLY

Remove the fuel pipe clamp from the fuel tube connector.

Disconnect the fuel tube sub-assembly from the fuel delivery pipe sub-assembly.

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (FUEL)>FUEL SYSTEM>PRECAUTION202111,999999,_51,_111793,_0504174,RM100000001ZHDE,

Hide Display 23807 3.REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY

Disconnect the No. 5 engine wire connector.

Remove the 2 bolts and fuel delivery pipe sub-assembly with the 4 port fuel injector assemblies from the cylinder head sub-assembly.

NOTICE:: ·

If fuel intrudes into the combustion chamber, there may be adverse effects to the engine main body.

·

Be careful not to drop the port fuel injector assemblies when removing the fuel delivery pipe sub-assembly.

Hide Display 23891 4.REMOVE FUEL DELIVERY SPACER

Remove the 2 fuel delivery spacers from the cylinder head sub-assembly.

Hide Display 23291 5.REMOVE INJECTOR VIBRATION INSULATOR

Remove the 4 injector vibration insulators from the cylinder head sub-assembly.

Hide Display 82125N 6.REMOVE NO. 5 ENGINE WIRE

Disconnect the 4 port fuel injector assembly connectors.

Disengage the 2 clamps to remove the No. 5 engine wire from the fuel delivery pipe sub-assembly.

Hide Display 23250F 7.REMOVE PORT FUEL INJECTOR ASSEMBLY

Pull the 4 port fuel injector assemblies out of the fuel delivery pipe sub-assembly.

Remove the O-ring from each port fuel injector assembly.

2,0.417 2.771,0.615 0.771,0.198 10 false No. 1

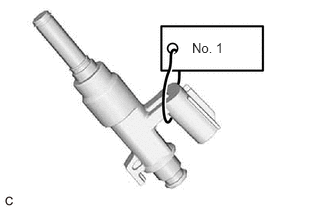

Attach a tag or label with the corresponding cylinder number to each port fuel injector assembly so that they can be installed to their original locations.

NOTICE:: Cover the port fuel injector assemblies with plastic bags to prevent damage and contamination.
