DOOR / HATCH  REAR DOOR  DISASSEMBLY


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear door disassembly/reassembly are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

Auxiliary battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)
·

Rear door window regulator sub-assembly LH*

·

Rear door window regulator sub-assembly RH*

·

Rear door glass sub-assembly LH*

·

Rear door glass sub-assembly RH*

·

Rear door glass run LH*

·

Rear door glass run RH*


Initialize power window control system
·

Auto up and down function

·

Jam protection function

·

Catch protection function

·

Remote control function

·

Wireless transmitter-linked function

·

Key-linked function

·

Key-off operation function

·

Window open warning function


(Click here)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane Tracing Assist System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. (Click here)
Pre-collision System

Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

Auxiliary battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)
·

Rear door window regulator sub-assembly LH*

·

Rear door window regulator sub-assembly RH*

·

Rear door glass sub-assembly LH*

·

Rear door glass sub-assembly RH*

·

Rear door glass run LH*

·

Rear door glass run RH*


Initialize power window control system
·

Auto up and down function

·

Jam protection function

·

Catch protection function

·

Remote control function

·

Wireless transmitter-linked function

·

Key-linked function

·

Key-off operation function

·

Window open warning function


(Click here)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. (Click here)
Pre-collision System
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)

Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -

·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 69278C 5.REMOVE REAR DOOR INSIDE HANDLE BEZEL

a.
B629147

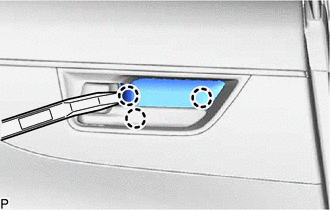

Using a moulding remover, disengage the 3 claws to remove the rear door inside handle bezel.


Hide 74222C 6.REMOVE REAR DOOR ARMREST COVER

a.
B629149

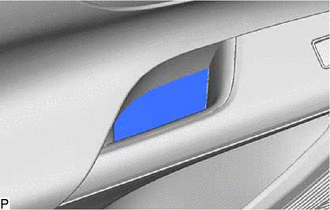

Remove the rear door armrest cover.


Hide 67604 7.REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

a.
B629150

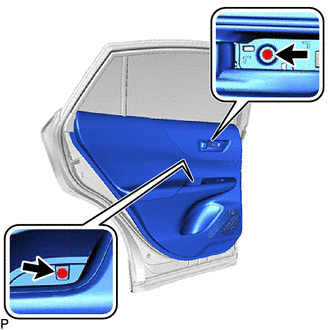

Remove the 2 screws.


b.

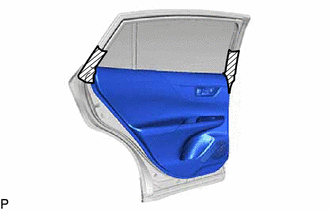

B629151C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape to the rear door panel as shown in the illustration.


c.

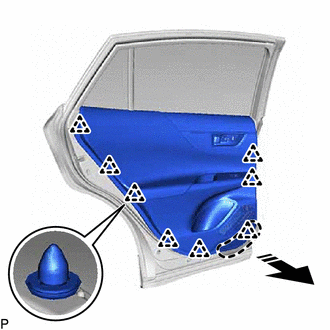

B629152C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Disengage the 8 clips as shown in the illustration.


d.
B629156

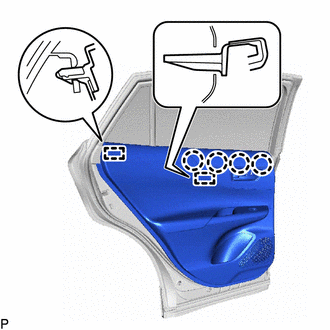

Disengage the 4 claws and 2 guides.


e.
B629157C01
1.969,0.604 2.802,0.49 true 1.563,1.063 1.875,0.792 true 2.833,0.396 3.052,0.573 0.219,0.177 10 true *1 1.323,0.99 1.542,1.177 0.219,0.188 10 true *2

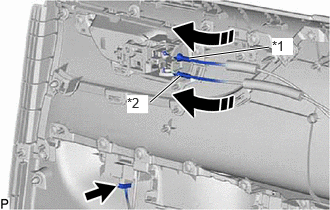

*1 Rear Door Inside Locking Cable Assembly
*2 Rear Door Lock Remote Control Cable Assembly
V113147

Remove in this Direction


Disconnect the connector.


f.

Disconnect the rear door lock remote control cable assembly and rear door inside locking cable assembly as shown in the illustration to remove the rear door trim board sub-assembly.


Hide 8.REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

a.
B629159

Remove the 10 screws.


b.

Disengage the 2 claws to remove the rear power window regulator switch assembly with rear door armrest base panel.


Hide 69206C 9.REMOVE REAR DOOR INSIDE HANDLE SUB-ASSEMBLY

a.
B629160C01
0,0 0,0 false
V113147

Remove in this Direction

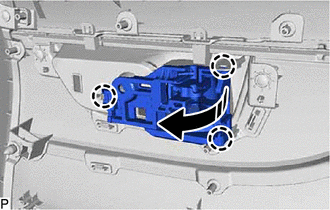

Disengage the 3 claws to remove the rear door inside handle sub-assembly as shown in the illustration.


Hide 68174A 10.REMOVE REAR DOOR INNER GLASS WEATHERSTRIP

a.
B629162C01
0,0 0,0 false
V100155

Protective Tape

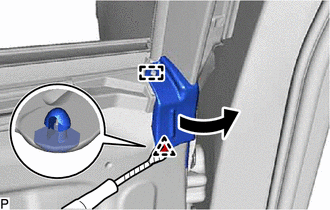

Using a clip remover with its tip wrapped with protective tape, disengage the clip.


b.

Disengage the guide and disconnect the rear door weatherstrip as shown in the illustration.


c.
B629164C01
0,0 0,0 false
V113147

Remove in this Direction

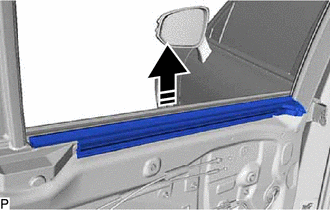

Remove the rear door inner glass weatherstrip with rear door front belt seal as shown in the illustration.


Hide 68197A 11.REMOVE REAR DOOR FRONT BELT SEAL

a.
B629166C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the rear door front belt seal from the rear door inner glass weatherstrip as shown in the illustration.


Hide 68199 12.REMOVE REAR DOOR REAR BELT SEAL

a.
B629168C01
0,0 0,0 false
V100155

Protective Tape

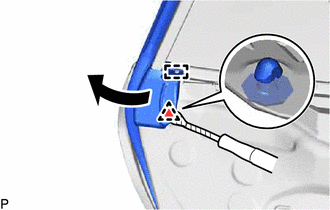

Using a clip remover with its tip wrapped with protective tape, disengage the clip.


b.

Disengage the guide and disconnect the rear door weatherstrip as shown in the illustration.


c.
B629170C01
0,0 0,0 false
V113147

Remove in this Direction

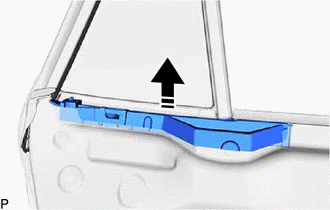

Remove the rear door rear belt seal as shown in the illustration.


Hide 67842E 14.REMOVE REAR DOOR SERVICE HOLE COVER

a.

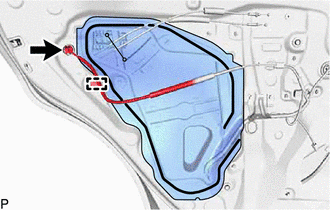

B629172

Disconnect the connector.


b.

Disengage the clamp.


c.
B629173

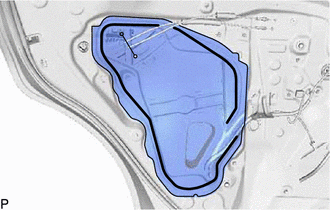

Remove the rear door service hole cover.

HINT:

Remove any remaining butyl tape from the door.



Hide 67674A 15.REMOVE REAR DOOR FRAME GARNISH

a.
B629175

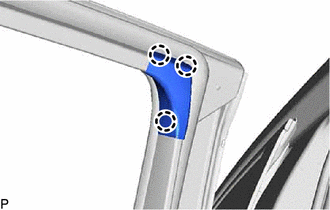

Disengage the 3 claws to remove the rear door frame garnish.


Hide 68152C 16.REMOVE REAR DOOR GLASS RUN

a.
B629176

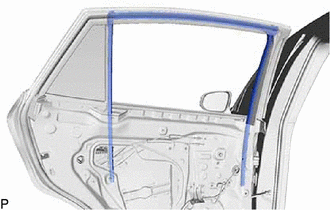

Remove the rear door glass run.


Hide 67408E 17.REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

a.

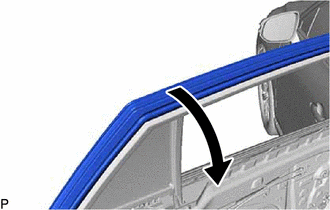

B629177

Lift up the rear door weatherstrip as shown in the illustration.


b.
B629178

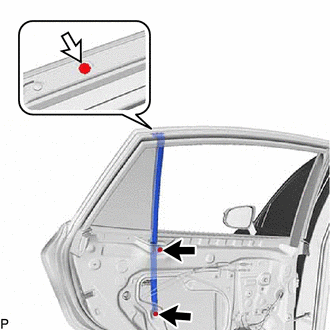

Remove the 2 bolts, screw and rear door window division bar sub-assembly.


Hide 68124B 18.REMOVE REAR DOOR QUARTER WINDOW GLASS

a.
B629179C01
0,0 0,0 false
V113147

Remove in this Direction

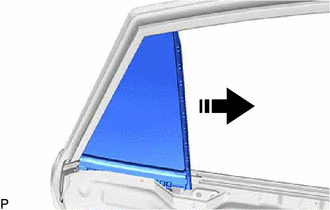

Remove the rear door quarter window glass as shown in the illustration.


Hide 68189 19.REMOVE REAR DOOR QUARTER WINDOW WEATHERSTRIP

a.
B629181

Remove the rear door quarter window weatherstrip from the rear door quarter window glass.


Hide 20.REMOVE HOLE PLUG

a.
B629182

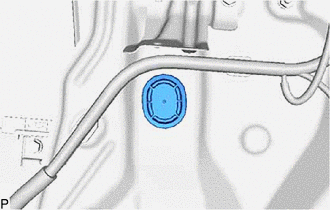

Remove the hole plug.


Hide 68104 21.REMOVE REAR DOOR GLASS SUB-ASSEMBLY

a.

Connect the rear power window regulator switch assembly.


b.

Connect the cable to the negative (-) auxiliary battery terminal.


c.

Turn the ignition switch to ON.


d.

Move the rear door glass sub-assembly so that the door glass bolts can be seen.


e.

Turn the ignition switch off.


f.

Disconnect the cable from the negative (-) auxiliary battery terminal.


g.

Disconnect the rear power window regulator switch assembly.


h.
B629183

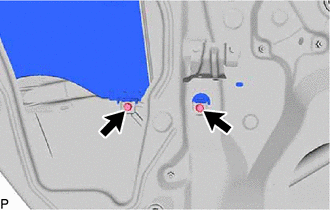

Remove the 2 bolts.

NOTICE:

After the bolts are removed, do not allow the rear door glass sub-assembly to fall.



i.
B629184C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the rear door glass sub-assembly as shown in the illustration.

NOTICE:

Do not damage the rear door glass sub-assembly.



Hide 22.REMOVE REAR DOOR WINDOW REGULATOR ASSEMBLY

a.
B629186

Disconnect the connector.


b.

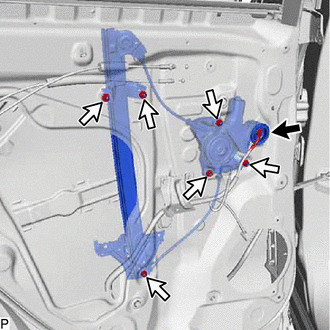

Remove the 6 nuts and rear door window regulator assembly.


Hide 69240 24.REMOVE REAR DOOR OUTSIDE HANDLE ASSEMBLY

a.

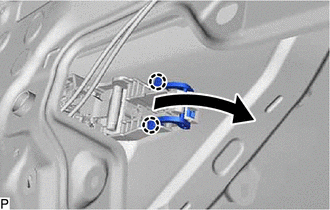

B629188

Disengage the 2 claws and move the lever as shown in the illustration.


b.
B629190C01
0,0 0,0 false
V113147

Remove in this Direction

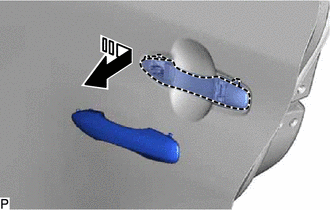

Remove the rear door outside handle assembly as shown in the illustration.


Hide 69227M 25.REMOVE REAR DOOR OUTSIDE HANDLE COVER

a.
B629192

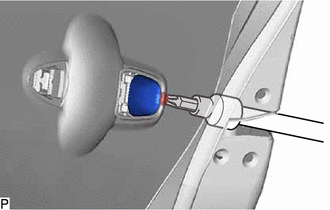

Using a T30 "TORX" socket wrench, loosen the screw.

HINT:

The screw cannot be removed because it is integrated into the rear door outside handle frame sub-assembly.



b.
B629193

Disengage the 2 claws to remove the rear door outside handle cover.


Hide 69241G 26.REMOVE REAR DOOR FRONT OUTSIDE HANDLE PAD

a.
B629194

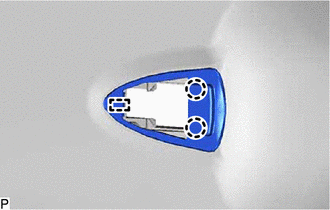

Disengage the 2 claws and guide to remove the rear door front outside handle pad.


Hide 69242G 27.REMOVE REAR DOOR REAR OUTSIDE HANDLE PAD

a.
B629195

Disengage the 4 guides to remove the rear door rear outside handle pad.


Hide 69204A 28.REMOVE REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY

a.
B629196

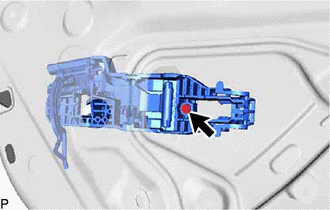

Using a T30 "TORX" socket wrench, remove the screw.


b.
B629197C01
0,0 0,0 false
V113147

Remove in this Direction

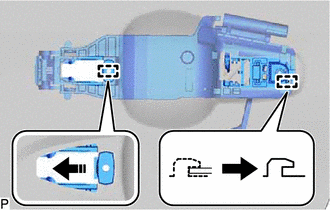

Disengage the 2 guides to remove the rear door outside handle frame sub-assembly as shown in the illustration.


Hide 68630 29.REMOVE REAR DOOR CHECK ASSEMBLY

a.
B629199C01
0,0 0,0 false
V100135

Bolt (A)
V100136

Bolt (B)

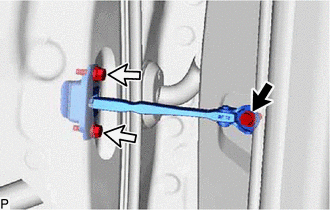

Remove the bolt (A), 2 bolts (B) and rear door check assembly.


Hide 67872 30.REMOVE REAR DOOR WEATHERSTRIP

a.
B629201C01
0,0 0,0 false
V100155

Protective Tape

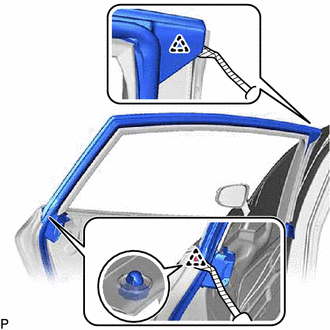

Using a clip remover with its tip wrapped with protective tape, disengage the 2 clips.


b.
B629202

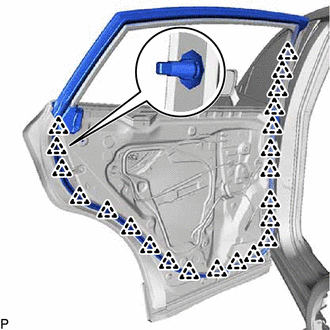

Using a clip remover with its tip wrapped with protective tape, disengage the 22 clips and remove the rear door weatherstrip.


Hide 67874C 31.REMOVE REAR DOOR NO. 5 WEATHERSTRIP

a.
B641192C01
0,0 0,0 false
V100155

Protective Tape

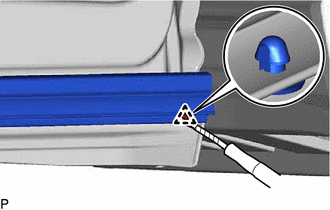

Using a clip remover with its tip wrapped with protective tape, disengage the clip.


b.
B629204

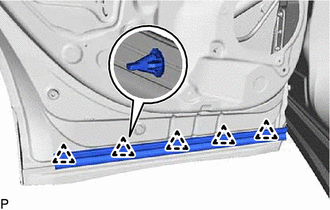

Disengage the 5 clips to remove the rear door No. 5 weatherstrip.


Hide 75792 32.REMOVE DOOR WINDOW FRAME MOULDING CLIP

a.
B629205

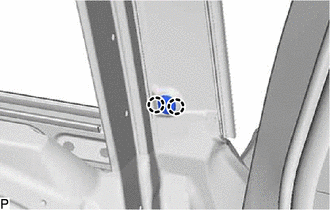

Disengage the 2 claws to remove the door window frame moulding clip.


Hide 67836D 33.REMOVE REAR DOOR LOCK CHILD PROTECTION COVER

a.
B629206

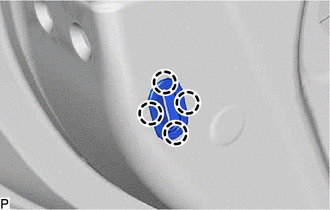

Disengage the 4 claws to remove the rear door lock child protection cover.


Hide 67003C 34.REMOVE REAR DOOR PANEL CUSHION

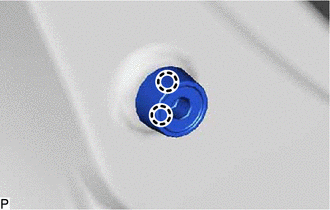

a.
B629207

Disengage the 2 claws to remove the rear door panel cushion.


Hide 67846A 44.REMOVE REAR DOOR FRONT OUTSIDE SEAL

a.
B629208

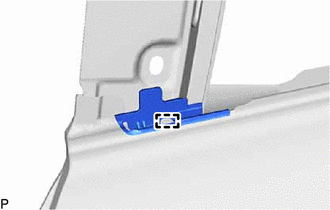

Disengage the guide to remove the rear door front outside seal.
