The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear door lock with motor assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. |
|||
| Auxiliary battery terminal is disconnected/reconnected | Reset back door close position | Power Back Door System | ( 202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)
|
·
Power window regulator motor assembly LH ·
Power window regulator motor assembly RH ·
Rear door window regulator sub-assembly LH* ·
Rear door window regulator sub-assembly RH* ·
Rear door glass sub-assembly LH* ·
Rear door glass sub-assembly RH* ·
Rear door glass run LH* ·
Rear door glass run RH* |
Initialize power window control system | ·
Auto up and down function ·
Jam protection function ·
Catch protection function ·
Remote control function ·
Wireless transmitter-linked function ·
Key-linked function ·
Key-off operation function ·
Window open warning function |
( 202111,999999,_59,_111844,_0505692,RM100000001ZOBP,)
|
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. |
|||
| Auxiliary battery terminal is disconnected/reconnected | Reset back door close position | Power Back Door System | ( 202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)
|
·
Power window regulator motor assembly LH ·
Power window regulator motor assembly RH ·
Rear door window regulator sub-assembly LH* ·
Rear door window regulator sub-assembly RH* ·
Rear door glass sub-assembly LH* ·
Rear door glass sub-assembly RH* ·
Rear door glass run LH* ·
Rear door glass run RH* |
Initialize power window control system | ·
Auto up and down function ·
Jam protection function ·
Catch protection function ·
Remote control function ·
Wireless transmitter-linked function ·
Key-linked function ·
Key-off operation function ·
Window open warning function |
( 202111,999999,_59,_111844,_0505692,RM100000001ZOBP,)
|
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Lane Tracing Assist System | Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. | ( 202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
|
| Pre-collision System |
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Power Door Lock Control System
·
Back door opener |
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. | ( 202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
|
| Air Conditioning System | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Lane Tracing Assist System | Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. | ( 202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
|
| Pre-collision System | ||
| Stop and Start System | Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted | ( 202406,999999,_51,_111803,_0509671,RM100000002KOGF,)
|
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Power Door Lock Control System
·
Back door opener |
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. | ( 202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
|
| Air Conditioning System | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
1. PRECAUTION
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
58416K
2.REMOVE REAR NO. 2 FLOOR BOARD (for HV Model)
65351A
3.REMOVE BATTERY HOLE COVER (for HV Model)
4.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
for M20C-FKS, M20D-FKS:
for A25D-FXS, A25F-FXS:
69278C
5.REMOVE REAR DOOR INSIDE HANDLE BEZEL
74222C
6.REMOVE REAR DOOR ARMREST COVER
67604
7.REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
68174A
8.REMOVE REAR DOOR INNER GLASS WEATHERSTRIP
68199
9.REMOVE REAR DOOR REAR BELT SEAL
67842E
10.REMOVE REAR DOOR SERVICE HOLE COVER
68152C
11.REMOVE REAR DOOR GLASS RUN
67408E
12.REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY
68124B
13.REMOVE REAR DOOR QUARTER WINDOW GLASS
14.REMOVE HOLE PLUG
68104
15.REMOVE REAR DOOR GLASS SUB-ASSEMBLY
69060A
16.REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY
| *a | Release Plate |
|
Remove in this Direction |

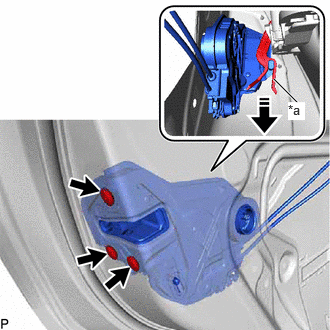

Using a T30 "TORX" socket wrench, remove the 3 screws.
Move the rear door lock with motor assembly downward as shown in the illustration to disconnect it from the release plate of the rear door outside handle frame sub-assembly, and remove the rear door lock with motor assembly.
When reusing the rear door lock with motor assembly:

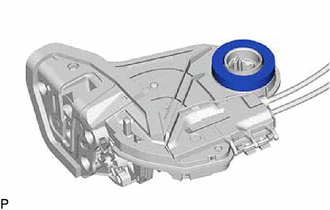

Remove the door lock wiring harness seal from the rear door lock with motor assembly.
69038A
17.REMOVE REAR DOOR LOCK COVER SUB-ASSEMBLY
| *a | Protective Tape |
|
Remove in this Direction |

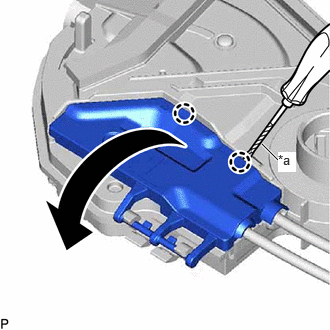

Using a screwdriver, disengage the 2 claws as shown in the illustration.
Tape the screwdriver tip before use.
Disengage the 2 claws to remove the rear door lock cover sub-assembly.
69730M
18.REMOVE REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY

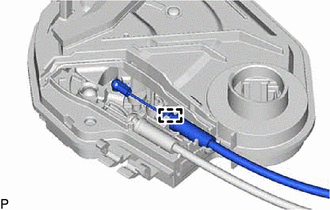

Disengage the clamp to remove the rear door lock remote control cable assembly.
69770E
19.REMOVE REAR DOOR INSIDE LOCKING CABLE ASSEMBLY

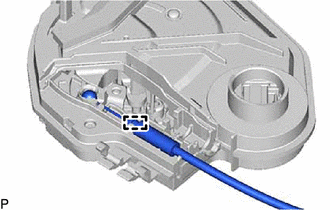

Disengage the clamp to remove the rear door inside locking cable assembly.
