RM38N0EC _58 Vehicle Interior _111832 THEFT DETERRENT / KEYLESS ENTRY _0501281 ELECTRICAL KEY OSCILLATOR(for Luggage Compartment) A

THEFT DETERRENT / KEYLESS ENTRY  ELECTRICAL KEY OSCILLATOR(for Luggage Compartment)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during No. 3 indoor electrical key antenna assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link
Auxiliary battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.


HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane Tracing Assist System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. (Click here)
Pre-collision System

Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Auxiliary battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.


HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision System
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)

Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


PROCEDURE

Hide 6.SEPARATE REAR SEATBACK BOARD CARPET ASSEMBLY LH (for SFTM Made)

a.

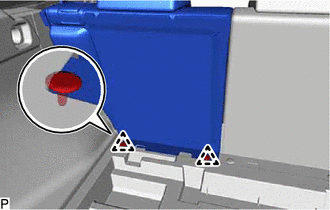

B629042

Using a clip remover, disengage the 2 clips and turn back the rear seatback board carpet assembly LH.


b.

Remove the 2 clips from the rear seatback board carpet assembly LH.

NOTICE:

Do not reuse the removed clip.



Hide 7.SEPARATE REAR SEATBACK BOARD CARPET ASSEMBLY LH (for GTMC Made)

a.

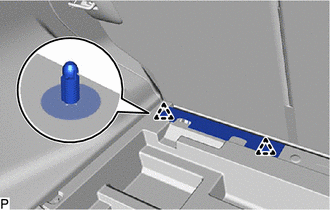

B588702

Using a clip remover, disengage the 2 clips and turn back the rear seatback board carpet assembly LH.


Hide 8.SEPARATE REAR SEATBACK BOARD CARPET ASSEMBLY RH (for SFTM Made)

a.

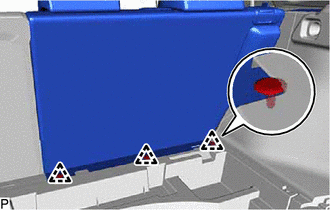

B629043

Using a clip remover, disengage the 3 clips and turn back the rear seatback board carpet assembly RH.


b.

Remove the 3 clips from the rear seatback board carpet assembly RH.

NOTICE:

Do not reuse the removed clip.



Hide 9.SEPARATE REAR SEATBACK BOARD CARPET ASSEMBLY RH (for GTMC Made)

a.
B588701

Using a clip remover, disengage the 3 clips and turn back the rear seatback board carpet assembly RH.


Hide 899A0B 11.REMOVE NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

a.

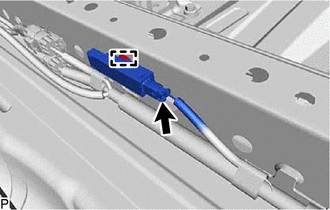

B629044

Disengage the clamp.


b.

Disconnect the connector to remove the No. 3 indoor electrical key antenna assembly.

NOTICE:

Be careful when removing the No. 3 indoor electrical key antenna assembly. If the No. 3 indoor electrical key antenna assembly is dropped, replace it with a new one.
